Typography¶
Note: The Siemens font is part of the Siemens branding and cannot be used for none Siemens applications. Element comes with a default font that is not part of the Siemens branding. The default theme is not documented.
Typographic hierarchy is defined by text size and color. Each style can use color variants if necessary.
Usage¶
For a cohesive typography experience, Element's type scale uses the Siemens Sans typeface. Hierarchy is communicated through differences in font weight (Roman/Regular and Bold) and size.
Best practices¶
- Respect the typographic scale order for consistent and hierarchical design.
- Consider the purpose and context of the text when selecting a type style. Headings, subheadings, and body text each serve distinct functions and should be chosen accordingly.
- Combine font weight, size, and color to establish hierarchy, utilizing lighter colors or smaller font sizes to de-emphasize secondary content.
Design¶
Element defines 9 different type styles. It follows the HTML semantic, while omitting the H4, H5 and H6 heading to reduce visual complexity of titles within an application.
Type scale¶
Line heights are computed using font-size + 1/8rem (used in buttons, navigation, tables…).
| Type | Size (rem) | Line Height (rem) | Family | Style |
|---|---|---|---|---|
| Data Callout | 3 | 3.125 | Siemens Sans | Roman |
| H1 Heading | 1.85 | 2 | Siemens Sans | Roman |
| H1 Heading Black | 1.85 | 2 | Siemens Sans | Black |
| H2 Subheading | 1.25 | 1.5 | Siemens Sans | Roman |
| H3 Subheading | 1.125 | 1.25 | Siemens Sans | Bold |
| Title 1 | 1 | 1.125 | Siemens Sans | Bold |
| Body 1 | 1 | 1.125 | Siemens Sans | Roman |
| Title 2 | 0.875 | 1 | Siemens Sans | Bold |
| Body 2 | 0.875 | 1 | Siemens Sans | Roman |
| Caption | 0.75 | 1 | Siemens Sans | Roman |
| Display 1 | 3.5 | 4.5 | Siemens Sans | Roman |
| Display 2 | 3 | 4 | Siemens Sans | Roman |
| Display 3 | 2.5 | 3.25 | Siemens Sans | Black |
| Display 4 | 2.5 | 3.25 | Siemens Sans | Roman |
Type Style Font Sizes
All font sizes are defined in rem (the root em size) based on the root element size. The Element Design System defines 1 rem as 16 px while also applying this fixed conversion ratio within the implementation.

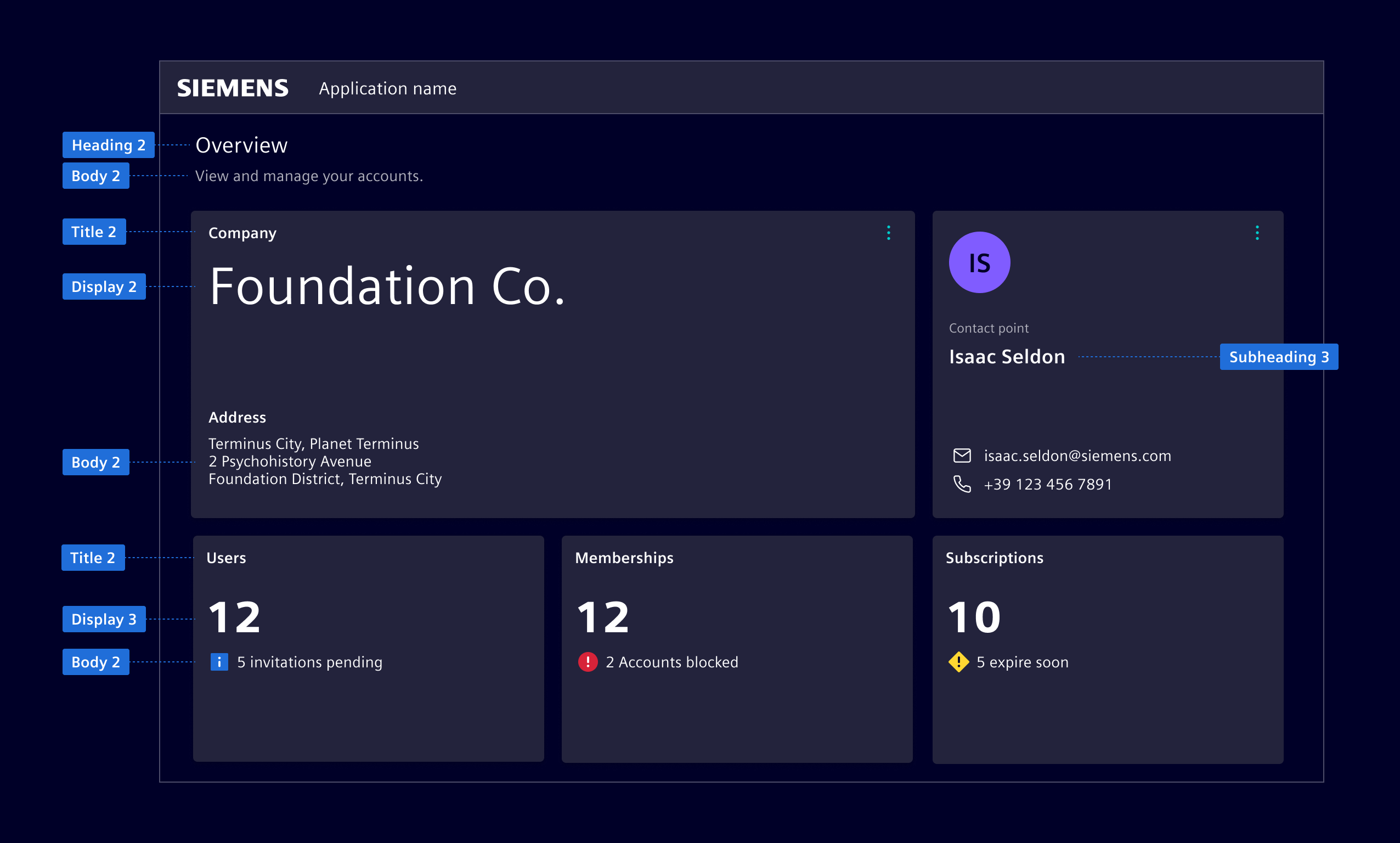

Applying the type scale¶
- Choose Heading 1 or Heading 2 as the main title based on spacing requirements. If using Heading 1, follow it with Heading 2 for major section titles.
- H3 subheading serves as a secondary heading.
- Title 1 and Title 2 are used for cards or less important section titles.

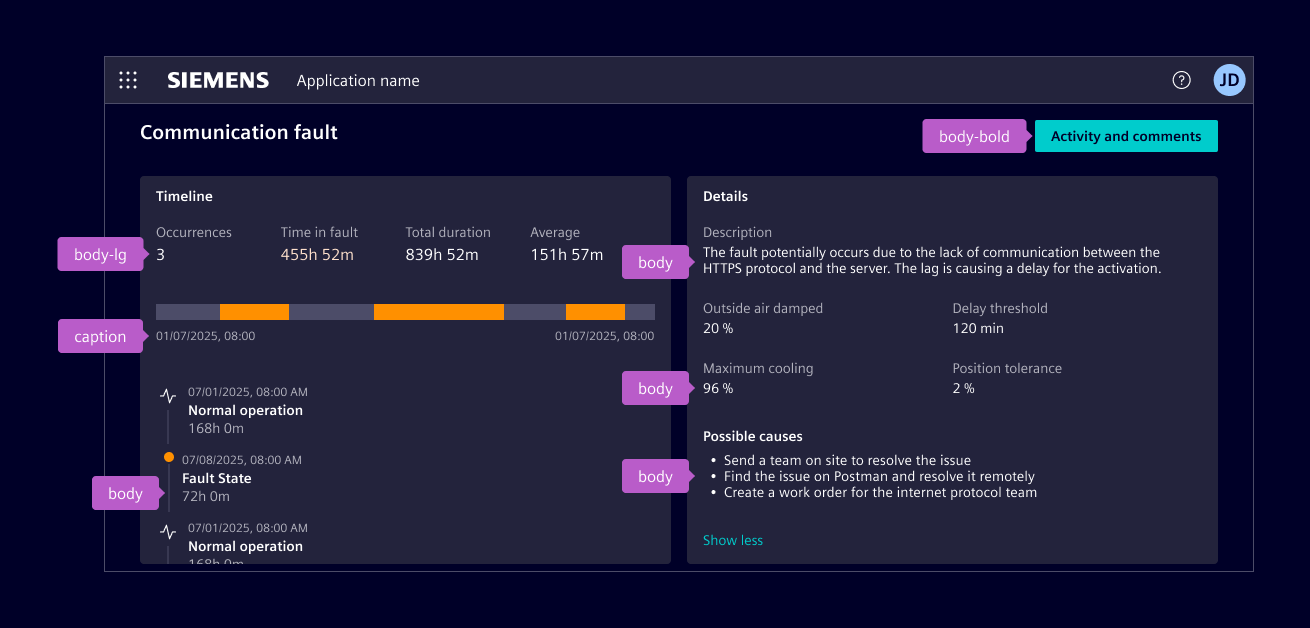

- Use body styles within components and text blocks, with Body 2 as the default.
- Use Caption for small, supplementary text providing additional context.

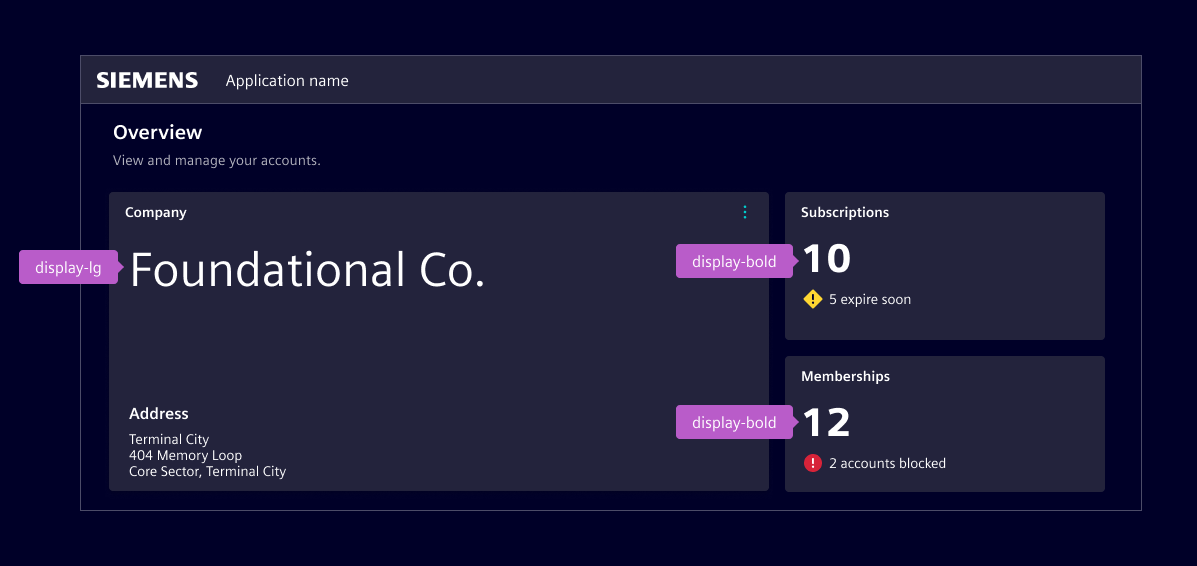

- Use Display styles in widgets, key visual elements, hero sections or any area where more prominence is required.

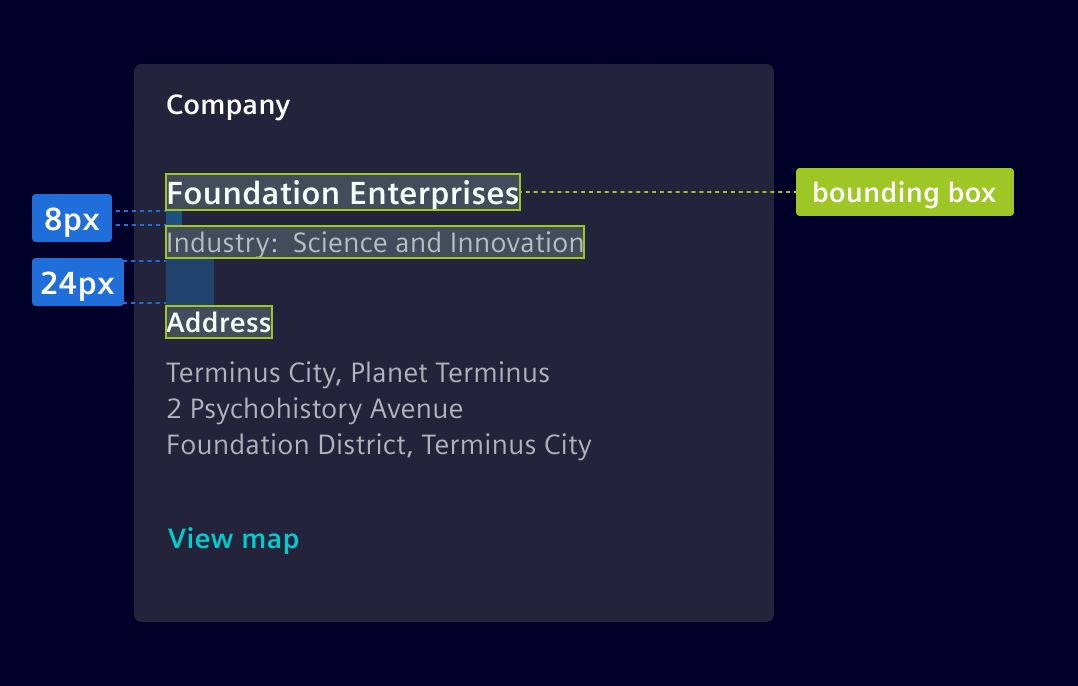

Using the bounding box¶
The vertical height of the text, known as the bounding box, is determined by the line-height. The value of the line-height is critical to make sure text aligns to the 8px grid.
Use the height of the bounding box together with top and bottom margin to determine spacing.

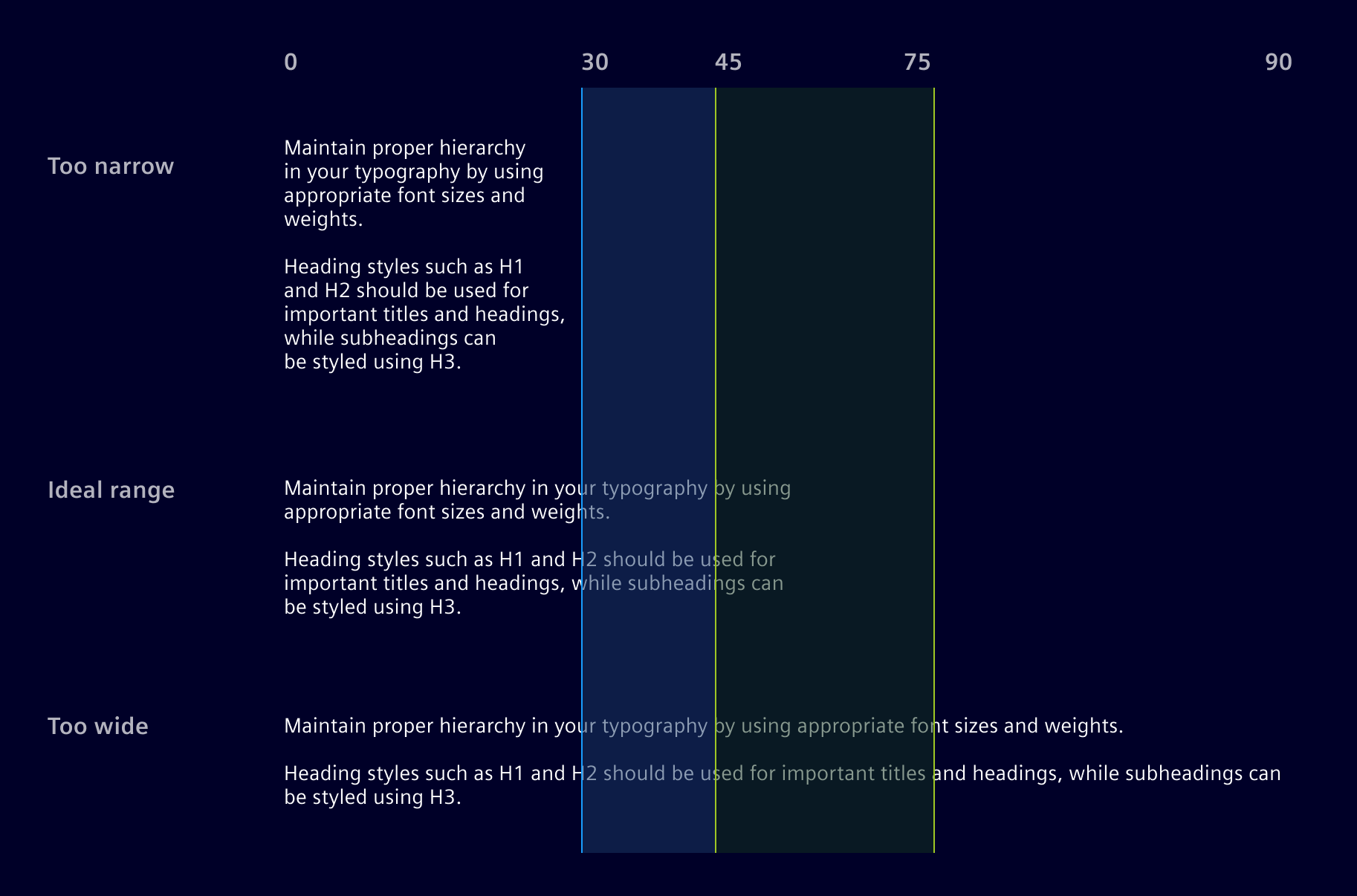

Line length¶
Wide lines of text are harder to read; aim for 45-75 characters per line on desktop, and 30-45 on mobile for optimal readability.
Color usage¶
Color is used in text to communicate information to the user. Color variants have meaning and are used to call attention to an action. The color of text must follow one of the predefined color variants and must not use any of the other defined colors.
See the Text Colors chapter.
Code¶
Type Styles Classes¶
Implementation of typography is done via Bootstrap's typography system. Mosts scenarios allow you to use the HTML semantic (e.g. h1, p) directly, all the required styles are set by default.
In case you can't use the HTML semantic (e.g. apply a text style to a non associated HTML tag) or you have to use a type style without matching semantic, you can use the .si- text classes.
Display Styles Classes¶
The display styles are provided as si-display-{1,2,3,4} and are mapped to the related Bootstrap classes.
Typography Specification¶
All font-sizes, line-heights and font-weights are specified as SASS variables, which can be used if required. The variables come in the form of $si-font-size-[name], $si-line-height-[name], $si-font-weight-[name] and are defined in _typography.scss.
@use '@siemens/element-theme/src/styles/variables';
font-size: variables.$si-font-size-h1;
line-height: variables.$si-line-height-h1;
font-weight: variables.$si-font-weight-h1;
We use the specifications for defining the style CSS classes and for configuring Bootstrap's typography system.
Color Variants Classes¶
Changing the color of a text can be done using bootstraps utility classes, without the need to of any custom SASS styling and is recommended in most cases. The default text color is applied automatically and only has to be defined, if a higher level component overwrites it.
All color variants can also be applied alternatively using SASS. It is heavily recommended to use the contextual colors for this:
@use '@siemens/element-theme/src/styles/variables';
color: variables.$element-text-primary;
color: variables.$element-text-secondary;
color: variables.$element-text-disabled;
color: variables.$element-text-active;
background-color: variables.$element-base-warning;
background-color: variables.$element-base-danger;
color: variables.$element-status-danger-contrast;
background-color: variables.$element-status-danger;
See _semantic-tokens.
Bootstrap Typography Utilities¶
Further typographical styling can be done using Bootstrap's wide range of font and text utility classes. They closely follow the HTML semantic and can be used without any additional styling.
