Grid¶

Usage¶

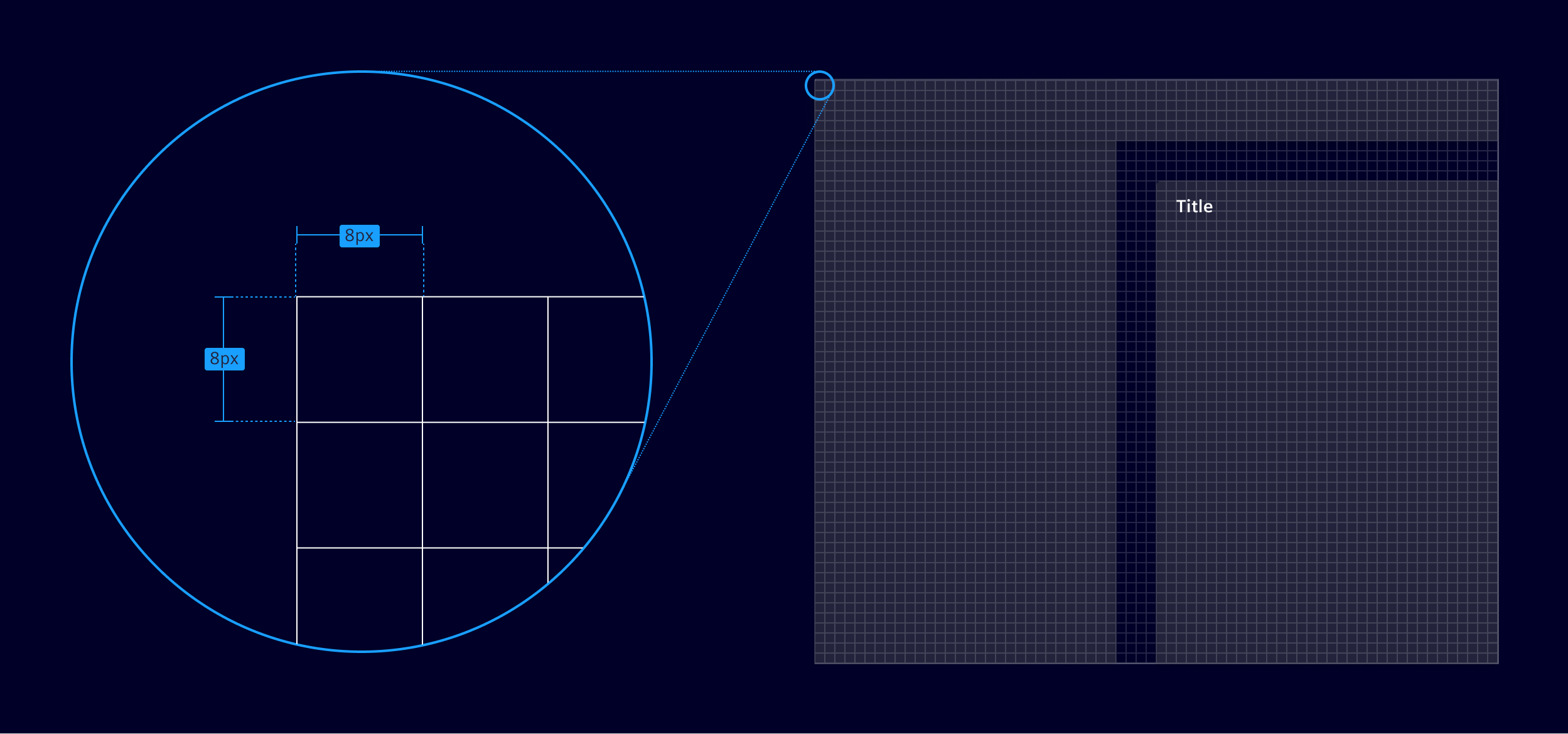

Baseline grid¶

Layouts use a 8px grid that is used to dictate the placement of nearly all elements within the UI. If needed, it is possible to use a 4px grid to smaller adjustments.

Breakpoints¶

Element uses breakpoints. Not all breakpoints need to be defined; reference them only when design adjustments are required within specific breakpoint ranges.

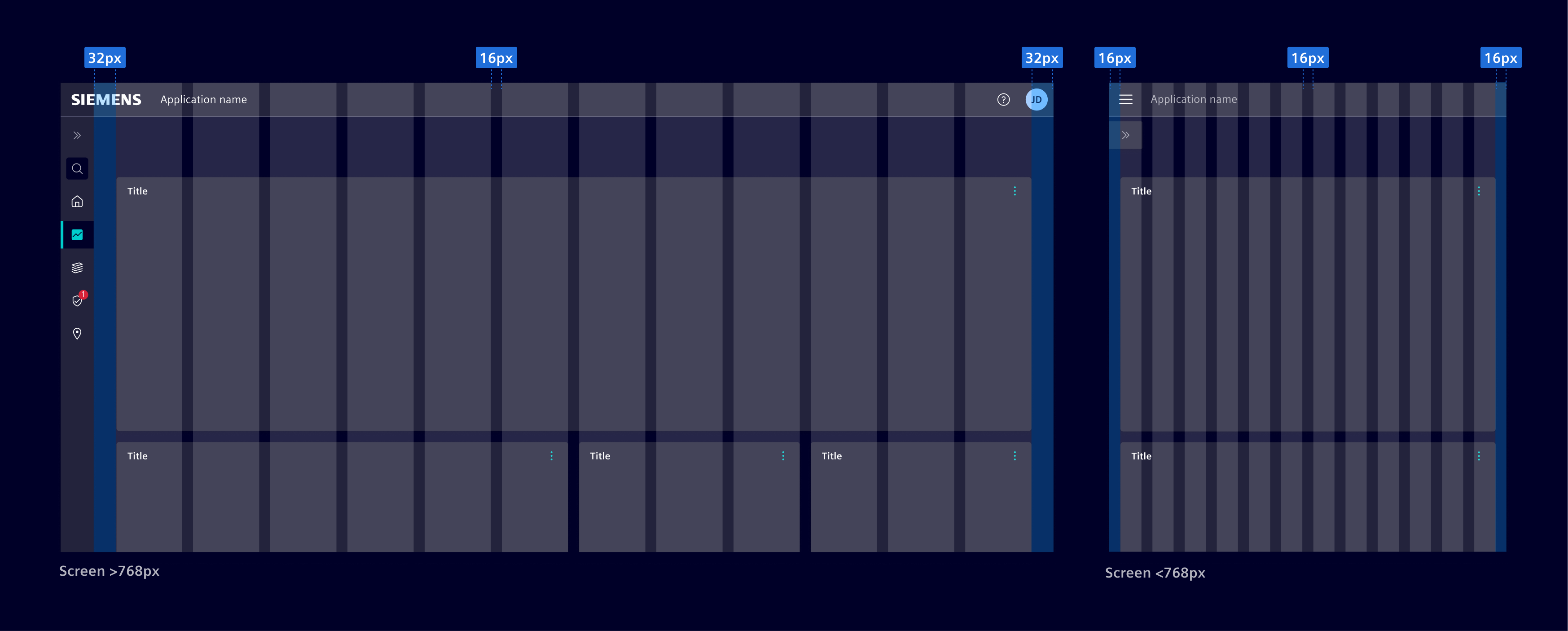

Margin, columns and gutters¶

The placement of content follows a flexible 12-column system where each column has a gutter of 16px.

For screens wider than 768px, use a 32px horizontal margin. For screens narrower than 768px, reduce the margin to 16px.

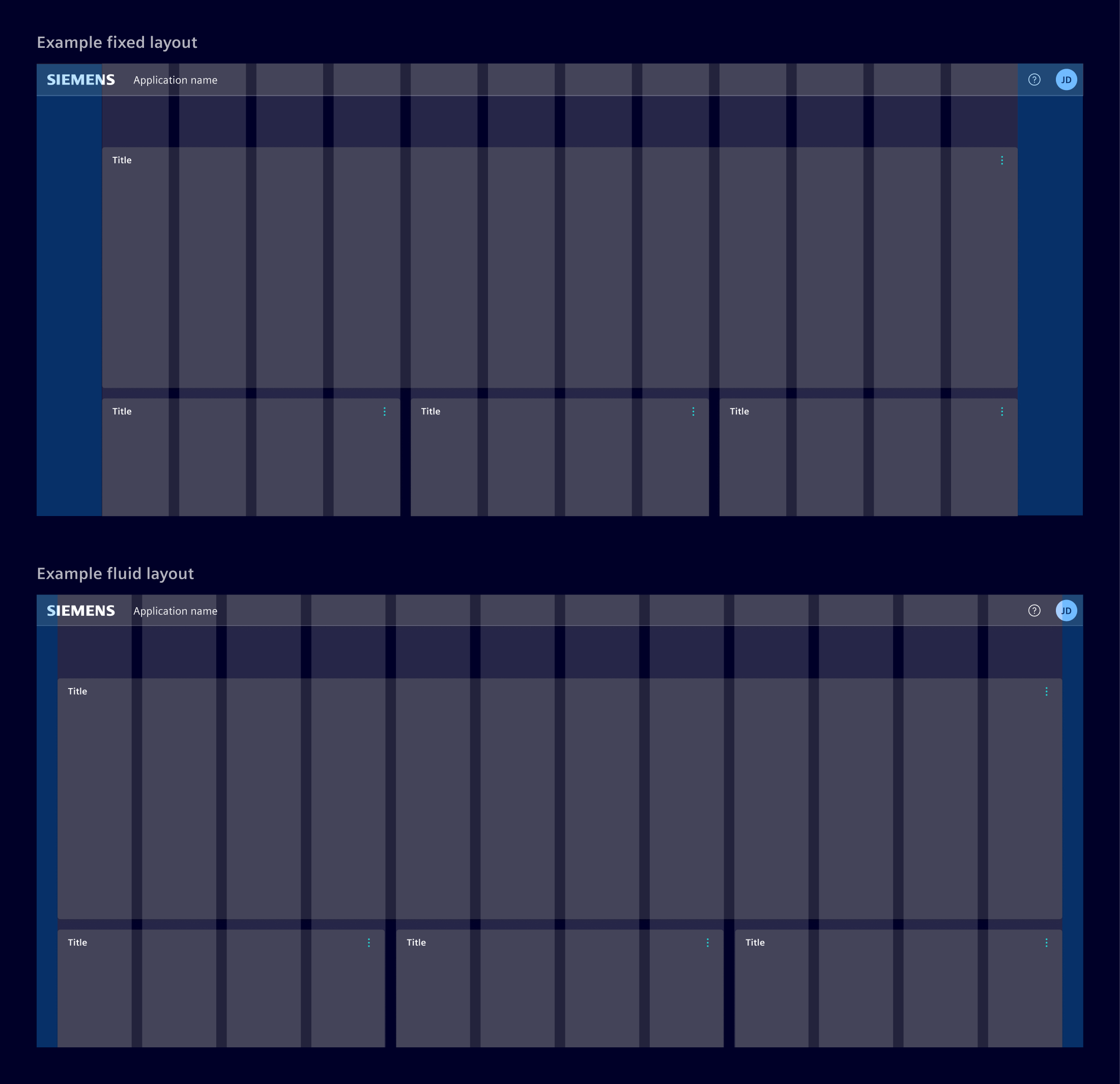

Fluid vs. fixed layout¶

Choose between a fluid or fixed layout width based on content requirements.

Fixed layouts have a maximum width defined for the content area.

Fluid layouts consume all the available screen space. It stretches the content to accommodate the browser window's width, regardless of how wide it becomes.

Code¶

The flexbox grid is used to create layouts of any complexity using a 12-column system, six responsive breakpoints, and a wide range of predefined utility classes. The grid system is based on the well-known and beloved Bootstrap grid.

Concept¶

Here’s an overview of how the grid system functions:

• The grid features six responsive breakpoints, each defined by min-width media queries. Classes like .col-sm-4 apply to the specified breakpoint and all larger ones (e.g., sm, md, lg, xl, and xxl), giving you granular control over container and column behavior at every screen size.
• Containers center your content and provide horizontal padding. Use .container for a responsive fixed width, .container-fluid for full-width layouts across all devices, or breakpoint-specific containers (e.g., .container-md) for a mix of fluid and fixed widths.
• Rows act as wrappers for columns and manage horizontal spacing (gutters) between columns. Negative margins on rows offset the column padding, ensuring content aligns neatly along the left edge. Rows also support modifier classes for consistent column sizing and customizable gutter spacing.
• Columns are highly flexible, with 12 available per row. You can combine columns in any configuration, and column classes (e.g., .col-4) specify how many columns an element should span. All widths are set in percentages, ensuring consistent relative sizing across breakpoints.
• Gutters the spaces between columns — are fully responsive and customizable. Use gutter utility classes like .gx-* for horizontal spacing, .gy-* for vertical spacing, or .g-* for both. To remove gutters entirely, use .g-0.

Column layout¶

Equal-width columns¶

By using the .col class, columns automatically divide available space evenly, adapting to any number of columns and all breakpoints.

<div class="container text-center">
  <div class="row">
    <div class="col">Col 1</div>
    <div class="col">Col 2</div>
  </div>
  <div class="row">
    <div class="col">Col 1</div>
    <div class="col">Col 2</div>
    <div class="col">Col 3</div>
  </div>
</div>

Setting column span¶

With the grid auto-layout, you can specify the width of one column while allowing the remaining columns to automatically adjust and share the available space. This can be achieved using predefined grid classes (as shown below) or inline styles. Regardless of the width you set for a specific column, its siblings will flexibly resize to fill the row, ensuring a balanced and responsive layout.

<div class="container text-center">
  <div class="row">
    <div class="col">Col 1</div>
    <div class="col-6">Col 2 (wider)</div>
    <div class="col">Col 3</div>
  </div>
  <div class="row">
    <div class="col">Col 1</div>
    <div class="col-5">Col 2 (wider)</div>
    <div class="col">Col 3</div>
  </div>
</div>

Variable width content¶

To automatically size columns according to their content, use the col-{breakpoint}-auto classes. These classes allow a column to expand just enough to fit its content, rather than occupying a fixed portion of the grid. This is especially useful for layouts with variable-width elements, such as buttons or labels, ensuring your grid remains flexible and visually balanced across different screen sizes.

<div class="container text-center">
  <div class="row justify-content-md-center">
    <div class="col col-lg-2">Col 1</div>
    <div class="col-md-auto">Variable width content</div>
    <div class="col col-lg-2">Col 3</div>
  </div>
  <div class="row">
    <div class="col">Col 1</div>
    <div class="col-md-auto">Variable width content</div>
    <div class="col col-lg-2">Col 3</div>
  </div>
</div>

Responsive classes¶

The grid system provides six tiers of predefined classes, enabling you to build sophisticated layouts that adapt seamlessly across all device sizes. You can tailor the width of your columns for extra small, small, medium, large, extra large, and extra extra large screens, ensuring optimal presentation on any device.

All breakpoints¶

To create grids that maintain the same structure from the smallest to the largest screens, use the .col and .col-* classes. The .col class automatically distributes available space evenly among columns, while .col-* lets you specify the exact number of columns an element should span. Use numbered classes when you need precise control over column width; otherwise, .col provides a flexible, responsive layout.

<div class="container text-center">
  <div class="row">
    <div class="col">col</div>
    <div class="col">col</div>
    <div class="col">col</div>
    <div class="col">col</div>
  </div>
  <div class="row">
    <div class="col-8">col-8</div>
    <div class="col-4">col-4</div>
  </div>
</div>

Stacked to horizontal¶

By applying .col-sm-* classes, you can build a grid that stacks columns vertically on extra small screens and arranges them horizontally starting at the small (sm) breakpoint. This approach ensures your layout is mobile-friendly by default, then transitions to a horizontal format as the viewport widens, providing a seamless and responsive experience across devices.

<div class="container text-center">
  <div class="row">
    <div class="col-sm-8">col-sm-8</div>
    <div class="col-sm-4">col-sm-4</div>
  </div>
  <div class="row">
    <div class="col-sm">col-sm</div>
    <div class="col-sm">col-sm</div>
    <div class="col-sm">col-sm</div>
  </div>
</div>

Mix and match¶

You can combine different grid classes across breakpoints to achieve complex, adaptive layouts. Instead of having columns stack or remain uniform at every screen size, apply unique class combinations for each tier to control how columns behave as the viewport changes. The example below demonstrates how you can mix and match classes to create layouts that respond intelligently to different devices.

<div class="container text-center">
  <!-- Stack the columns on mobile by making one full-width and the other half-width -->
  <div class="row">
    <div class="col-md-8">.col-md-8</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  </div>

  <!-- Columns start at 50% wide on mobile and bump up to 33.3% wide on desktop -->
  <div class="row">
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
    <div class="col-6 col-md-4">.col-6 .col-md-4</div>
  </div>

  <!-- Columns are always 50% wide, on mobile and desktop -->
  <div class="row">
    <div class="col-6">.col-6</div>
    <div class="col-6">.col-6</div>
  </div>
</div>

Row columns¶

Easily control the number of columns in a row using responsive .row-cols-* classes. Unlike .col-* classes, which are applied to individual columns to set their width, .row-cols-* classes are added to the parent .row element to define how many columns should be displayed per row.

For example, .row-cols-2 will automatically arrange child columns into two columns per row, regardless of how many .col elements are present. The .row-cols-auto class allows columns to size themselves naturally based on their content, rather than enforcing a fixed number per row.

These classes are ideal for quickly building simple grid layouts or managing the arrangement of cards and other components, providing a flexible shortcut for responsive design.

<div class="container text-center">
  <!-- Create 2 column grid -->
  <div class="row row-cols-2">...</div>
</div>
<div class="container text-center">
  <!-- Create 3 column grid -->
  <div class="row row-cols-3">...</div>
</div>
<div class="container text-center">
  <!-- Create 4 column grid -->
  <div class="row row-cols-4">...</div>
</div>
<div class="container text-center">
  <div class="row row-cols-auto">...</div>
</div>

Create a grid that dynamically adapts the number of columns to the screen size using responsive .row-cols-* classes. These classes allow you to specify how many columns should be displayed at each breakpoint, ensuring your layout remains visually balanced and user-friendly across all devices.

For example, the following setup will display one column on extra small screens, two columns on small screens, and four columns on medium screens and above:

<div class="container text-center">
  <div class="row row-cols-1 row-cols-sm-2 row-cols-md-4">
    <div class="col">Col</div>
    <div class="col">Col</div>
    <div class="col">Col</div>
    <div class="col">Col</div>
  </div>
</div>
