Content layouts¶

Usage¶

Content layouts should be used as starting points and adapted as needed to meet unique requirements. The layouts resides in the content area of the page anatomy.

Content area behavior¶

In all the mentioned layout types, it's important to consider how the content area is managed:

• Full scroll: The content takes the needed vertical space and extends as users scroll down.
• Fixed height: The application height is fixed to the height as the browser window. The content area resizes vertically and fills the height. Any content overflow is handled with inner scroll bars.

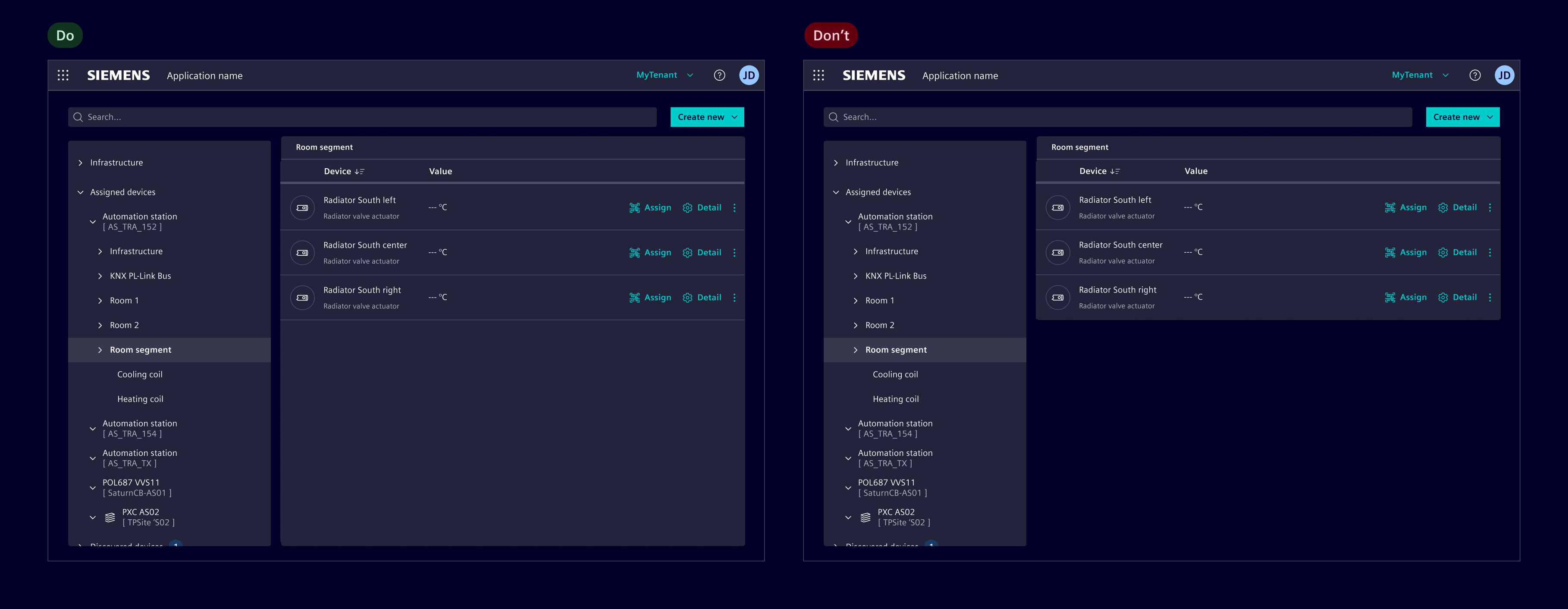

Scaling considerations¶

• When displaying structured data (e.g., tables, lists, or trees), ensure that the container maintains a consistent height, even if only a few entries are present.
• Ensure visual balance between related content containers (e.g., main-detail). Avoid situations where one container stretches while another remains mostly empty, creating asymmetry in the layout.

Flexibility¶

Layouts can incorporate split functionality to allow sections to be rearranged, draggable, or expandable based on user needs and specific requirements. This flexibility can be applied across the different layout structures, allowing for adaptive content management.

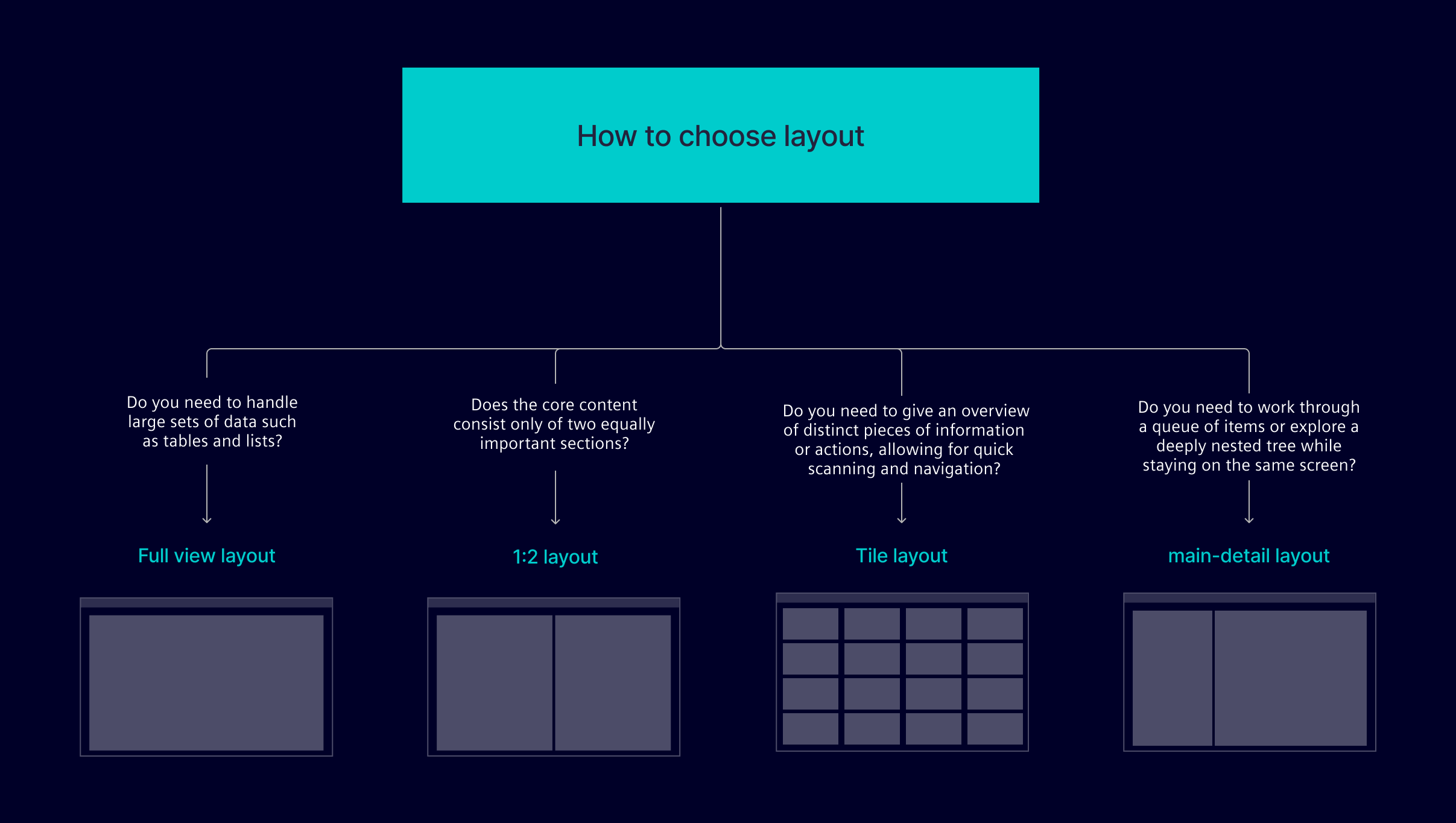

Best practices for content layouts¶

• Understand user needs. Choose the right layout based on the content.
• Adapt layouts to match content requirements.
• Preserve structure. Maintain hierarchy as content adjusts.
• Combine layouts to meet complex needs.

Design¶

In all layout types, the positions of the following components are fixed:

• Application header
• Vertical navigation
• Side panel

The following are common layout configurations, adapt them based on the use case.

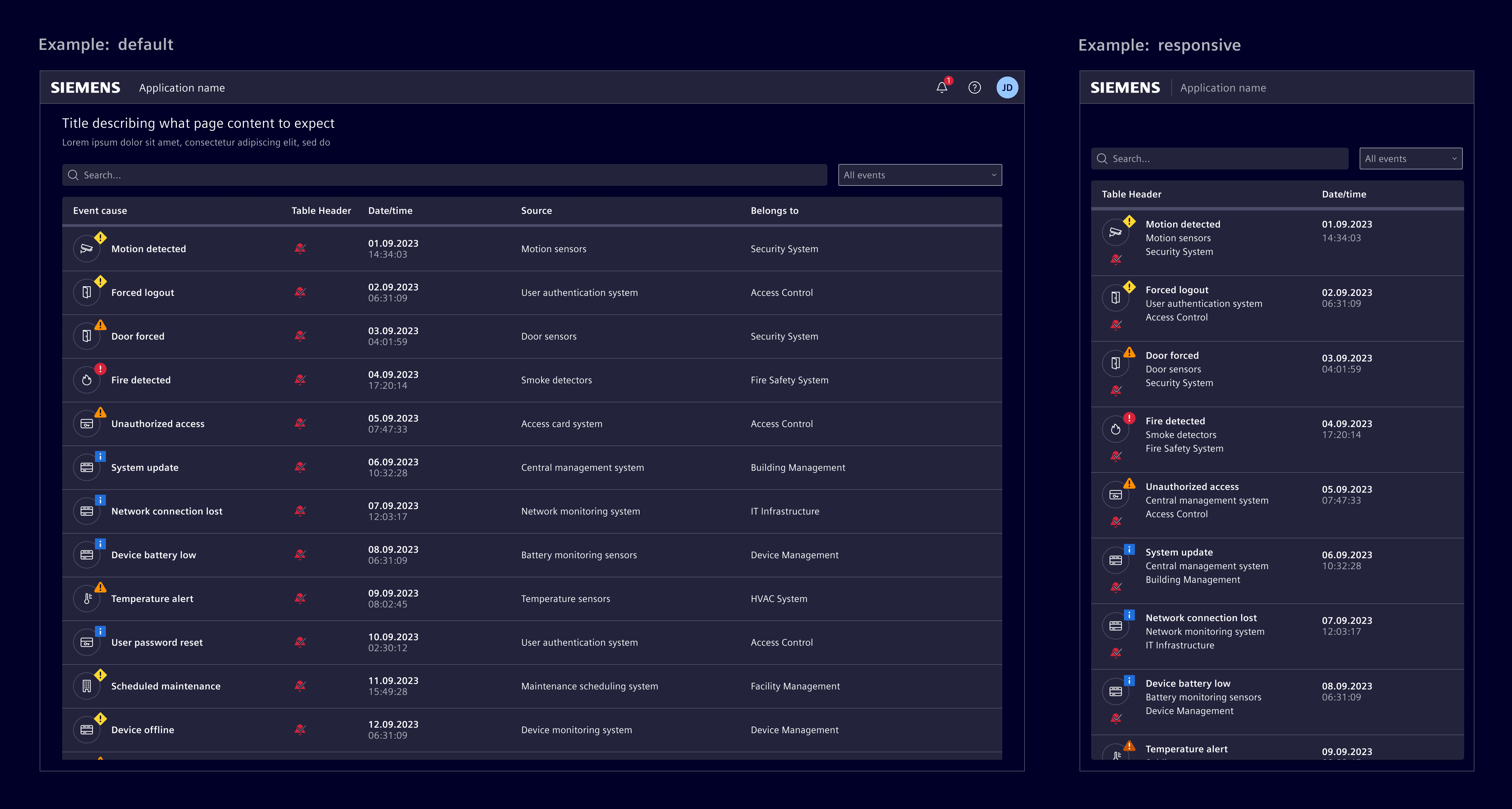

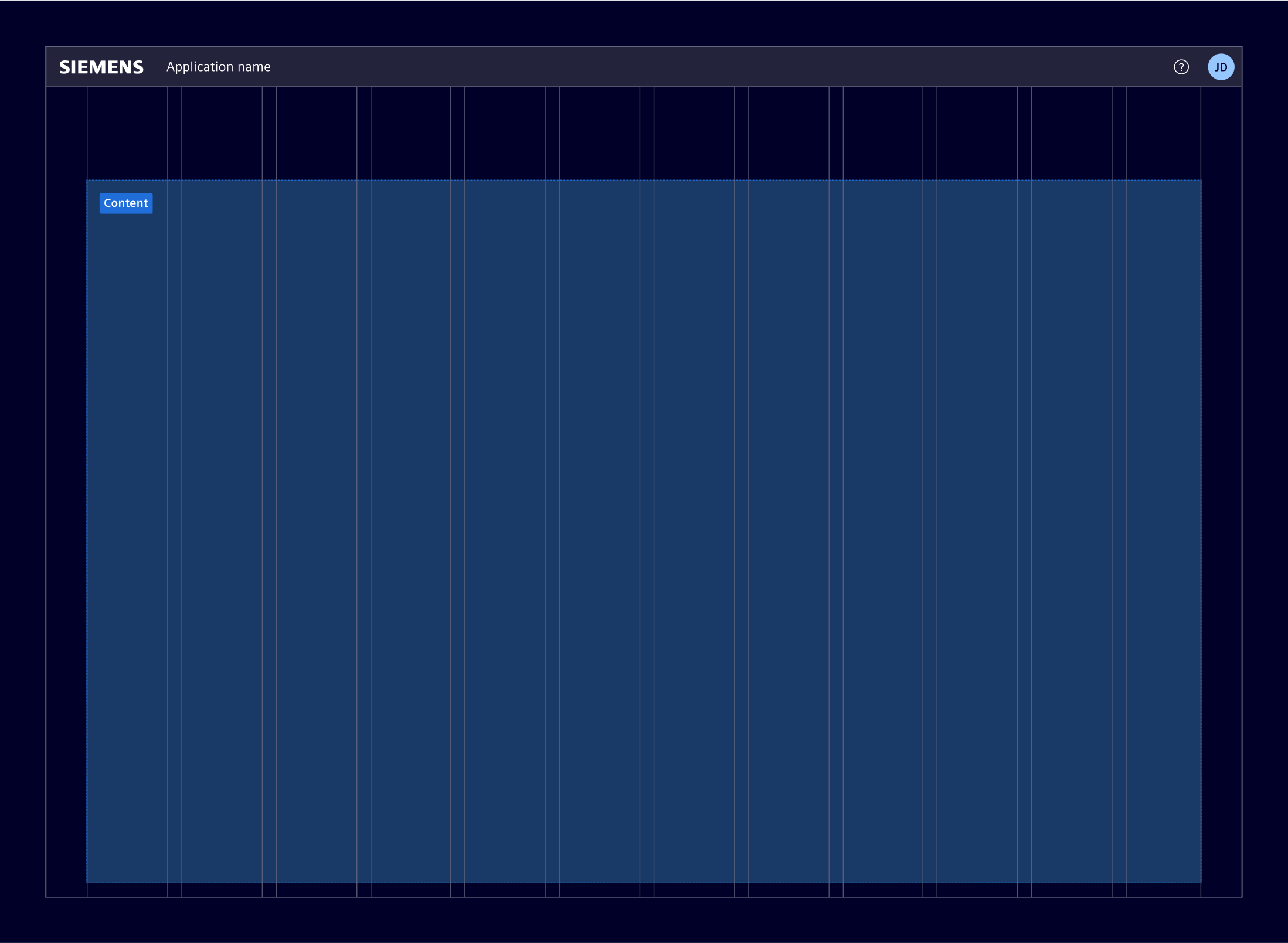

Full view layout¶

Use it for viewing and managing expansive data sets or graphical content that benefits from more horizontal space. The layout maximizes the available space by using the full width of the 12-column grid system within the content area.

In responsive design, consider utilizing relative units like percentages or viewport width to ensure elements adapt seamlessly to varying screen sizes, taking advantage of available horizontal space.

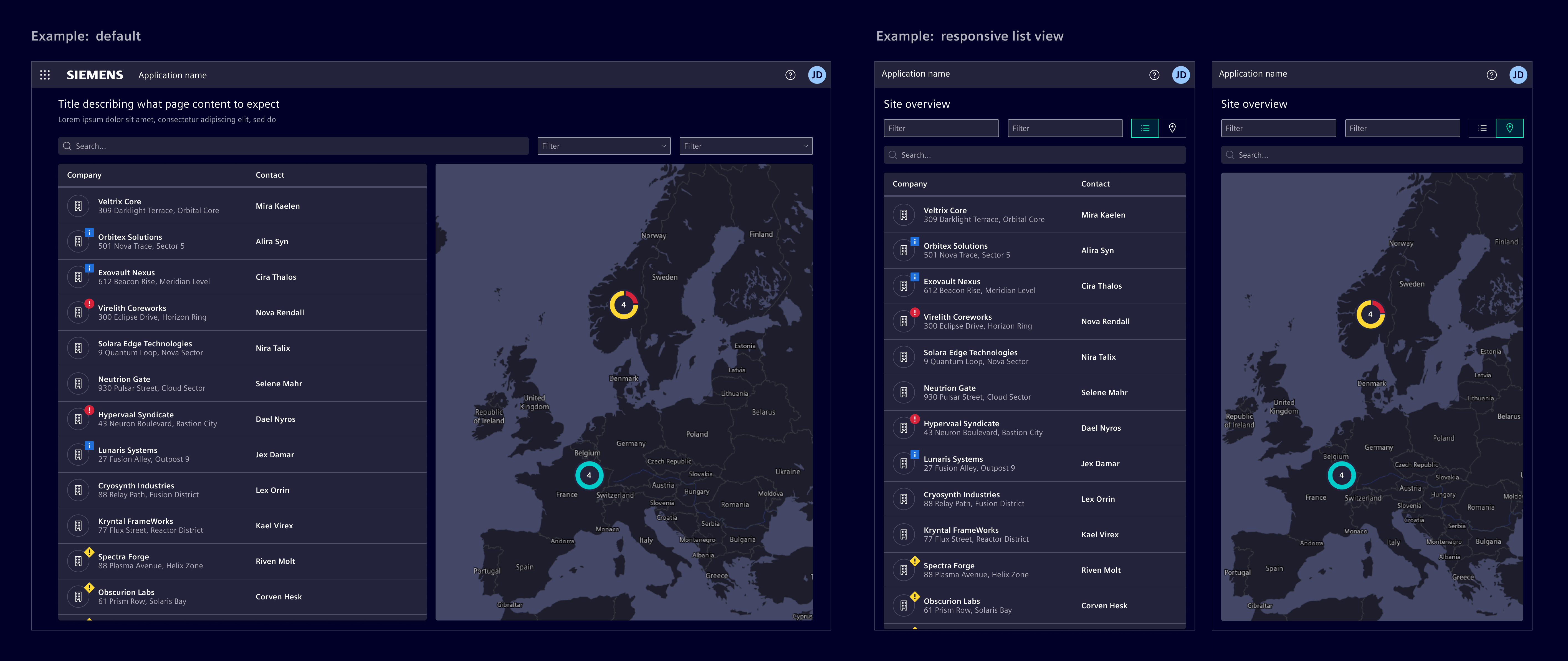

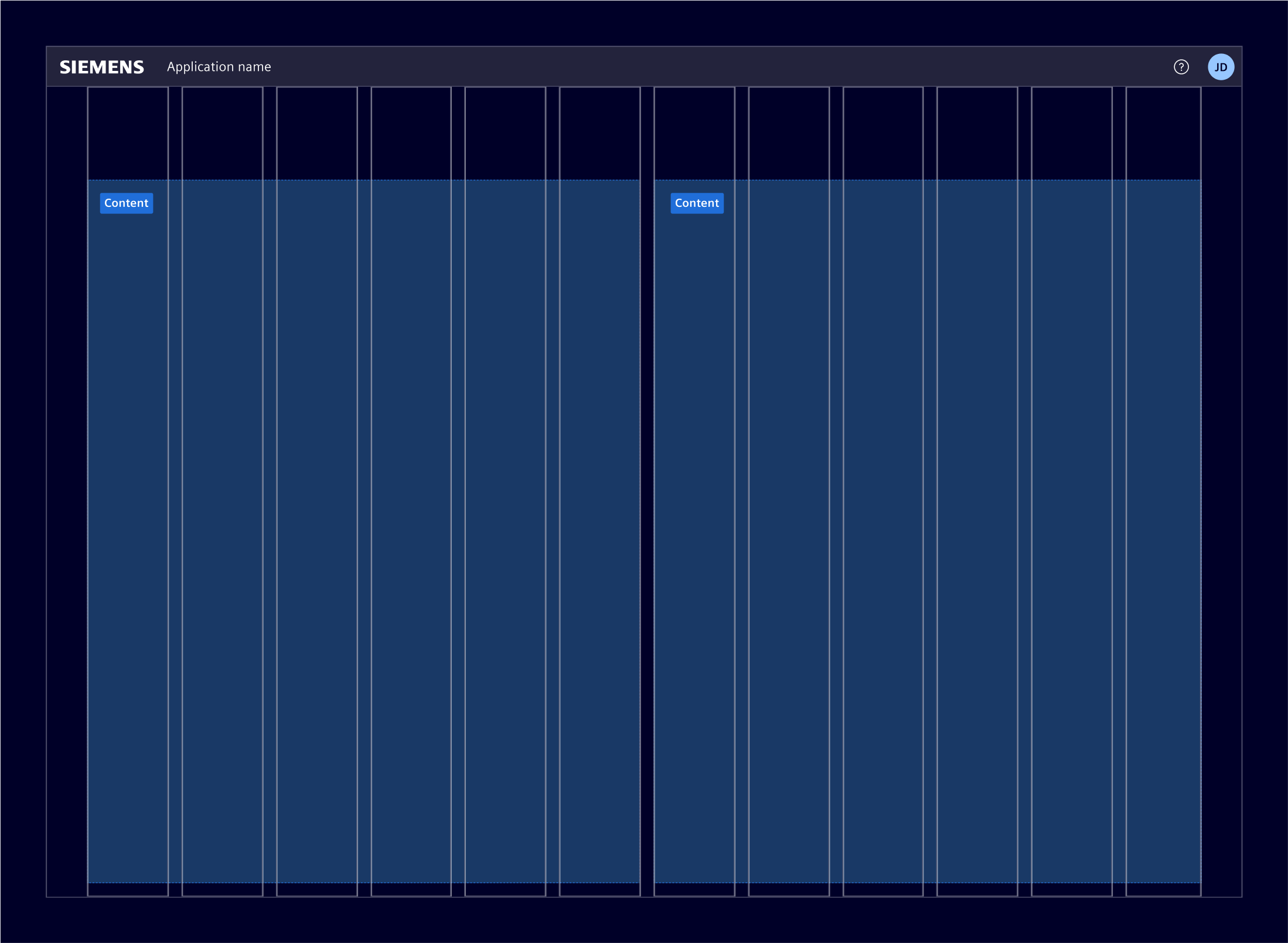

1:2 layout¶

Divides the content or functionality into two balanced sections. A common usage is to pair a map alongside a table or list.

On smaller screens, consider offering different view modes or vertically stacking the sections.

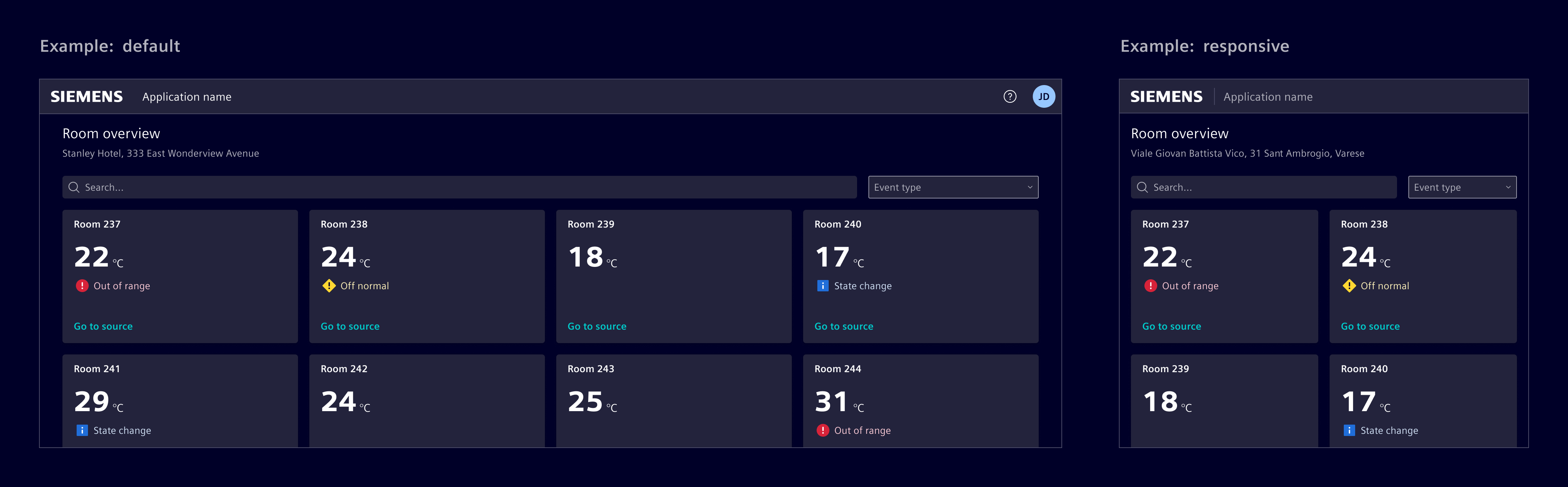

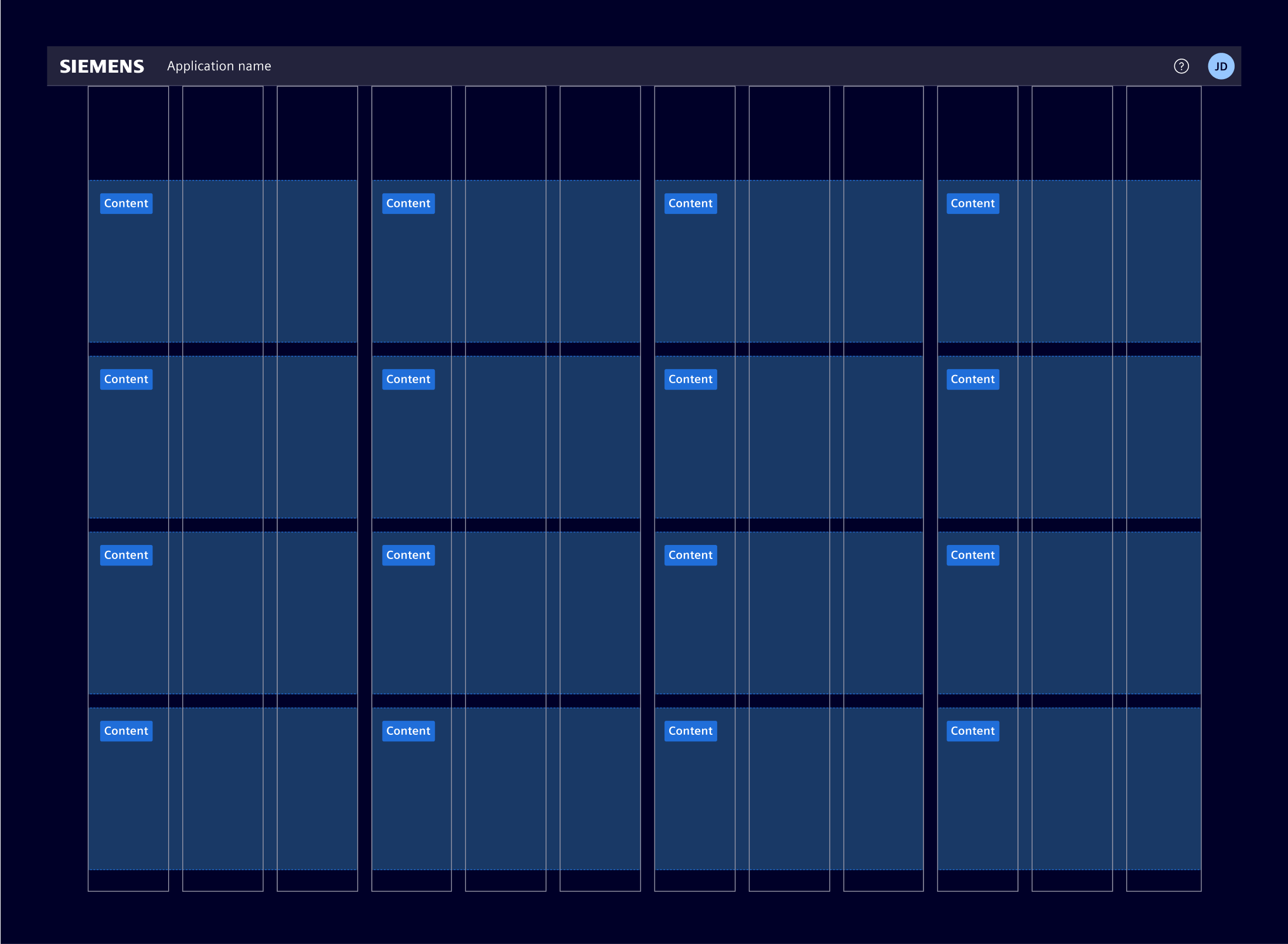

Tile layout¶

Displays an array of cards, each echoing distinct pieces of information or actions. Use it to present users with an overview, facilitating quick scanning. Users can navigate by selecting cards, which may lead to more detailed content or actions.

On smaller screens, use vertical stacking and consider a dynamic sizing approach based on the 12-column grid system.

Main-detail¶

The specifics of this layout are described within the main-detail container chapter.

Code¶

This section describes and shows common application page layouts. We show the application of the two variants Full scroll and Fixed height.

Full scroll¶

The content area takes all the height it needs, but not more. The content scrolls below the horizontal navigation. This variant is the default and no extra CSS classes need to be added.

Fixed height¶

The content area takes the full available screen height but not more. Inner components like tables may grow to maximum height and content overflows are handled with inner scroll bars.

This behavior can be implemented with flex. The outer application element must set its height to 100% of the window height by e.g. the Bootstrap utility h-100 and set its content to flex column with grow and shrink.

flex: 1 1 0;
display: flex;
flex-direction: column;

It is important that all HTML elements, from the outer to the inner element, which shall grow and shrink apply this layout. This includes also the Angular host element of your components.

:host {
  display: flex;
  flex: 1 1 0;
  flex-direction: column;
}

Any HTML element in the chain of the growing component with different display settings breaks the behavior. Note, do also not use height: 100%; or h-100 as it breaks the resizing on Safari and iOS.

Element defines the mixin si-layout-fixed-height and the class si-layout-fixed-height to style elements as described. You also have to use it at the root element that is also set to 100% height. The components that use inner elements check for this parent class to adjust the inner component display. For example, the inner main element that comes with the vertical navigation adjusts its display accordingly.

Full View Layout Examples¶

1:2 Layout Examples¶

Tile Layout Examples¶

A bottom margin of 16px or .mb-6 is added to the content element container.
