Elevation¶

Elevation of a surface is represented by its distance from the page's background along the z-axis, creating a sense of depth and establishing content hierarchy within an application.

Usage¶

In the Element Design System, elevation is achieved through a combination of layered base colors and drop shadows, creating depth and spatial associations without unnecessary stylistic elements.

Base color layers¶

At the core of the layering model are the Base-0 and Base-1 tokens:

base-0: Is placed on the lowest position of the stack order, serving as the foundational background for the UI.
base-1: Is placed on top of base-0 and is the default layer for container elements like cards, vertical navigation, and side panels.
base-3: Used to layer content above other content. It works best with shadows and is reserved for components like popovers and toasts to enhance depth in low-light environments.

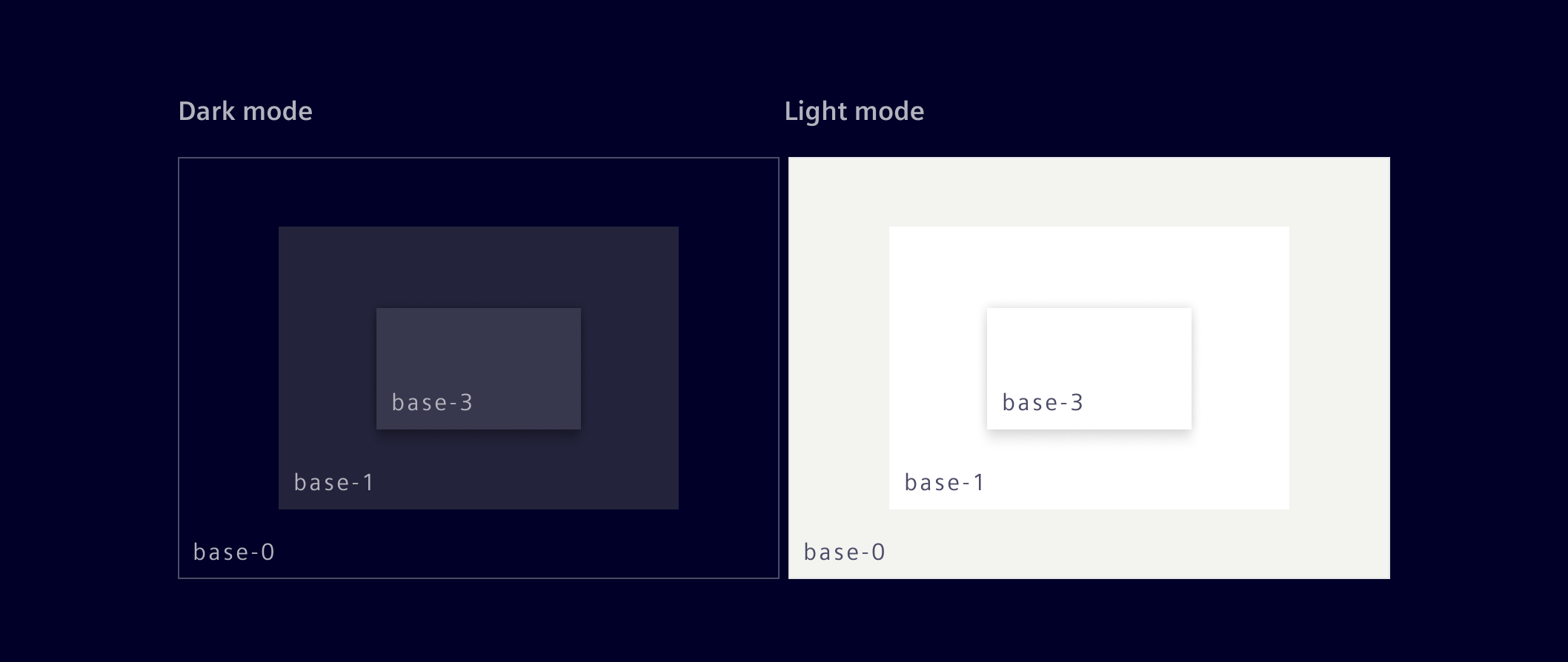

Elevation

Complementary tokens like base-1-hover and base-1-selected are used to indicate interaction states while maintaining the visual layering logic.

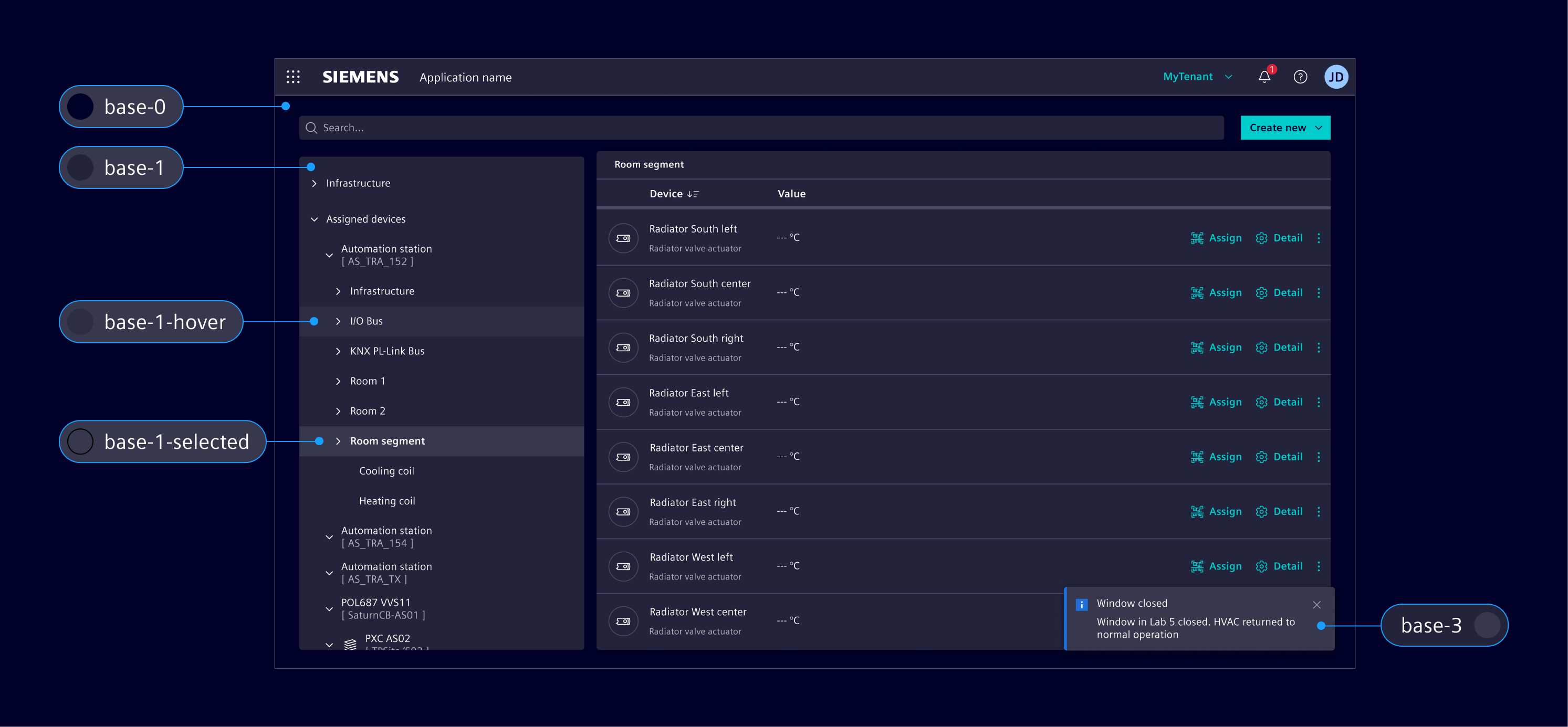

Elevation usage example

Avoid adding unnecessary layers or "boxes in boxes", as this can compromise clarity and usability.

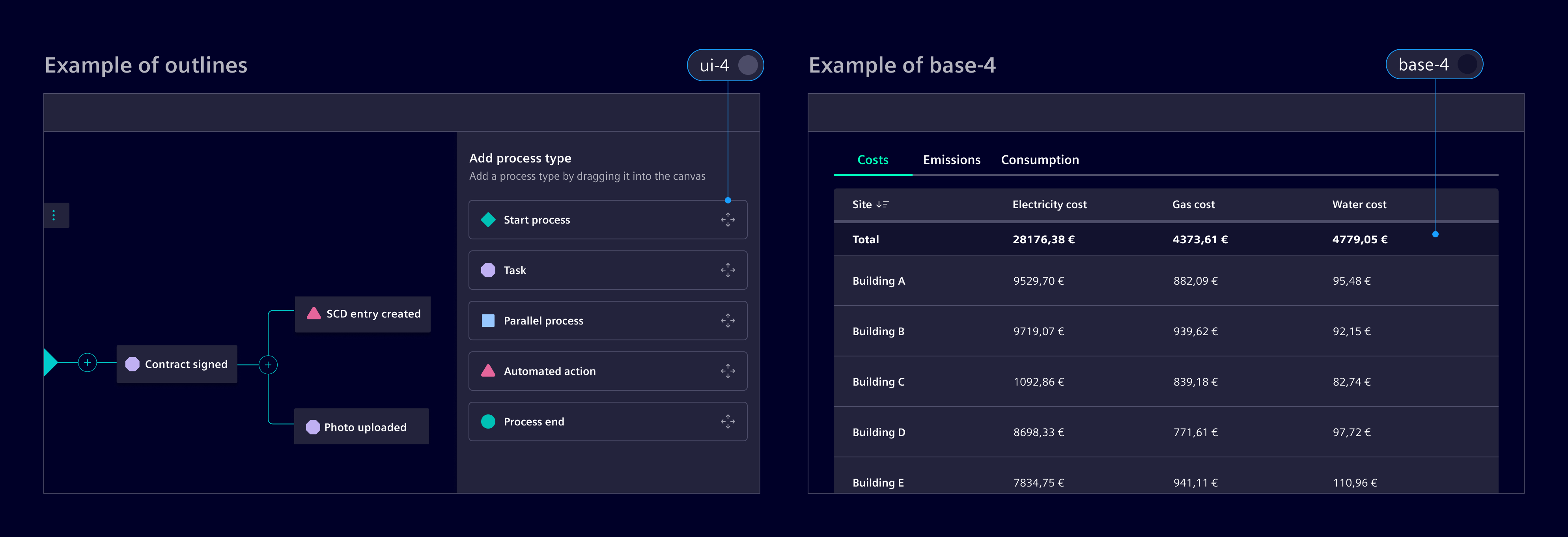

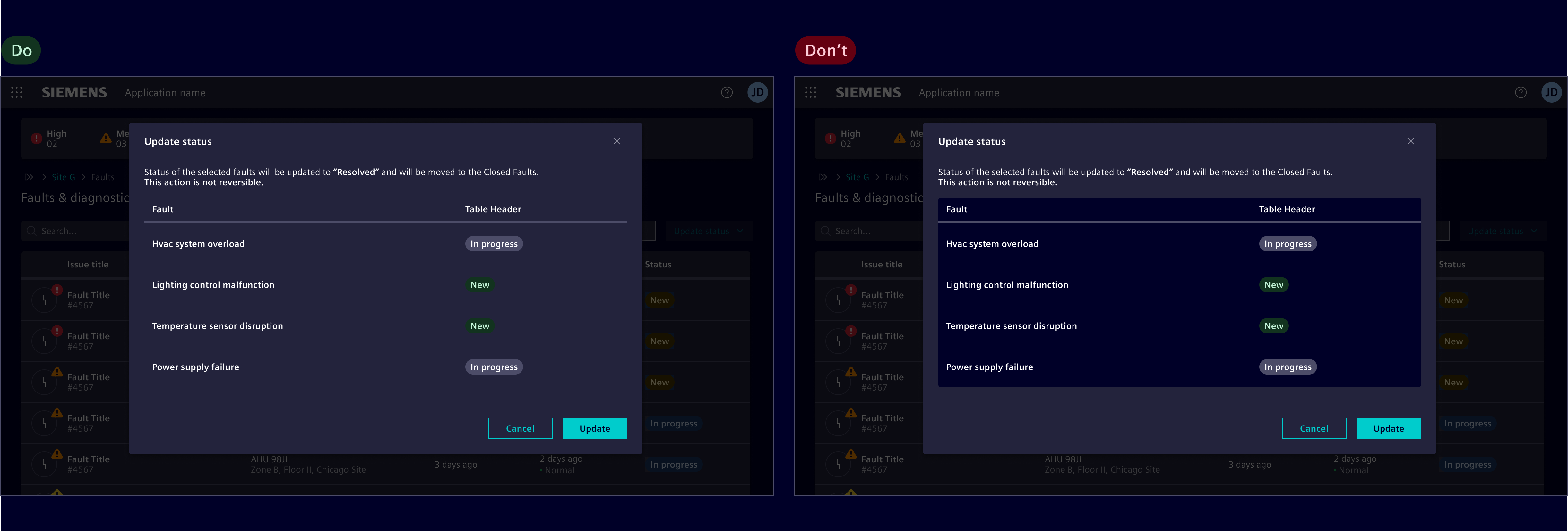

Elevation layers do's and don'ts

Shadows¶

Shadows are used selectively to indicate physical overlap between components. Shadows are reserved for components that float above or overlap other content, such as menus, modals, popover and toasts.

Components without overlapping behavior, such as cards, must not have shadows.

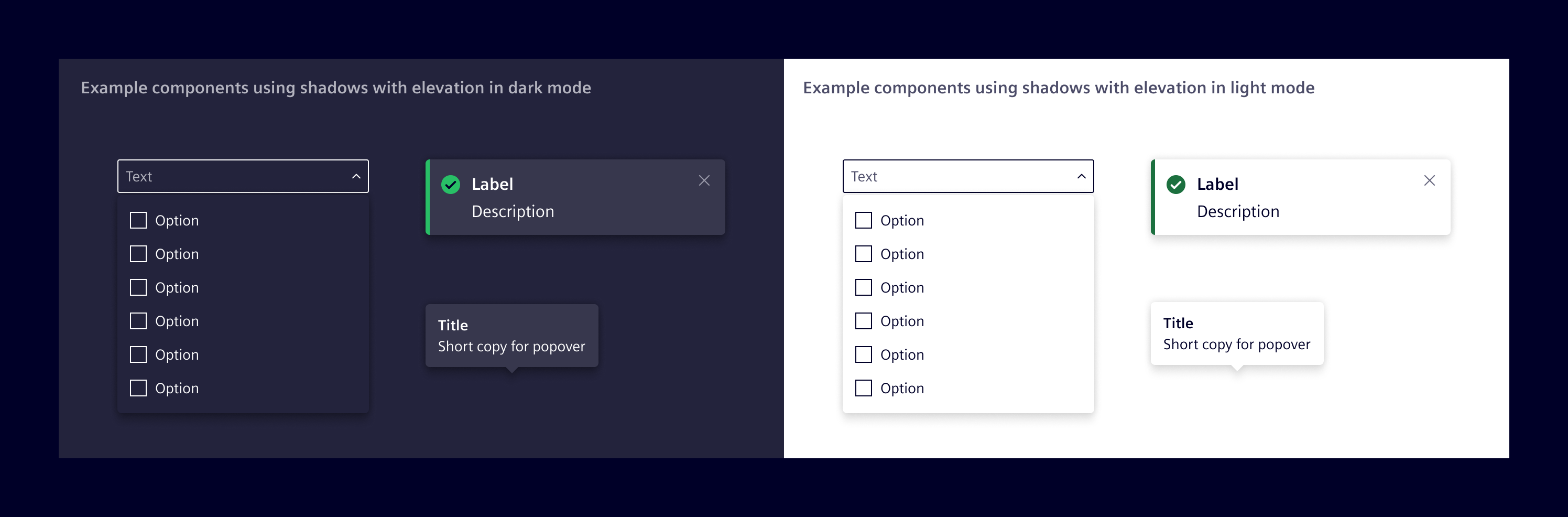

Elevation with shadows component examples

The elevation tokens represent increasing levels of shadows.

elevation-2: The active token used for overlapping components like menus, popovers, and toasts, establishing the standard elevation for floating elements.

The other tokens are retained for flexibility in custom visualizations, interactive illustrations, or animations to enhance depth and spatial relationships.

elevation-1: For minimal elevation effects and subtle layering.
elevation-3: For elements requiring stronger visual prominence, such as multi-layered highlights.
elevation-4: Reserved for rare or critical cases requiring maximum elevation distinction.

Elevation	Token	Color	Opacity (light)	Opacity (dark)	X	Y	Blur
Level 1	`$element-elevation-1`	`$element-black`	16%	40%	0px	0px	4px
		`$element-black`	8%	20%	0px	4px	4px
Level 2	`$element-elevation-2`	`$element-black`	16%	40%	0px	0px	8px
		`$element-black`	8%	20%	0px	8px	8px
Level 3	`$element-elevation-3`	`$element-black`	16%	40%	0px	0px	16px
		`$element-black`	8%	20%	0px	40px	16px
Level 4	`$element-elevation-4`	`$element-black`	16%	40%	0px	0px	32px
		`$element-black`	8%	20%	0px	32px	32px

Code¶

The 4 elevation levels (including none) in the form of box-shadow values can be accessed directly by using CSS utility classes.

Sass Variables¶

The shadow values for each Element elevation level can also be alternatively used as SCSS variables within stylesheets. This also allows you to consume the inset alternatives to the outside shadow variants.

@use '@siemens/element-theme/src/styles/variables';

box-shadow: variables.$element-elevation-1;
box-shadow: variables.$element-elevation-2;
box-shadow: variables.$element-elevation-3;
box-shadow: variables.$element-elevation-4;

box-shadow: variables.$element-elevation-inset-1;
box-shadow: variables.$element-elevation-inset-2;
box-shadow: variables.$element-elevation-inset-3;
box-shadow: variables.$element-elevation-inset-4;

Except where otherwise noted, content on this site is licensed under MIT License.
