Summary chip¶

Usage¶

There are basically two main use cases for the summary chip component:

• State indication: To show values of different categories, such as Override, Success, Issue, Not tested, etc.
• Filtering: To filter datasets or information based on the specific categories.

When to use¶

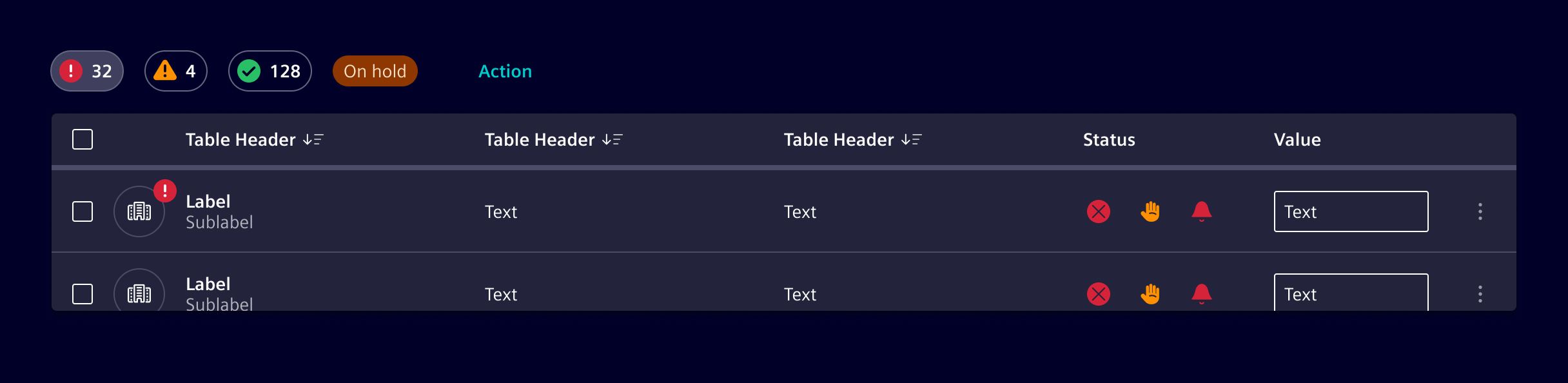

Arrange one or more Summary Chips in a horizontal layout above or near the related content. Chips can be combined with other supporting elements, such as badges, buttons, or links, to enhance functionality. Place them within a container that can use a background of None, background-0, or background-1, depending on the visual requirements.

Design¶

Elements¶

1. Category icon or composite icon (optional), 2. Label (optional), 3. Value (optional)

The summary chip can hold an icon or a composite icon representing a state. The icon must be self-explanatory since there is no label.

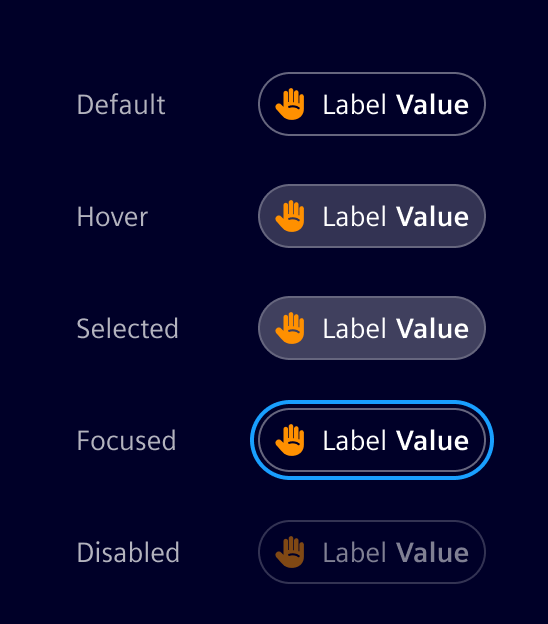

States¶

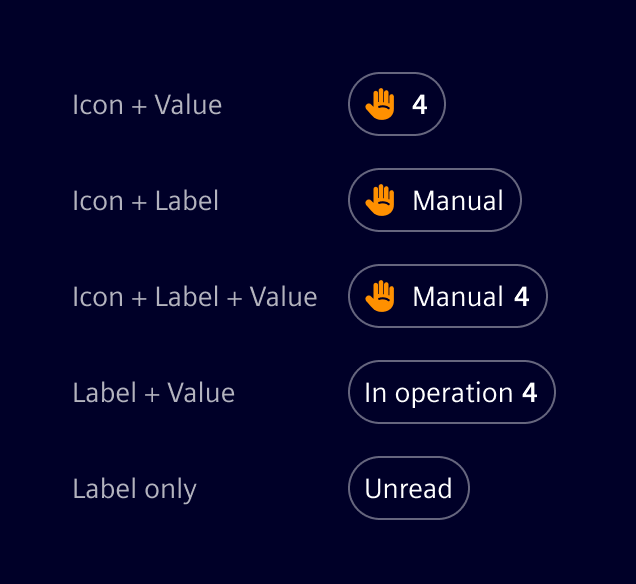

Variants¶

The component is very flexible, hence allowing the following variants:

Code¶

SiSummaryChipComponent API Documentation¶

Input Properties¶

Name	Type	Default	Description
color ¶	string		Color class, see https://element.siemens.io/typography/#color-variants-classes .
disabled ¶	boolean	false	Disabled state.
hideLabel ¶	boolean	false	Whether to hide the label. Only takes effect when both icon and value are provided. The label will still be used for screen-readers.
icon ¶	string		Icon token, see https://element.siemens.io/icons/element .
label ¶	TranslatableString		The label.
selected ¶	boolean	false	Selected state, will change when clicked.
stackedColor ¶	string		Color class, see https://element.siemens.io/fundamentals/icons/ .
stackedIcon ¶	string		Icon token, see https://element.siemens.io/fundamentals/icons/ .
status ¶	ExtendedStatusType		Status. Alternatively, use icon and color .
value ¶	TranslatableString		Value to display.

Output Properties¶

Types Documentation¶
