Source chips¶

Usage¶

Use source chips to keep a response transparent about its references. Selecting a chip opens a popover with the source entry and a short excerpt.

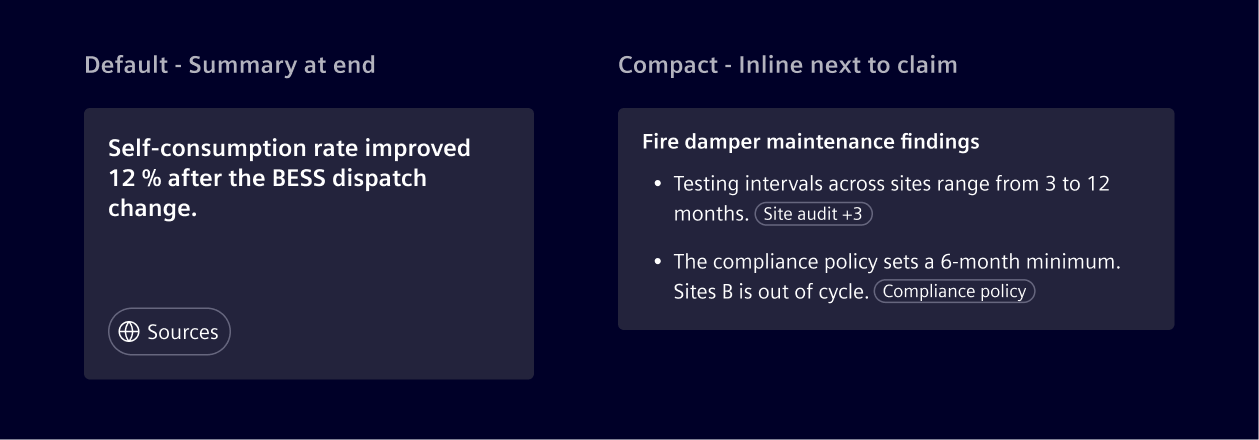

• Use the default source chip when one source supports the whole response. It appears as a summary chip at the end.
• Use the compact source chip when a claim needs a source next to it. It appears inline with the text it supports. Use a +n counter when several sources support the same claim.

When to use¶

• In AI answers, research summaries, or any content grounded in documents or external data.

Design¶

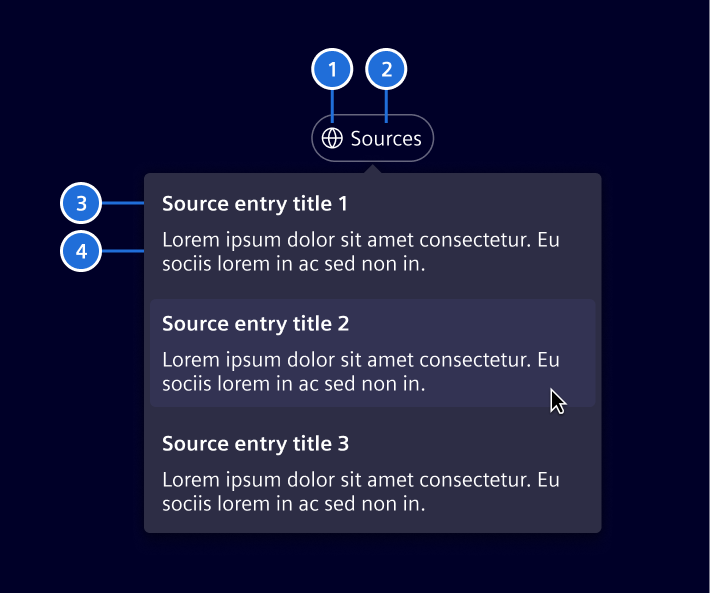

Anatomy¶

1. Source label: Shows the source title for a single source, or Sources when the chip groups multiple sources.
2. Icon (optional): Marks the source as a web link. Include it when the source is external.
3. Source entry title: The title shown for each source in the popover list.
4. Relevant excerpt: Short snippet showing the exact passage the AI used.

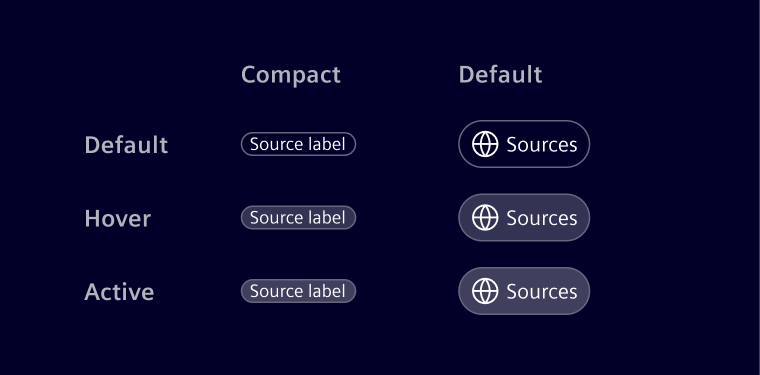

States¶

Code¶

Provide the sources through the sources input and handle sourceClicked to open the selected source or show it in the application.

import { Component } from '@angular/core';
import { SiSourceChipComponent, type SourceReference } from '@siemens/element-ng/source-chip';

@Component({
  imports: [SiSourceChipComponent],
  template: `<si-source-chip compact [sources]="sources" (sourceClicked)="openSource($event)" />`
})
export class SourceChipExampleComponent {
  protected readonly sources: SourceReference[] = [
    {
      name: 'Annual Report 2025',
      url: 'https://example.com/annual-report',
      quote: 'Revenue increased by 12% in 2025.'
    }
  ];

  protected openSource(source: SourceReference): void {
    window.open(source.url, '_blank', 'noopener');
  }
}

Use showLabel to always display Sources instead of a source name, and showIcon to display the source icon. Set disabled when source details must not be available.

SiSourceChipComponent API Documentation¶

Input Properties¶

Name	Type	Default	Description
compact ¶	boolean	false	Compact mode for inline use.
disabled ¶	boolean	false	Disabled state.
showIcon ¶	boolean	false	Wether to show the glob icon.
showLabel ¶	boolean	false	Wether to show a 'sources' label
sources ¶	SourceReference[]		The sources.

Output Properties¶

Types Documentation¶
