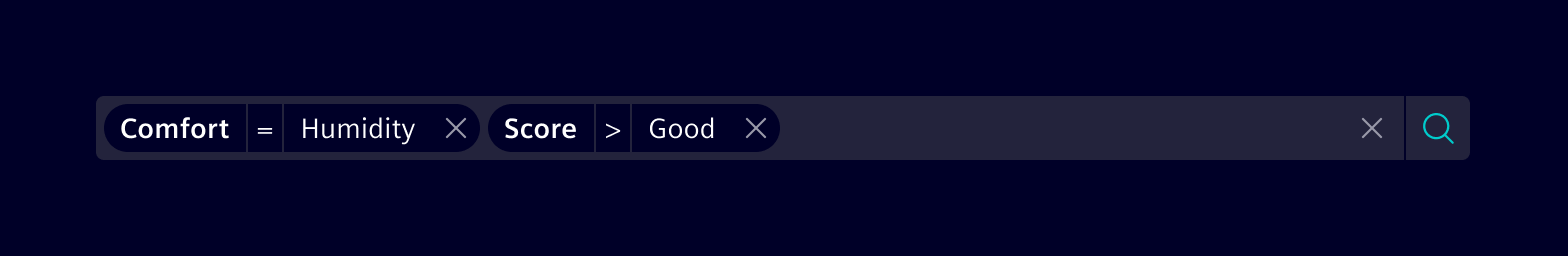

Filtered search¶

Usage¶

When to use¶

• When users may not know exactly what they are looking for and want to explore options by selecting different filters.
• Use it when free-text search alone isn't enough, and structured criteria add value to the search process.
• Use it to create filter formulas by adding or excluding conditions.
• Use it where there is enough horizontal space to display filter options without cluttering the interface.
• If users need to apply many filters, especially with nested or hierarchical structures, consider other filter patterns.

Best practices¶

• Use filtered Search with simple filter patterns (e.g. string, enumeration, integer, date/time) only.
• Always use strict criteria functionality and provide an explicit list of criteria.
• Ignore punctuation within searches.
• Consider adding other search capabilities according to project needs (e.g. use quotes to search for exact matches).

Design¶

Elements¶

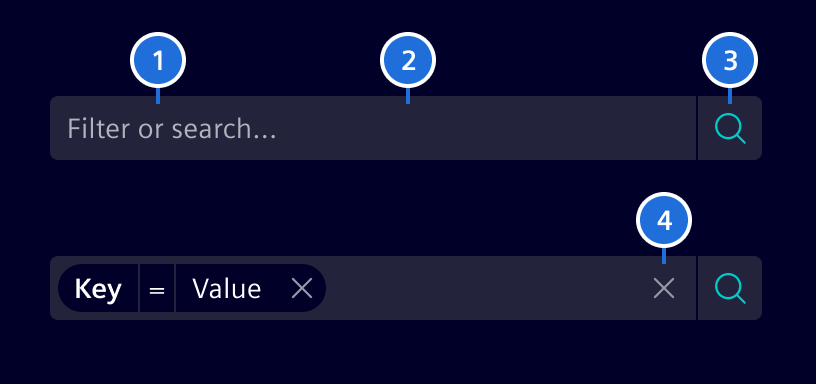

1. Placeholder, 2. Container, 3. Search button, 4. Clear button

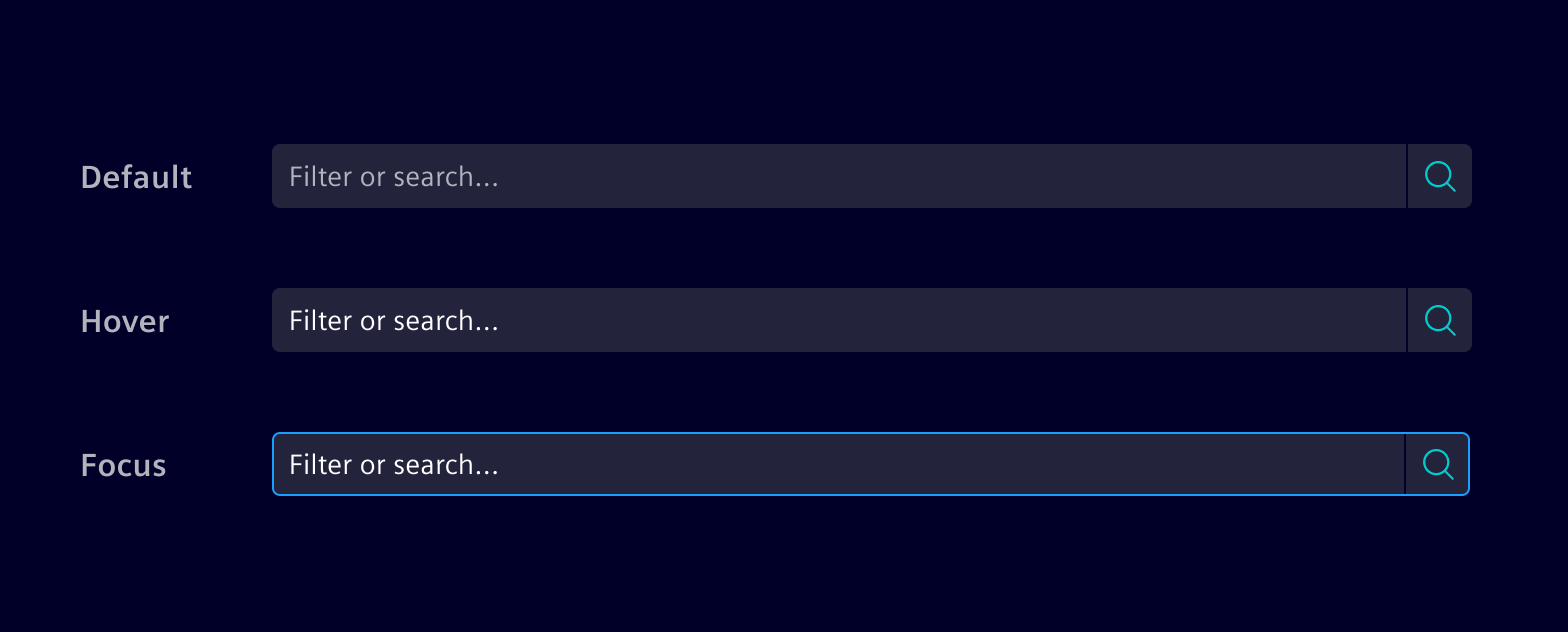

Interaction states¶

The filtered search container color should always be in contrast with its surrounding background. Use base-4 or base-1 according to that.

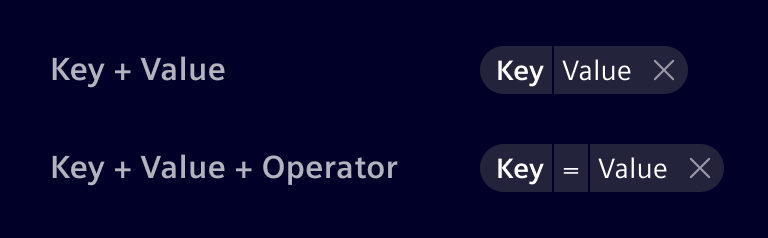

Filter anatomy¶

Filtered Search is used in combination with the Filter Pills. The filter can be composed of three different elements:

• Key: Targeted property or category.
• Value: Specific value of the property you are looking for.
• Operator: The intended relation between Key and Value (=, >, <, etc).

Combine the elements according to the complexity needed.

Filter patterns¶

Character value (string)¶

It allows to input text to find content without a predefined set of options.

Numeric value (integer / float)¶

It allows to input numbers. Usually has an operator and allows range filtering.

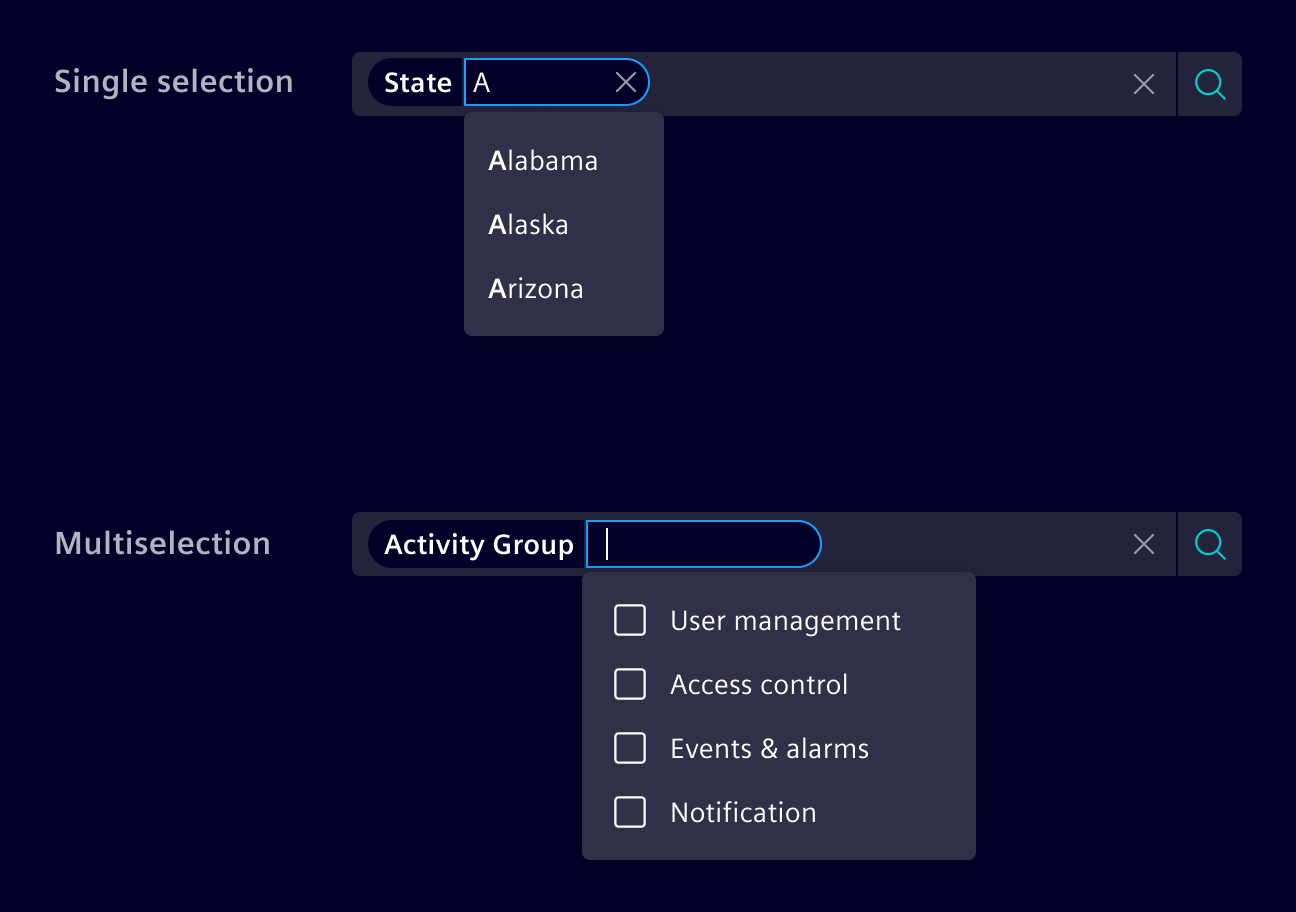

Enumeration¶

Enumeration contain a predefined set of values, from which the user can select one option (single selection) or many (multi-selection). Combine with a typeahead behavior so users can enter the search value.

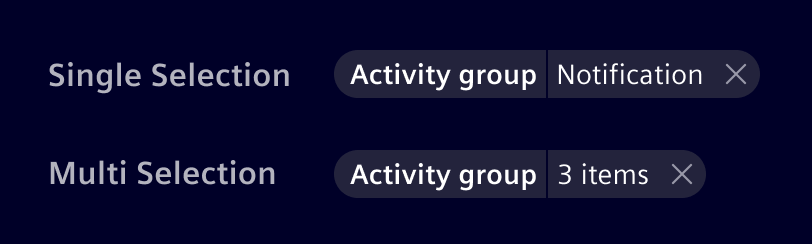

If more than one value is selected, an item count shall be shown in the filter pill.

Code¶

Assume you are searching for a person of a specific company and location. Company and location are criteria with possible options like Siemens, Maximago or Munich, Zug, etc. You can define possible search criteria by providing these criteria with the input [criteria] as one object. On pressing return, the (doSearch) output callback event will provide you with an object describing the selected criteria and the additional string, the user entered.

The Criterion type is used as input and output data type for this component. It always has a name and optionally a label that is used for displaying to the UI. As an input object, the options property is used to specify, which options the users can select as value for the criterion. These options can be an array of strings or an array of OptionCriterion which allows to specify a value for the label and different value for doing the search. When search is activated, the callback sets the selected option (the value itself or the value property if OptionCriterion is used) as value in the Criterion object.

For more advanced use cases, custom comparison operators (e.g. > or !=) can be used besides of the standard equal operator, while also restricting the input to match a certain data type (e.g. string or integer). See the custom operators example for details.

By default, the user is allowed to enter additional criteria and criterion values than initially configured. Additional criteria can be created by adding a : after the written criteria (e.g. additional:).

Also good to know is that Criterion values are editable after they're created. So you don't have to drop the whole Criterion.

This component uses CSS Variables to make sizes and colors adjustable on the fly. Use the variable --filtered-search-font-size in combination with --filtered-search-line-height to adjust the size of the component.

Usage¶

import { SiFilteredSearchComponent } from '@siemens/element-ng/filtered-search';

@Component({
  imports: [SiFilteredSearchComponent, ...]
})

Filtered search - Basic¶

The following provides a basic example with pre-configured criteria and their options. At a minimum, you must define the criteria. Other optional parameters to define are:

• (doSearch) output for handling when user submits search criteria
• [placeholder] input for placeholder (empty string by default)
• [submitText] input for configurable 'submit' text ('Apply search criteria' by default)

Filtered search - Basic with predefined search criteria¶

This sample extends the first one by preselecting criteria.

Filtered search - Lazy loaded criteria values¶

In many cases, your application defines the criteria, but the values need to be loaded from a server. In this case you can provide an function that returns the possible criterion options as an Observable.

Filtered search - Lazy loaded criteria and category values¶

In addition to lazy loaded value, you can also lazy load the criteria itself.

Filtered Search - Strict criteria¶

If you only allow the criteria defined, use [strictCriterion] to specify it.

Filtered search - Strict category values¶

If you only allow the criteria options defined, use [strictValue] to specify it.

[strictValue] enforces [strictCriterion] to true automatically.

Filtered search - Trigger search value input¶

[doSearchOnInputChange] filters not applied explicitly ("Apply search criteria") only but implicitly while typing or selecting the search criteria.

You can use [searchDebounceTime] to change the delay between the key stroke and the search emission.

Filtered search - Custom operators¶

For more advanced use cases, the Criterion type also allows to specify custom comparison operators via the operators property. The operators are an array of strings like !=, <, >, etc. The selected operator is then saved in the operator property. To restrict the type of value, the validationType property can be set to any of these values: string, integer, or float. See the following example on how these properties can be used to filter for a certain temperature range:

Filtered search - DatePicker¶

The following example shows the datepicker's use:

Filtered search - Multi Select¶

The following example shows the use of multi select criterion:

SiFilteredSearchComponent API Documentation¶

Input Properties¶

Name	Type	Default	Description
clearButtonLabel ¶	TranslatableString	$localize`:@@SI_FILTERED_SEARCH.CLEAR:Clear`	Clear button aria label. Needed for a11y
colorVariant ¶	BackgroundColorVariant	'base-1'	Color variant to determine component background
criteria ¶	(Criterion[] | CriterionDefinition[])	[]	Predefine criteria options.
disabled ¶	boolean	false	Disable any interactivity.
disableFreeTextSearch ¶	boolean	false	Disables the free text search to only use the criterion for filtering.
disableSelectionByColonAndSemicolon ¶	boolean	false	By default, the Filtered Search will treat : as a special character to submit the current input in the freetext and immediately create a criterion. Use this input to disable this behavior.
doSearchOnInputChange ¶	boolean	false	If this is set to true , the search triggers for each input (implicit search). By default, the search is triggered when the user submits by pressing the search button or by pressing enter.
exclusiveCriteria ¶	boolean	false	Opt-in to search for each criterion only once.
itemCountText ¶	TranslatableString	$localize`:@@SI_FILTERED_SEARCH.ITEM_COUNT:{{itemCount}} items`	Items count text appended to the count in case of multi-selection of values. Translation key, {{itemCount}} in the translation will be replaced with the actual value.
lazyCriterionProvider ¶	(typed: string, searchCriteria: SearchCriteria) => Observable<(Criterion[] | CriterionDefinition[])>		In addition to lazy loaded value, you can also lazy load the criteria itself
lazyLoadingDebounceTime ¶	number	500	Custom debounce time for lazy loading of criteria data.
lazyValueProvider ¶	(criterionName: string, typed: (string | string[])) => Observable<OptionType[]>		In many cases, your application defines the criteria, but the values need to be loaded from a server. In this case you can provide a function that returns the possible criterion options as an Observable.
maxCriteria ¶	number	undefined	Limit the number of possible criteria. The default is undefined so that any number of criteria can be used. For example, setting the value to 1 let you only select one criterion that you need to remove before being able to set another one.
maxCriteriaOptions ¶	number	20	Defines the maximum options within one criterion. The default is 20 and 0 means unlimited.
onlySelectValue ¶	boolean	false	Limit criterion options to the predefined ones and prevent typing. [onlySelectValue] enforces [strictValue] and [strictCriterion] to true automatically.
optionsInScrollableView ¶	number	10	Defines the number of criteria, criteria values and operators visible at once.
placeholder ¶	string	''	The placeholder for input field.
searchCriteria ¶	SearchCriteria	{ criteria: [], value: '' }	The current selected search criteria and entered search text.
searchDebounceTime ¶	number	0	Custom debounce time (in mills) to delay the search emission. (Default is 0 as in most cases a users manually triggers a search. Recommended to increase a bit when using doSearchOnInputChange=true)
searchLabel ¶	TranslatableString	$localize`:@@SI_FILTERED_SEARCH.SEARCH:Search`	Search input aria label, Needed by a11y
strictCriterion ¶	boolean	false	Limit criteria to the predefined ones.
strictValue ¶	boolean	false	Limit criterion options to the predefined ones. [strictValue] enforces [strictCriterion] to true automatically.
submitButtonLabel ¶	TranslatableString	$localize`:@@SI_FILTERED_SEARCH.SUBMIT_BUTTON:Submit search`	The accessible label of the search button.
typeaheadOptionsLimit ¶	number	20	Limit on the number of criteria/criteria value to be displayed by the typeahead
readonly ¶	boolean	false	Do not allow changes. Search can still be triggered. Deprecated: Use disabled instead.

Output Properties¶

Attributes and Methods¶

Types Documentation¶
