Skeleton¶

Usage¶

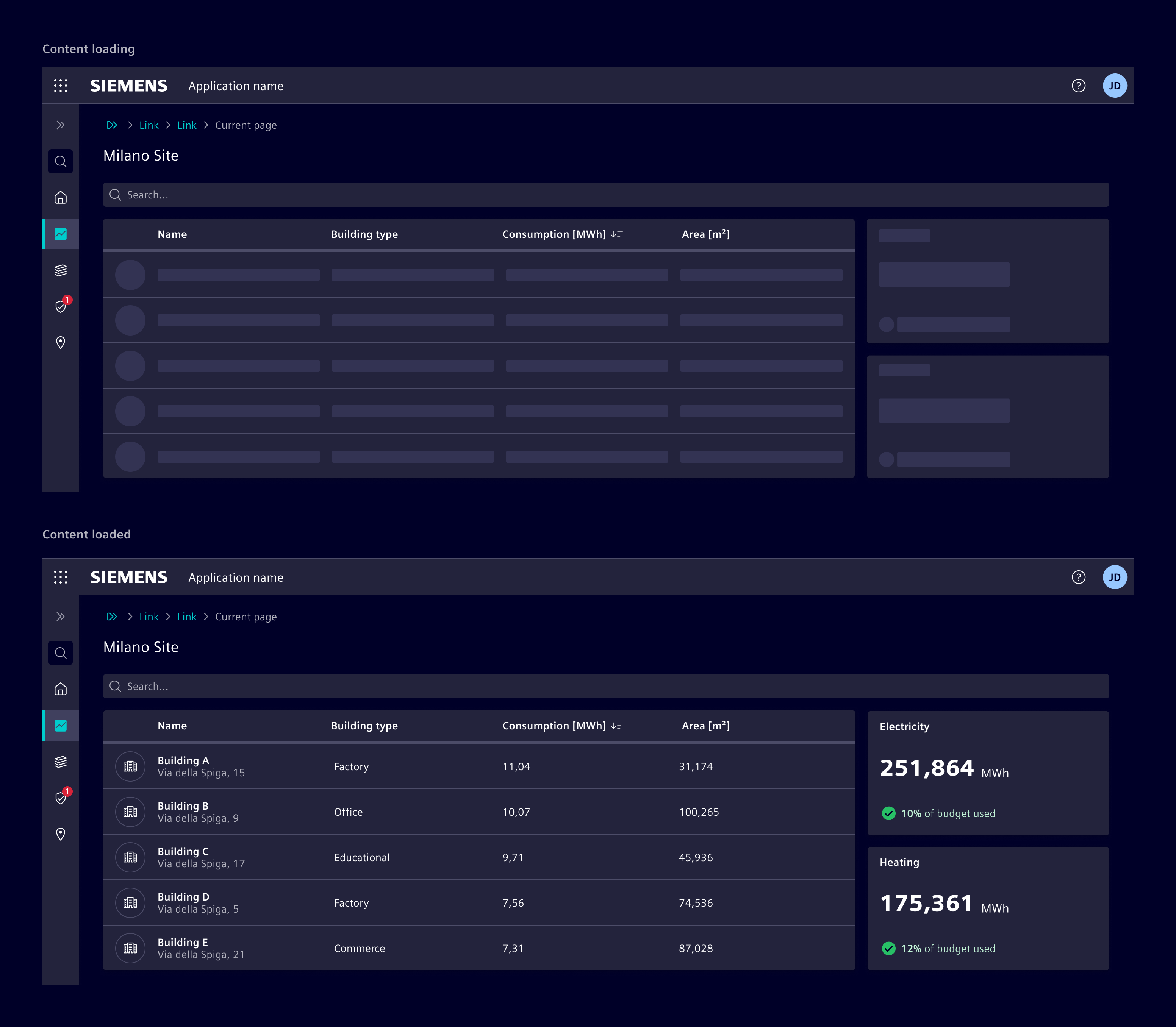

Skeleton placeholders are temporary and simplified representations of page components that are displayed during the initial page load.

They follow the shape and form of what will be loaded, representing the layout and spacing of the actual content.

Rather than using skeleton placeholders to represent entire containers, it's generally better to use them for specific data-driven components that may take longer to load, such as tables, lists, and images.

When to use¶

• To create an illusion of short page loading times when the load time is unknown.
• Use it when a spinner component is not prominent enough.
• Use when there’s more than one element loading at the same time that requires an indicator.
• Use it only for the most significant graphic elements such as avatars, cards, content blocks, lists, and tables.

Best practices¶

• Only show skeleton placeholders for a few seconds, hiding them once components and content populate the page.
• Avoid using it for action components (e.g. buttons, checkboxes, toggles).
• Avoid using skeleton placeholders to represent components that contain other components such as cards, accordions, and other layout elements.
• Map the skeleton placeholders to the expected size and shape of the data that will be replacing it once loaded.
• Don't use it for static content that never changes on a page, such as page titles, headings, and body text.
• Don't use it for fast processes that take less than 300ms.
• When giving feedback for in-context operations, use the spinner or progress bar component.

Design¶

Typographic skeletons¶

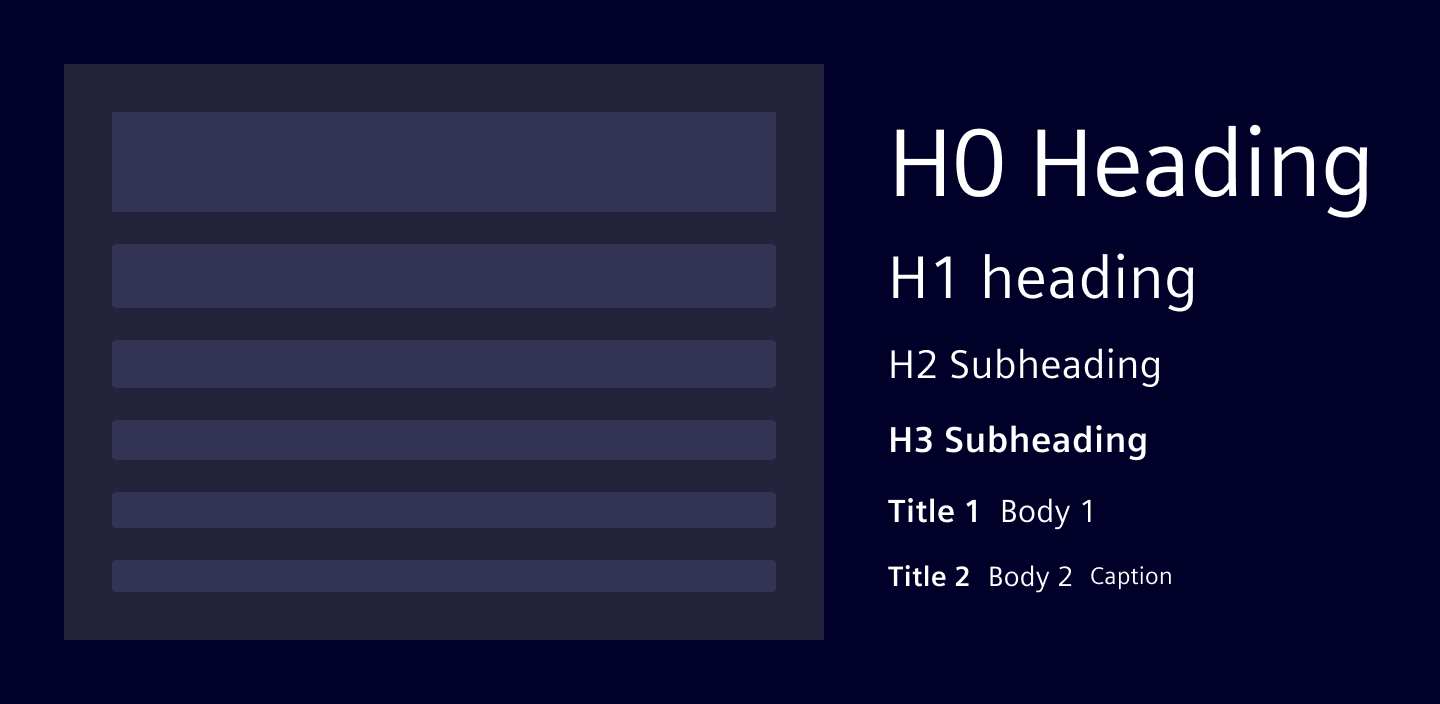

Typographic skeletons represent placeholders for text content. The size of the skeletons is based on the typographic style of the parent element.

When dealing with a lot of text, such as lists or tables, set a common length for all placeholders to help maintain a consistent visual pattern.

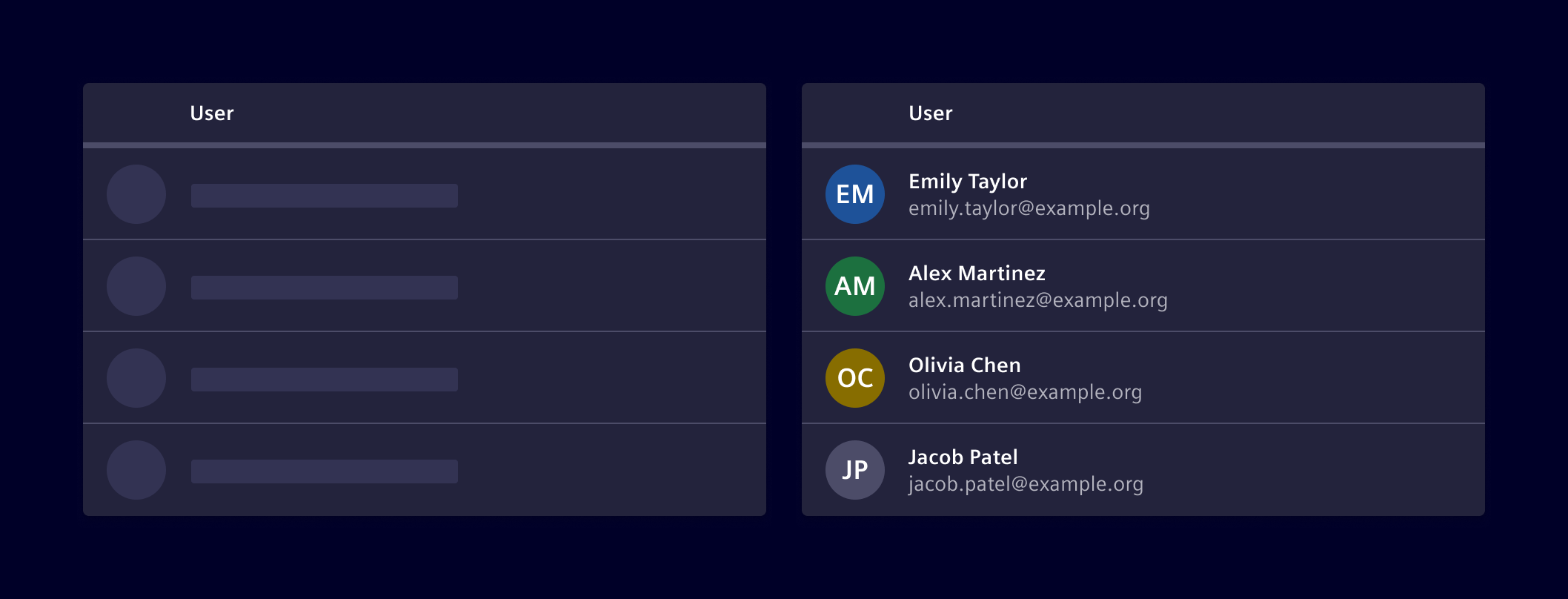

For stacked lines of text, consider simplifying the representation by using a single skeleton to indicate both lines. This reduces complexity while conveying the layout and structure effectively.

Shape skeletons¶

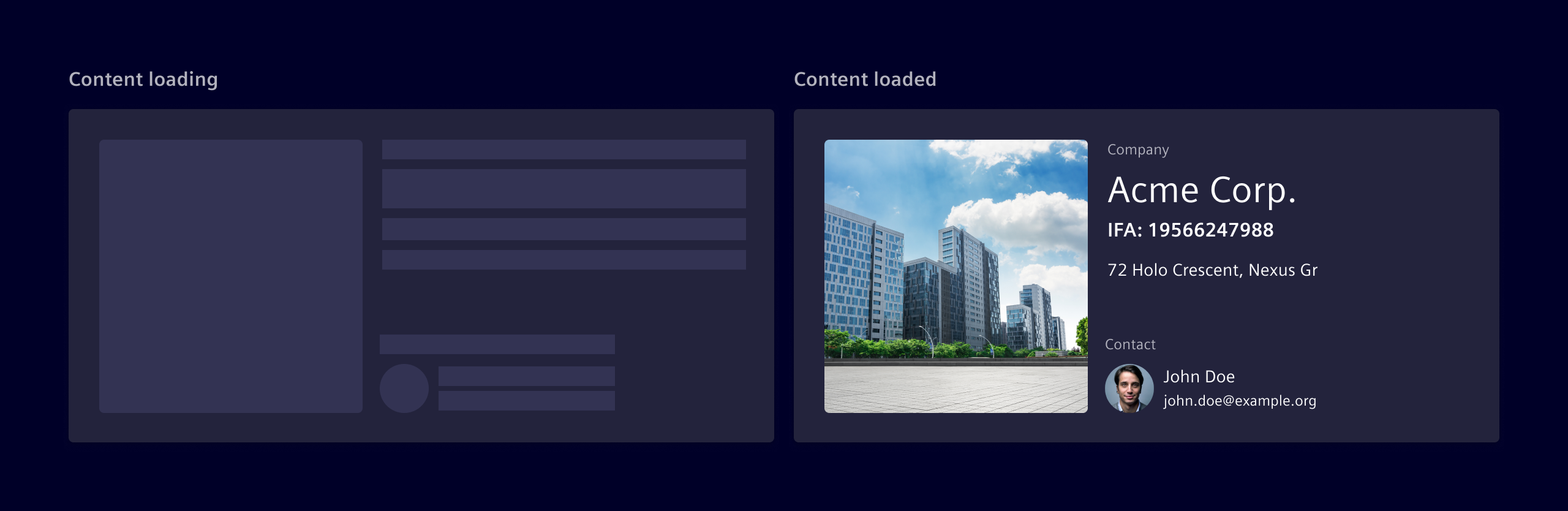

Shape skeletons represent placeholders for graphic elements such as icons, avatars, and images.

To cover all possible graphic elements, shape skeletons can be either circular or rectangular. Ensure that their size matches one of the graphic elements they are representing.

Animation¶

The skeleton placeholder uses a shimmering animation to provide a visual cue that content is being loaded. This effect is created by a gradient moving from left to right (in RTL languages, the gradient direction should be inverted), which helps to make the experience feel faster and more seamless.

Code¶

Usage¶

Use the si-skeleton CSS class on any element to render a skeleton placeholder. While loading data, display a HTML structure that is common to the final page structure, but displays the skeleton as placeholder for data. Replace the placeholders when loading is completed.

By default, the block-size height is 1em to meet the text height. Adjust the width (e.g. w-100) and the height for none text elements.
