Vertical navigation¶

Usage¶

The vertical navigation is positioned below the application header and aligned to the left in the content area (for LTR languages).

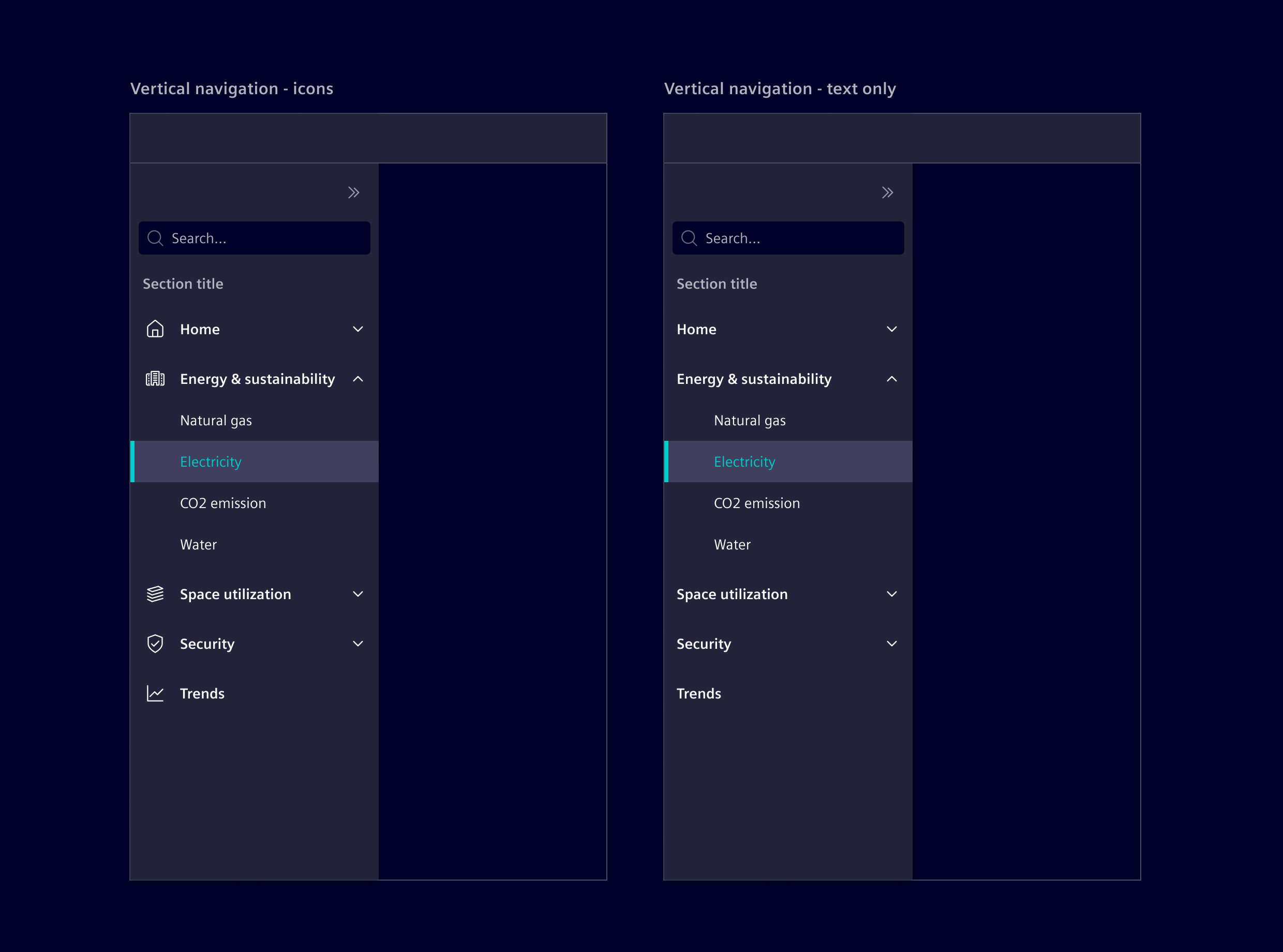

There are two variants: one with icons and labels, and another with text labels only. Both variants can be collapsed to free up additional screen space.

When to use¶

• When the application requires a persistent side menu for organizing navigation elements in a clear, accessible manner.

Best practices for vertical navigation¶

• Only use icons if they clearly convey the intended meaning.
• Limit navigation to two tiers. For deeper content organization, consider using tabs, accordions or another navigation pattern.

Design¶

Elements¶

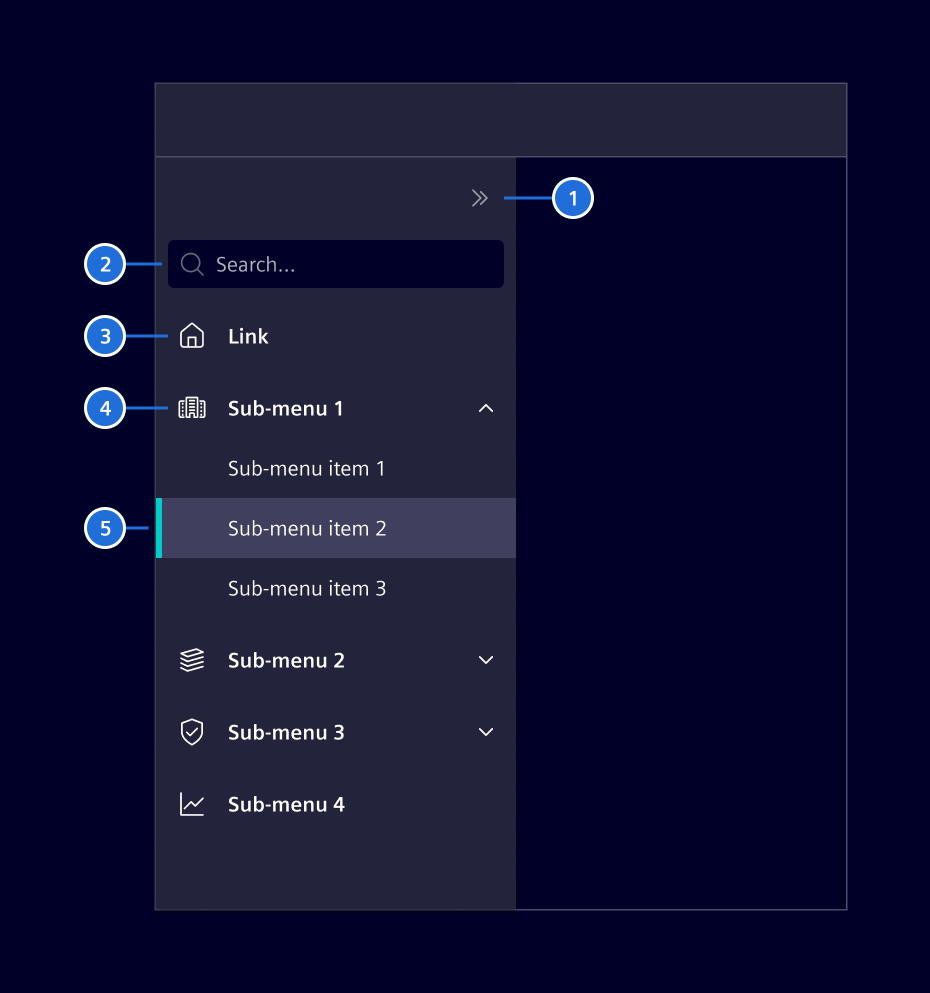

The vertical navigation can be configured with optional links, sub menus, and search, with only Expand/Collapse control being required.

Labels¶

Labels have to be short and concise with a maximum of two words. The label will be truncated at the end with 3 ..., if there is no sufficient space.

Expand / Collapse¶

The vertical navigation with icons supports the possibility to be expanded or collapsed to provide additional screen real estate.

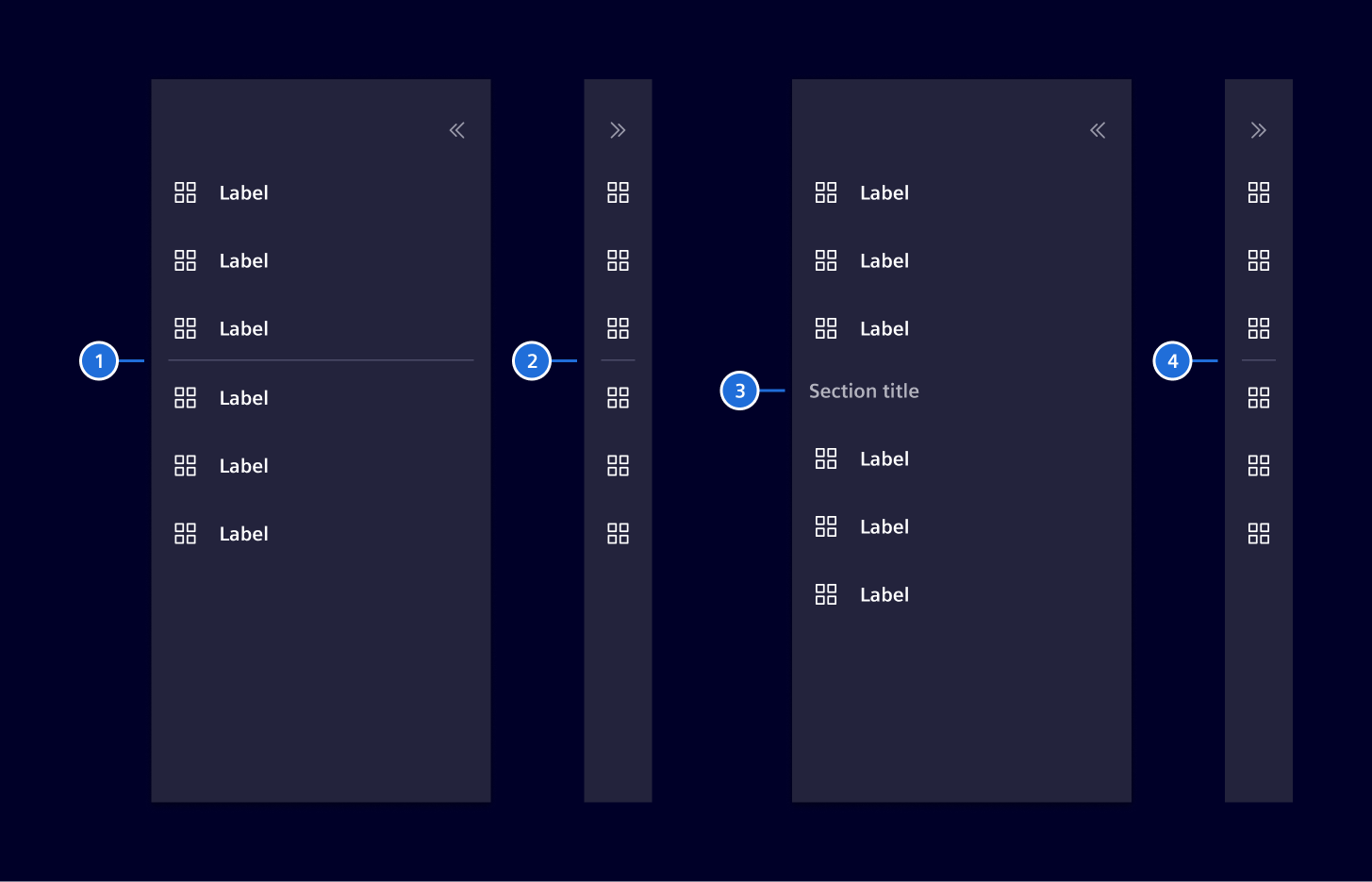

1. Divider expanded, 2. Divider collapsed, 3. Section title expanded, 4. Section title collapsed

Item organization¶

Vertical navigation items can be organized into sections to enhance clarity and navigation flow. There are two methods:

• Dividers: Use it to separate items without labels. Is best for intuitive relationships where categories are unnecessary.
• Section titles: Apply section titles to label and categorize groups. Use for distinct categories requiring clear hierarchy.

Use either method individually or combine them, but avoid overuse, as it can make the navigation feel cluttered.

1. Divider expanded, 2. Divider collapsed, 3. Section title expanded, 4. Section title collapsed

Badges (optional)¶

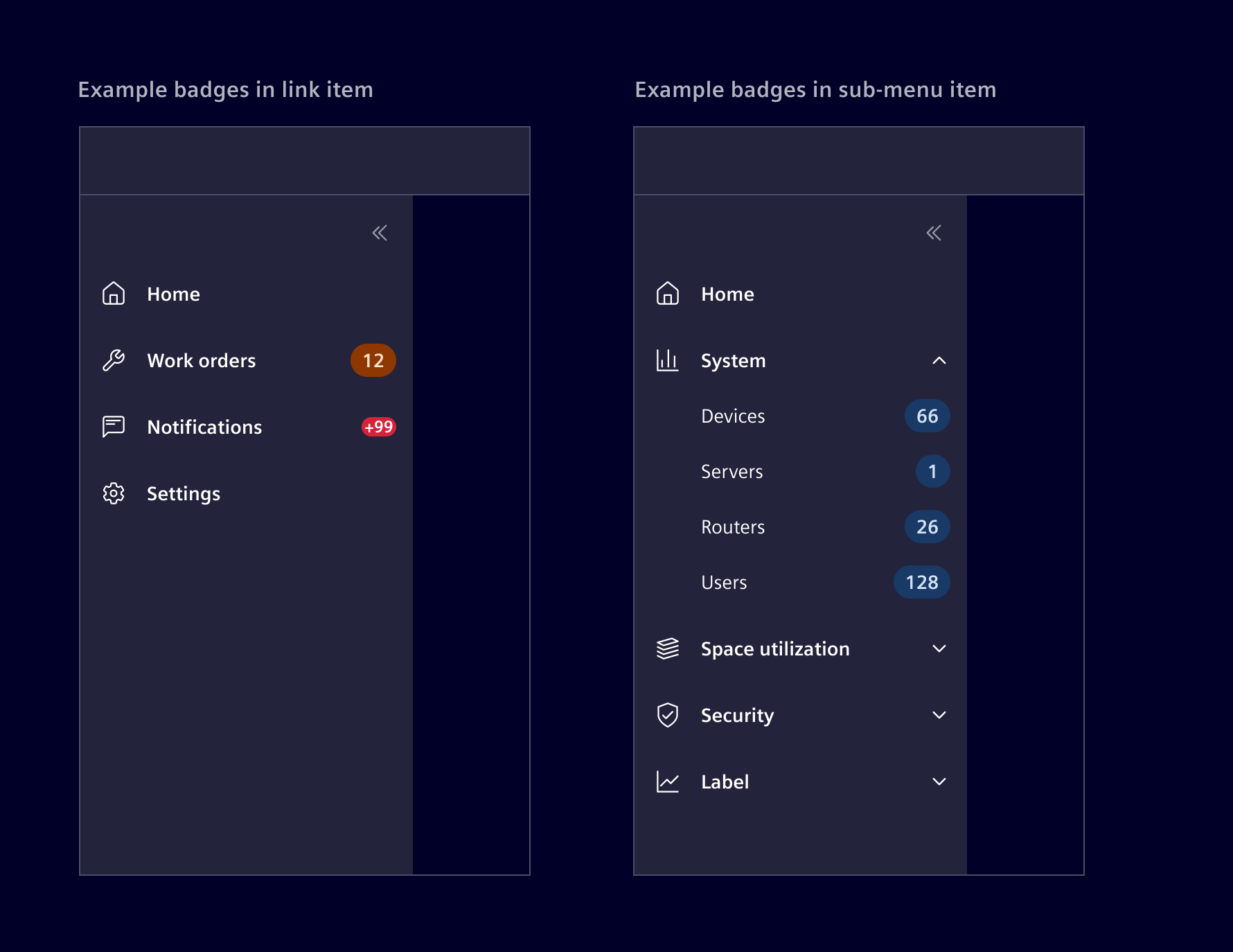

Items can also include badges to provide users with quick, at-a-glance information, such as notifications or counts. For sub menus, badges should only be used on child elements.

Responsive behavior¶

The vertical navigation expands over the full height of the screen. It comes with a fixed width of 240px (expanded) or 48px when collapsed. If the height is not enough to show all the navigation menus, then a scrollbar will be available.

Code¶

Usage¶

import { SiNavbarVerticalComponent } from '@siemens/element-ng/vertical-navbar';

@Component({
  imports: [
    SiNavbarVerticalComponent, ...
  ]
})

Vertical navigation - icons & labels¶

To get a vertical navigation with icons, make sure to set icons for the top level items. No further configuration is necessary as [textOnly]="false" is the default value.

Vertical navigation - text labels only¶

To get a vertical navigation without icons, i.e. labels only set [textOnly]="true".
