Accordion¶

Usage¶

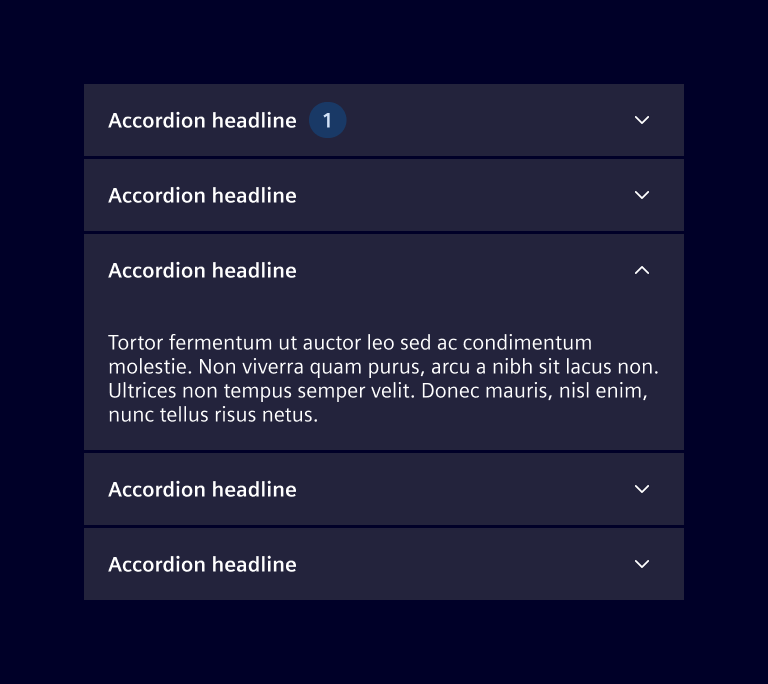

Accordions are often used to display large amounts of related information in a condensed, organized manner. By collapsing and expanding sections, users can focus on the selected content.

The title in the header gives a preview of the content, allowing to find the looked after information quickly and efficiently. For sections containing lists or data, a badge can offer a quick summary, such as the total number of items.

When to use¶

• When users need to focus on key information without viewing all content at once.
• To group related information clearly and in a way that's easy to navigate, improving content understanding.
• When space is limited, allowing users to hide irrelevant content, especially in side panel or on mobile screens.
• Use it for content that is not immediately necessary but still useful for users to access when they need it.

Best practices for accordions¶

• Don't use it when users need most or all of the content on the page to accomplish their task.
• Keep the number of sections manageable to avoid clutter.
• Consider expanding important sections by default.
• Avoid using them for primary navigation or essential information.

Design¶

Elements¶

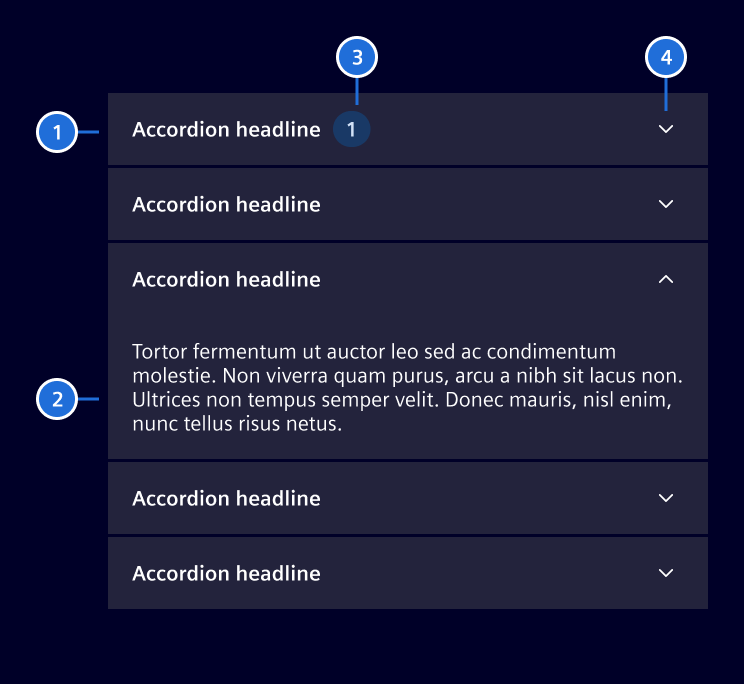

1. Header, 2. Content, 3. Badge (optional), 4. Expand/collapse indicator

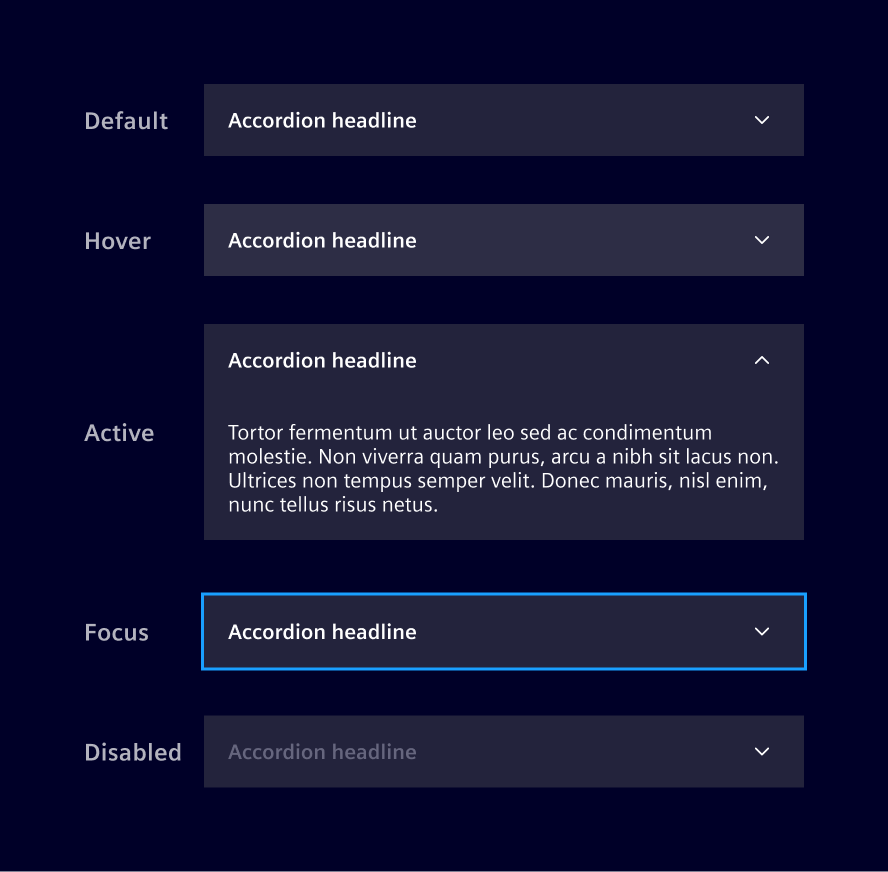

States¶

Placement¶

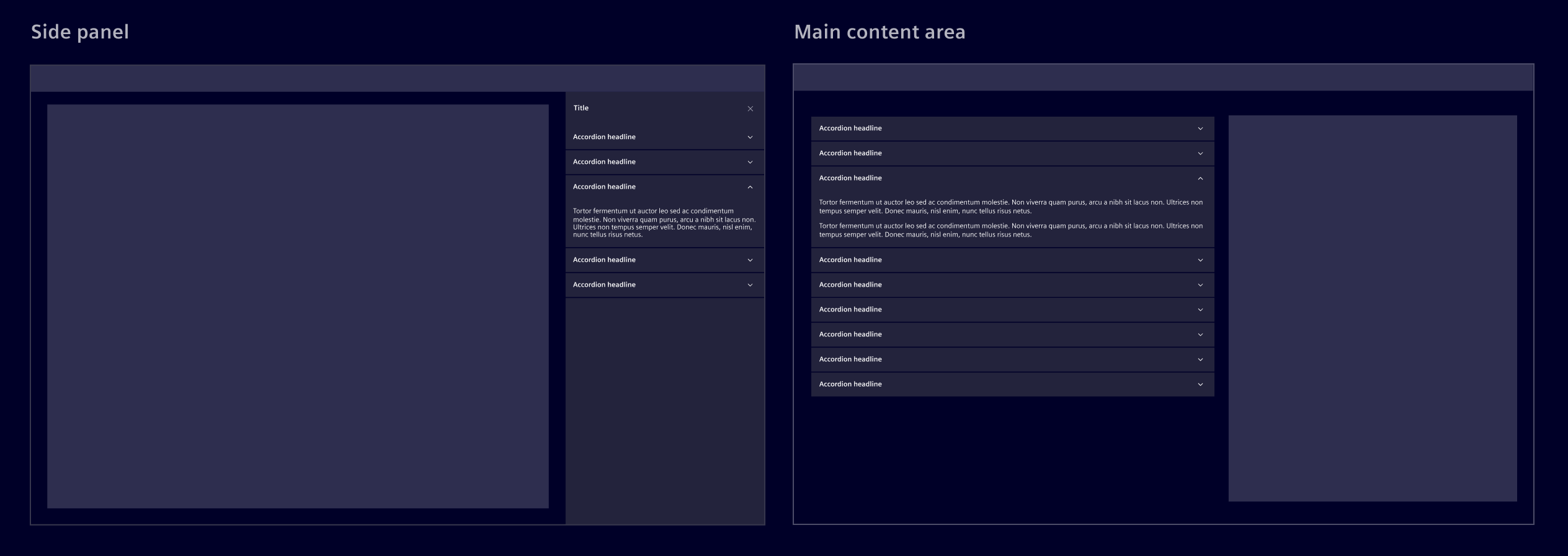

Accordions can be used in either the side panel or within the main content area.

Collapsible panels variants¶

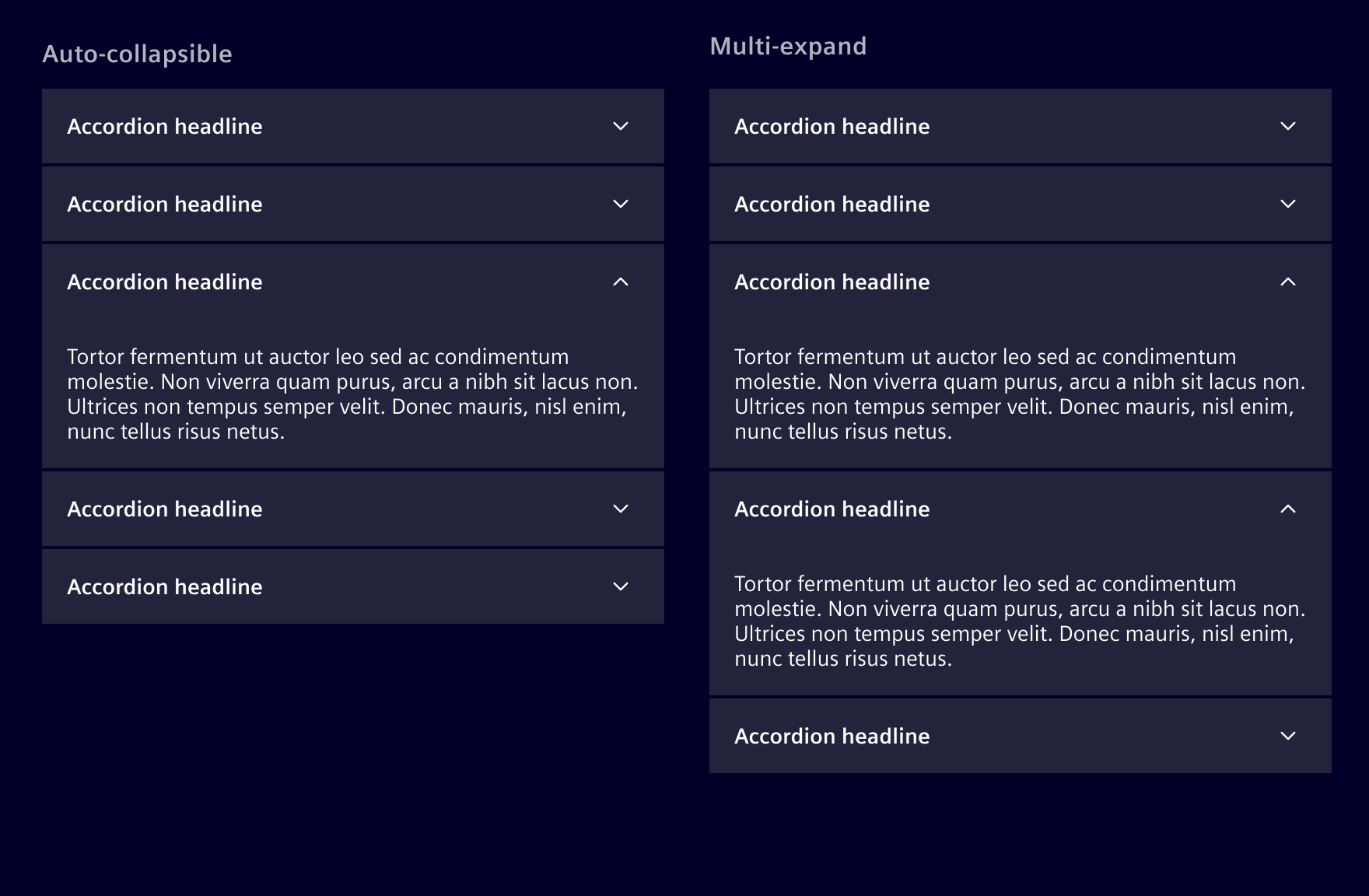

According to the use case, the accordion sections can be auto-collapsible or multi-expand.

• Auto-collapsible accordions allow only one section to be open at a time.
• Multi-expand accordions allow multiple sections to remain open simultaneously.

As a general rule, it's best to allow users to open multiple sections simultaneously, enabling them to view and compare different sections at once. Use the auto-collapsible accordion if the information in each section is independent and users are unlikely to need simultaneous access.

Scrolling behavior¶

When the content length exceeds the viewport, the entire accordion should scroll vertically. Avoid scrolling within individual sections.

Code¶

Usage¶

si-accordion can be imported using the module

import { SiAccordionModule } from '@siemens/element-ng/accordion';

@NgModule({
  imports: [SiAccordionModule, ...]
})

or as a standalone component

import { SiAccordionComponent, SiCollapsiblePanelComponent } from '@siemens/element-ng/accordion';

@Component({
  imports: [
    SiAccordionComponent,
    SiCollapsiblePanelComponent,
    ...
  ]
})

The basic element is <si-collapsible-panel> which consists of a heading and collapsible content. Use as many as required. The panels can be used with or without the accordion effect provided by <si-accordion>, see the two examples:

Collapsible Panels¶

In this example, collapsible panels are used without an accordion allowing multiple panels staying open at the same time.

In the next example, we combine the panels with icons and additional header CSS classes.

Custom heading¶

The collapsible panel supports customizing the heading via content projection by applying the si-panel-heading directive to an HTML element as shown in the example below:

<si-collapsible-panel contentCssClasses="p-6">
  <span si-panel-heading>Heading via <mark>content projection</mark></span>
  The panel content
</si-collapsible-panel>

Full Accordion¶

The collapsible panels are wrapped with <si-accordion> to make sure only one panel is open at a time:
