Phone Number Input¶

The Phone Number Input allows a user to enter a phone number by selecting the country (international area code) from a dropdown list and entering the rest of the number in a text input field.

Usage¶

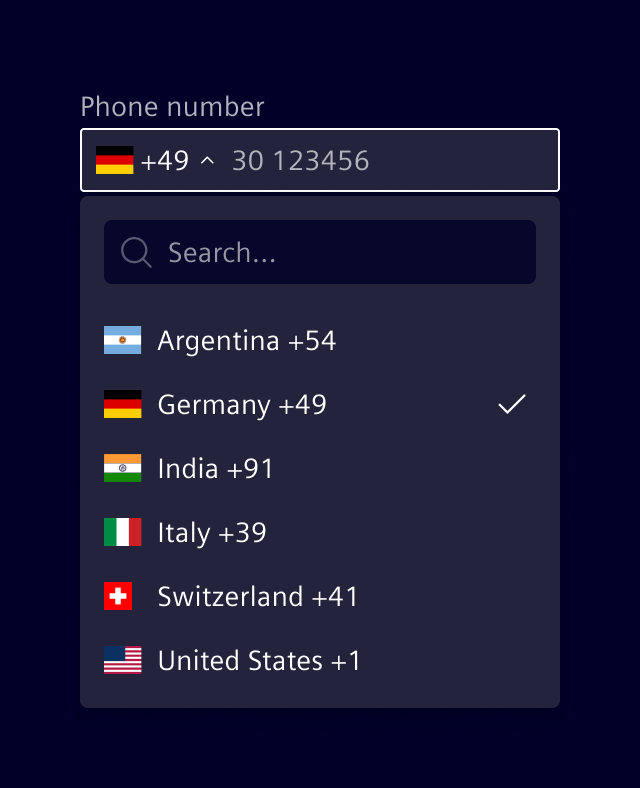

Phone Number Input

When to use¶

For allowing users to enter or update a phone number.
When validation and formatting of international phone numbers are required.

When not to use¶

When collecting non-phone number data, a standard Input component should be used.

Best Practices for Phone Number Input¶

Ensure the input field is wide enough to accommodate different international phone number formats.
Use smart defaults, such as showing the country code and phone number format based on the user's location.

Design¶

Elements¶

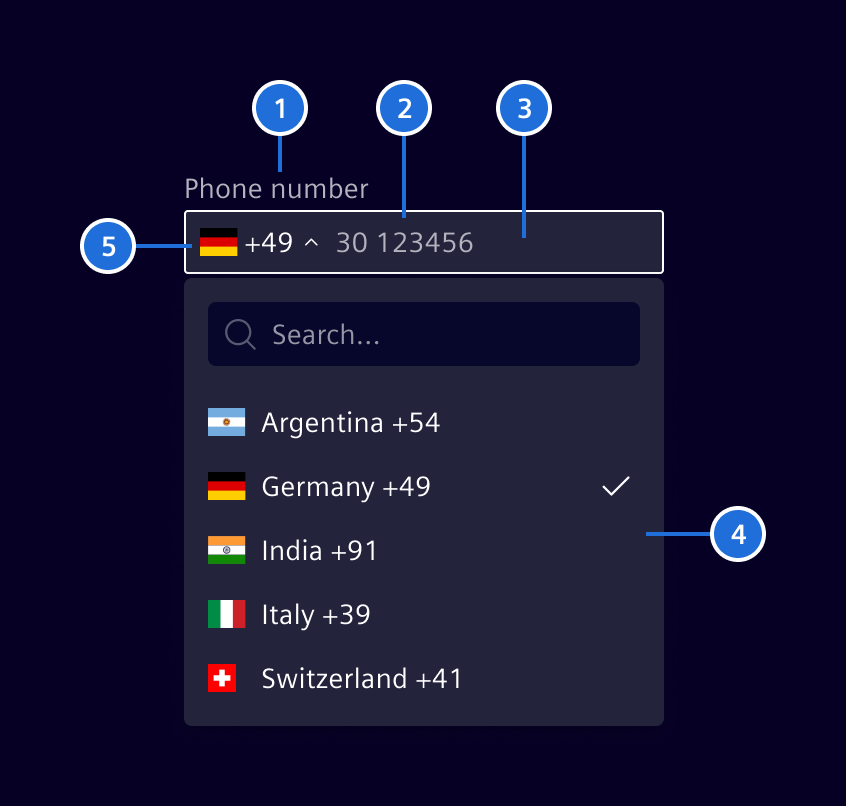

Phone Number Input - Elements

Label (optional) 2. Content/placeholder text, 3. Container, 4. Menu, 5. Country code with flag.

Label (optional)¶

Effective form labeling helps users understand what information to enter.

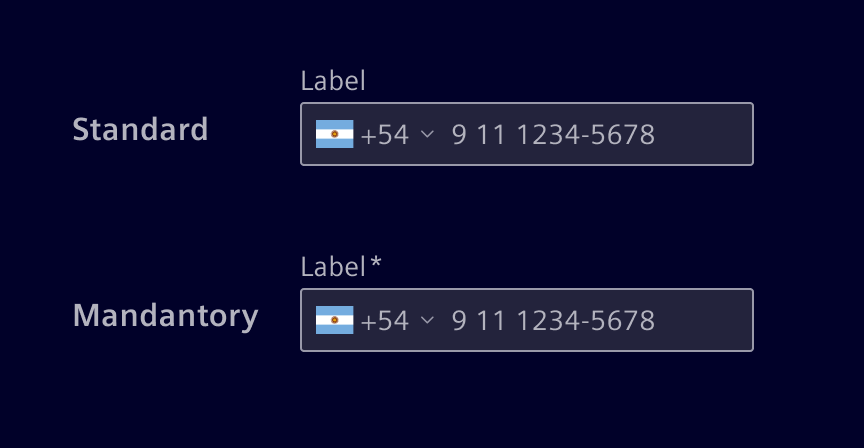

Phone Number Input - Label

Keep labels short and clear (should not be wider than the input field).
A mandatory field is marked with an *-asterisk.

Interaction States¶

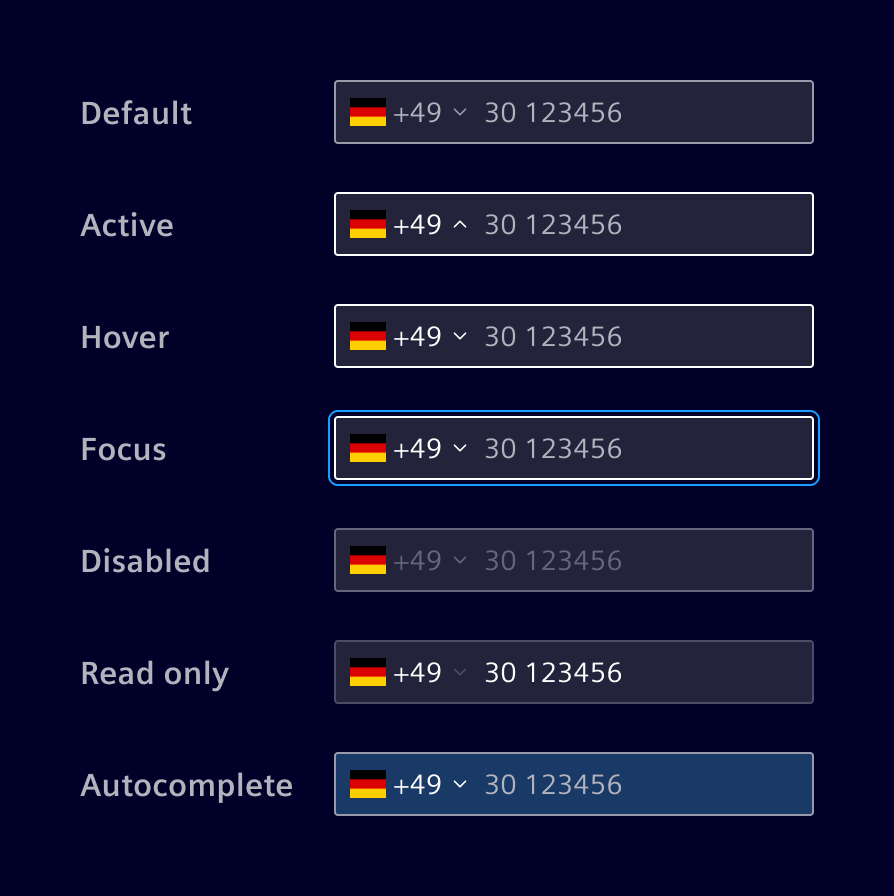

Number Input - States

Validation¶

Real-time validation ensures that the data being entered is within a specific range or follows certain rules, preventing errors and ensuring the integrity of the data.

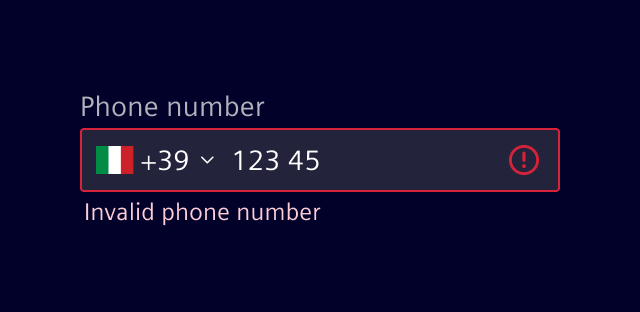

Phone Number Input - Validation

Code¶

Usage¶

import { SiPhoneNumberInputComponent } from '@siemens/element-ng/phone-number';

@Component({
  imports: [SiPhoneNumberInputComponent, ...]
})

Required Packages

The versions of the required packages are defined in the peer-dependencies of element-ng. Together with the types package, they are also part of the package.json of the demo app.

Ensure to import the node_modules/flag-icons/css/flag-icons.css to the angular.json styles configuration as follows:

          "styles": [
              "node_modules/flag-icons/css/flag-icons.css",
              ...
          ]

Set the supportedCountries input array to define the available list of countries. The countries are defined in ISO-3166-2 format.
To display all the available countries, don't add supportedCountries input.
Use the defaultCountry ISO-3166-2 input to select a default.
Set validatePhoneNumber input to enable a validation service and show status information in the form control.
Use the placeholderForSearch input for a custom placeholder text of the country search.
The selectCountryAriaLabel input sets the ARIA label for the country dropdown.
The phoneNumberAriaLabel input sets the ARIA label for the phone number input.
All changes are emitted through the valueChange output.
