Checkbox¶

Usage¶

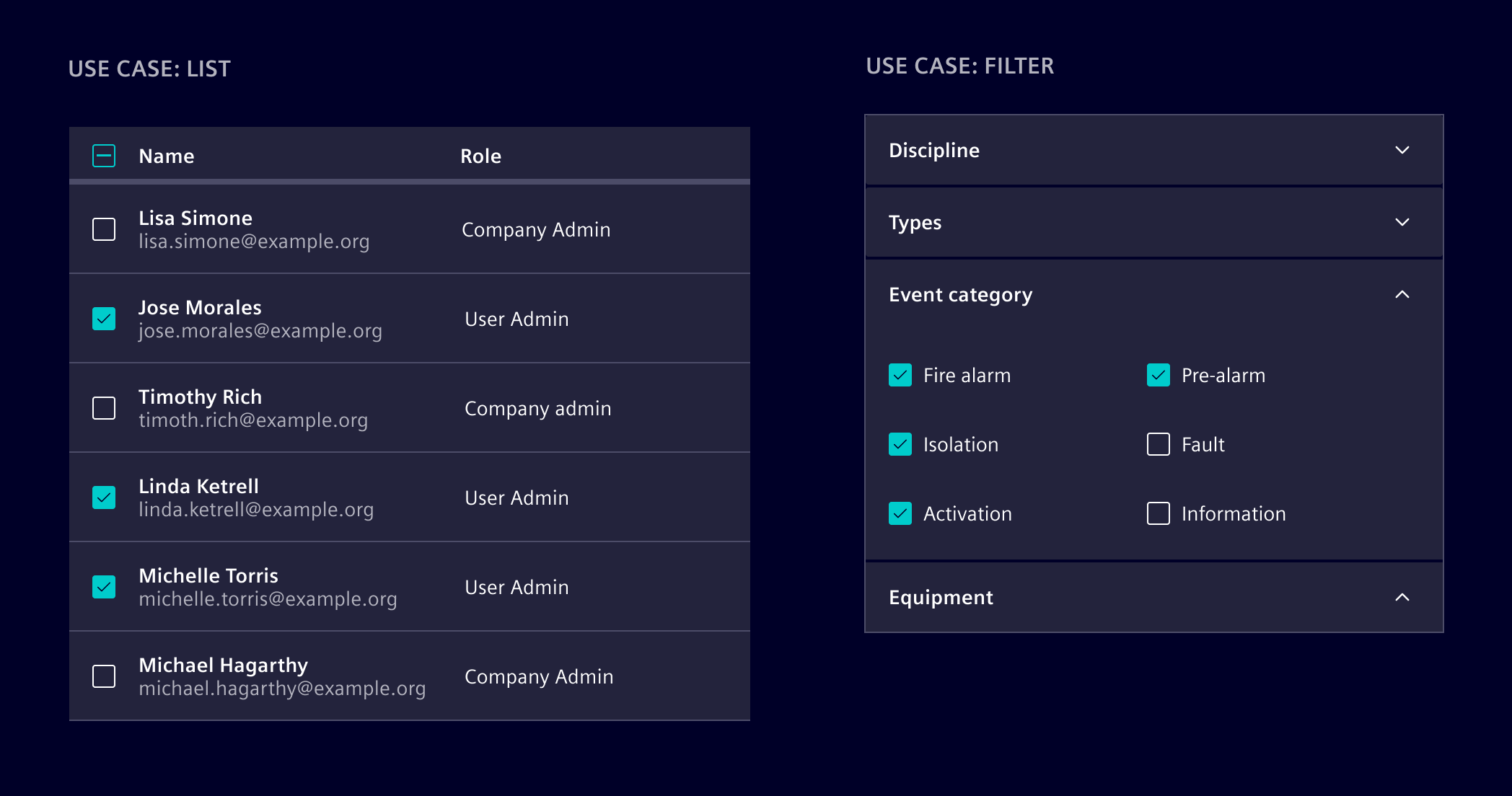

When to use¶

• In lists or data tables for batch editing purposes.
• In forms.
• For selection or filtering options.
• For setting preferences or settings.

Best practices¶

• Checkboxes should not be used to toggle a single option or setting. Use switch instead.
• If options are mutually exclusive, use radio buttons instead.
• Checkboxes should not be used to make important decisions, like confirming deletion, as they are easily overlooked by users.

Design¶

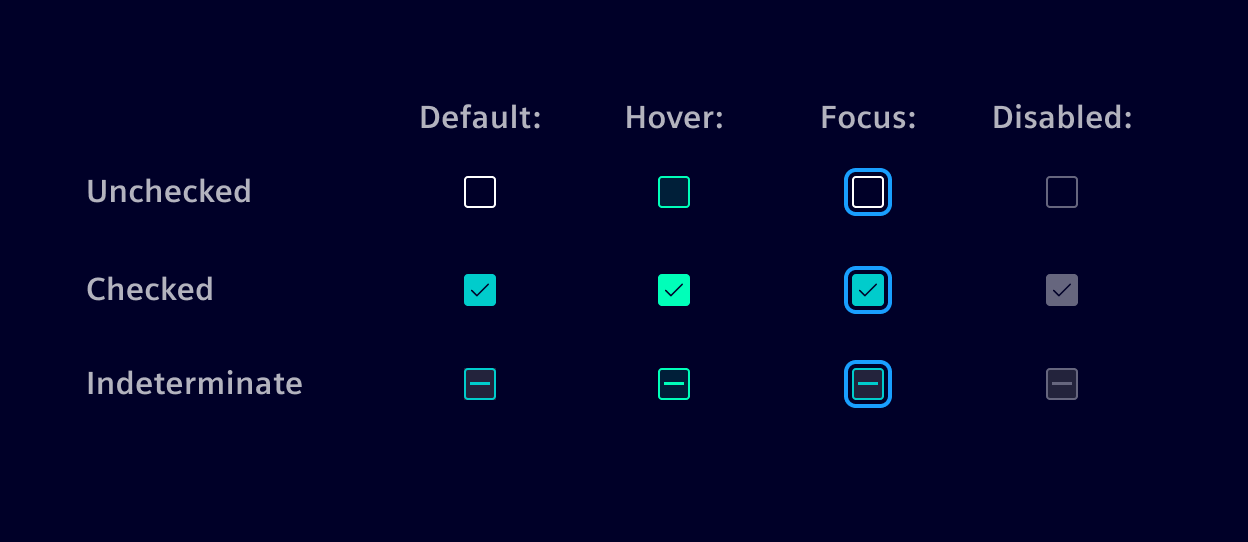

Interaction states¶

Users can trigger the interaction by clicking the checkbox input or the accompanying label.

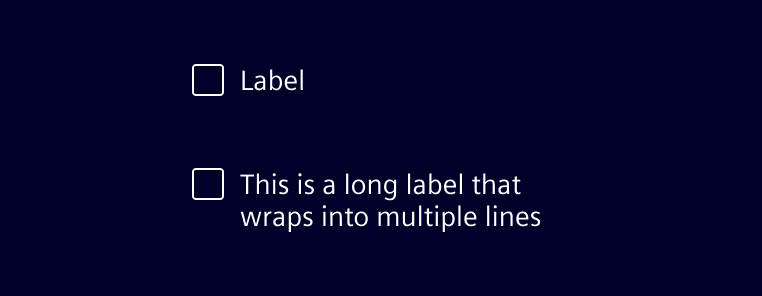

Labels¶

Always use clear and concise labels for checkboxes. Labels should always be placed to the right of checkbox inputs.

If labels are too extensive, try to reworded them to be shorter. If it's not possible, wrap the text to a second line so the checkbox and label are top aligned.

Code¶

In Element, checkboxes are created using the native <input type="checkbox"> element. They should be used together with the si-form-item component (see here).

<si-form-item label="Checkbox">
  <input type="checkbox" class="form-check-input" [formControl]="control" />
</si-form-item>

The class form-check-input and type="checkbox" must be applied to ensure correct visual appearance. Instead of formControl, you can also use ngModel.

Group checkboxes¶

Use the si-form-fieldset component to group multiple checkboxes together. It will ensure a correct layout and apply the necessary accessibility attributes.

<si-form-fieldset label="Group">
  <si-form-item label="Option 1">
    <input type="checkbox" class="form-check-input" [formControl]="control1" />
  </si-form-item>
  <si-form-item label="Option 2">
    <input type="checkbox" class="form-check-input" [formControl]="control2" />
  </si-form-item>
</si-form-fieldset>

By default, the checkboxes are stacked vertically. To display them inline, apply the form-check-inline class to the si-form-item:

<si-form-fieldset label="Group Inline">
  <si-form-item label="Option 1" class="form-check-inline">
    <input type="checkbox" class="form-check-input" [formControl]="control1" />
  </si-form-item>
  <si-form-item label="Option 2" class="form-check-inline">
    <input type="checkbox" class="form-check-input" [formControl]="control2" />
  </si-form-item>
</si-form-fieldset>

Native HTML markup¶

If a si-form-item component cannot be used, it is also possible to use the checkbox with native HTML elements only:

<div class="form-check">
  <input type="checkbox" id="check-id" class="form-check-input" />
  <label for="check-id" class="form-check-label">Checkbox</label>
</div>

In this case, all the attributes shown above must be set by an application. Otherwise, the checkbox may appear broken.

Alternatively, you can also wrap the input element into the label and skip adding the id.

<label>
  <input type="checkbox" class="form-check-input" />
  <span class="form-check-label">Check this custom checkbox</span>
</label>

To create an inline checkbox, additionally apply the form-check-inline class to the form-check div.
