Value dashboard widget¶

Usage¶

The Value Dashboard Widget displays key information, such as numerical values, and optionally include icons or indicators that highlight its nature or status.

It can include:

• A description to offer a clearer context.
• Links for navigation.
• Actionable items, like buttons or menus, to directly initiate tasks.

When to use¶

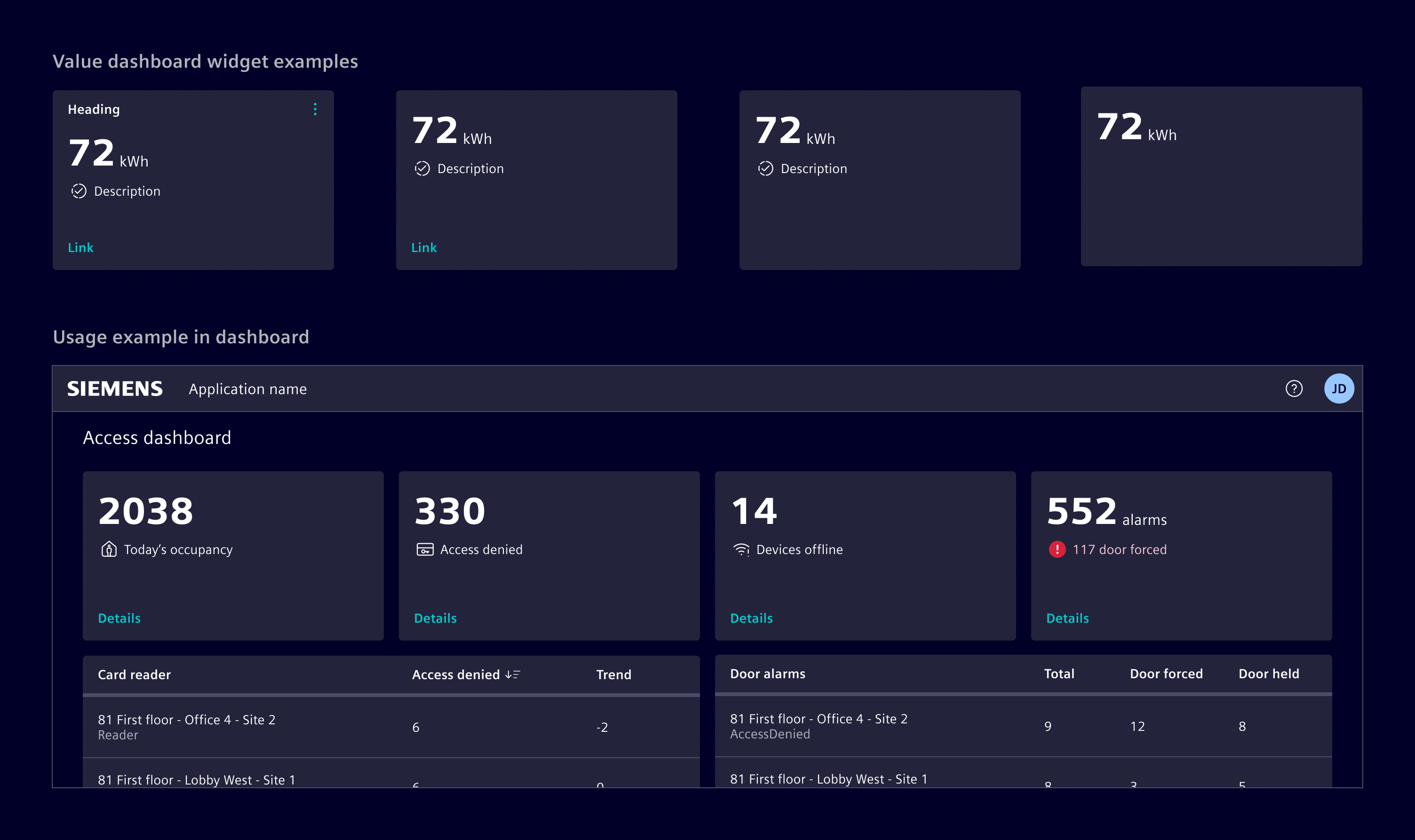

• In dashboards and tile layouts.
• To provide an at-a-glance overview of key metrics or information.
• To present actionable cards that lead to more detailed content or follow-up actions.

Best practices¶

• Display only the most relevant data.
• Prevent overcrowding by limiting the number of actions or visual elements.
• Include actions that are clearly related to the data shown.
• Maintain a design that is consistent with the overall dashboard.
• Optimize for performance to ensure responsiveness and a smooth user experience.
• Use skeleton to represent its loading state.

Design¶

Elements¶

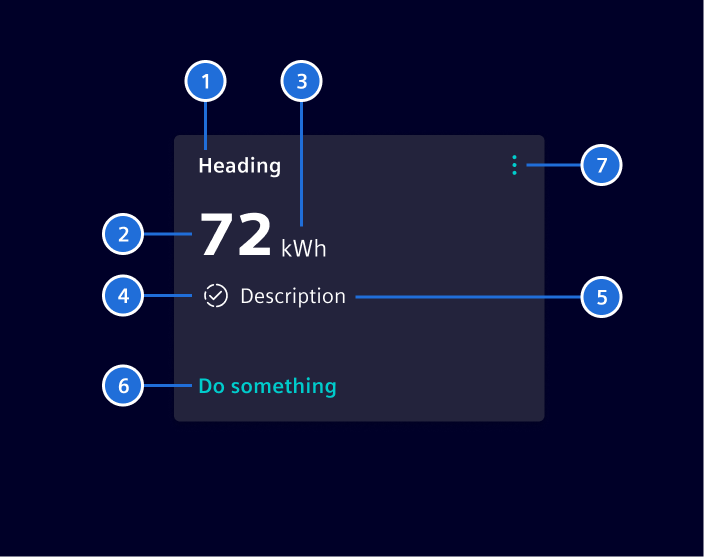

1. Heading, 2. Value, 3. Unit, 4.Icon/indicator, 5. Description, 6. Call-to-action (CTA), 7. Content Action Bar

With the exception of the Value (2), all items are optional.

Variants¶

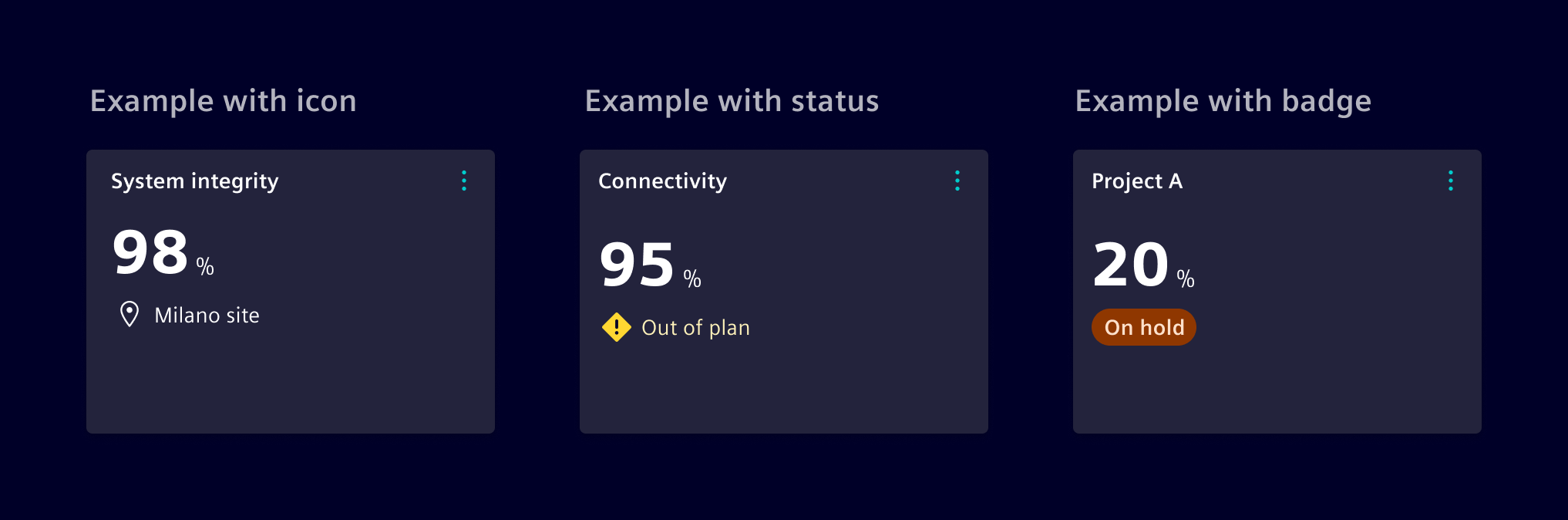

The icon/indicator can be adapted to show an icon, status or a badge.

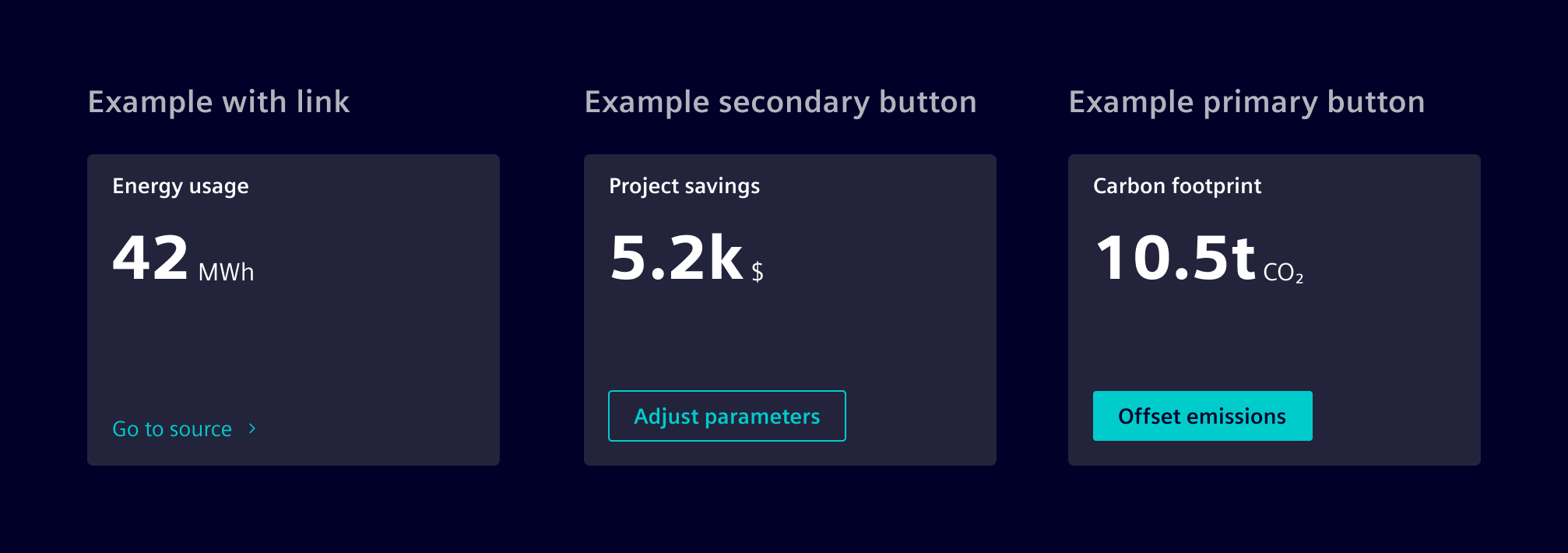

Value Dashboard Widget supports calls-to-action (CTAs), such as a buttons or links.

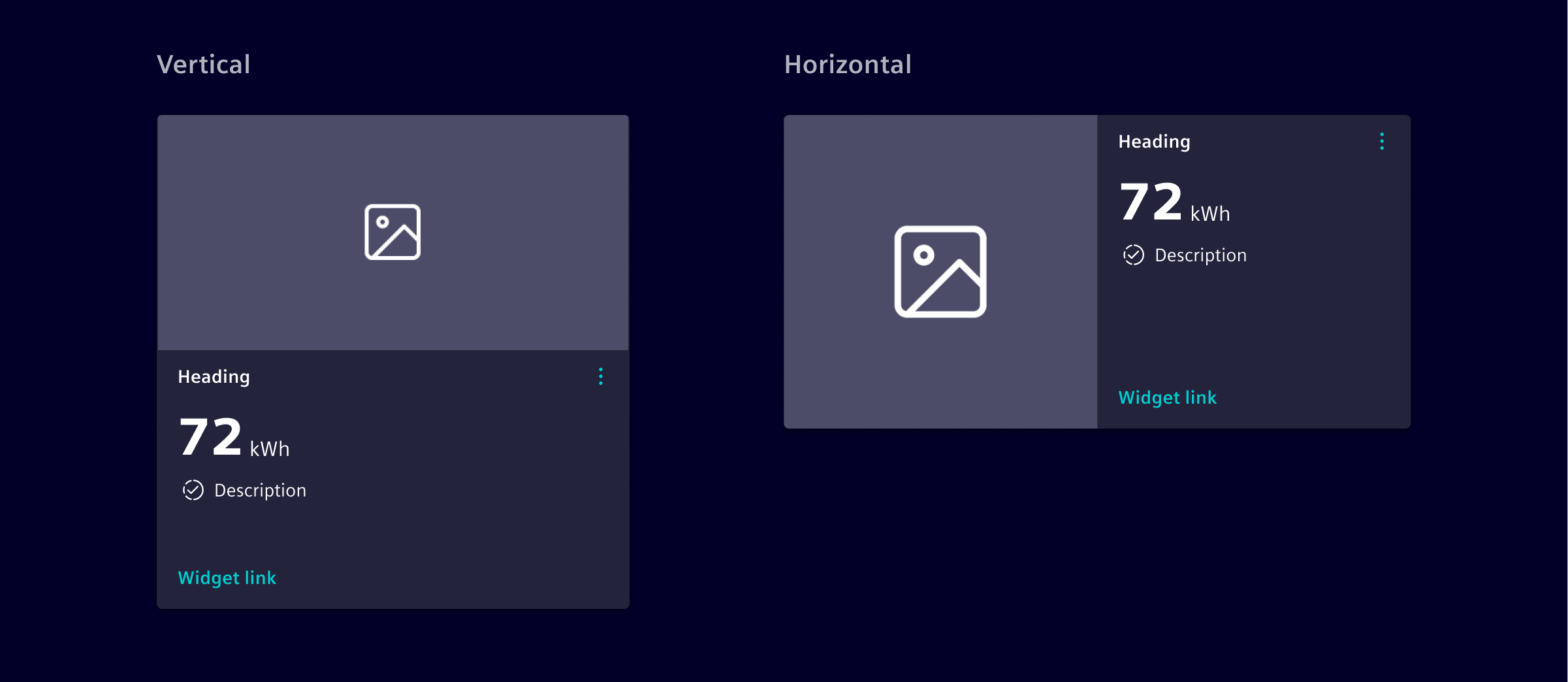

It is also possible to add an image, which can be configured to be either vertical or horizontal. The image size can be adapted according to the need.

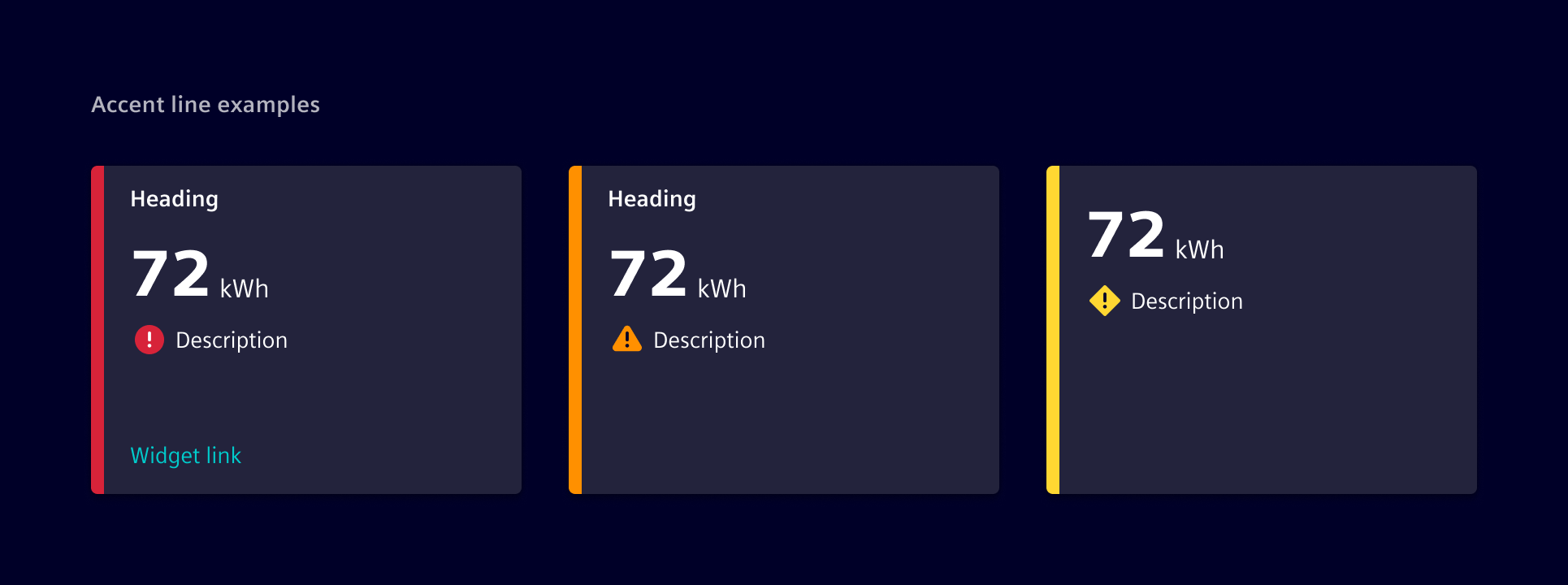

The widget can include an accent line, which acts as a status indicator to highlight critical information.

When there’s only one status, the accent line alone is enough to convey the message. For multiple statuses, the accent line should be combined with a status icon to give extra context.

If there’s a single status, the accent line alone is sufficient. For multiple statuses, pair the line with an appropriate icon to provide additional context.

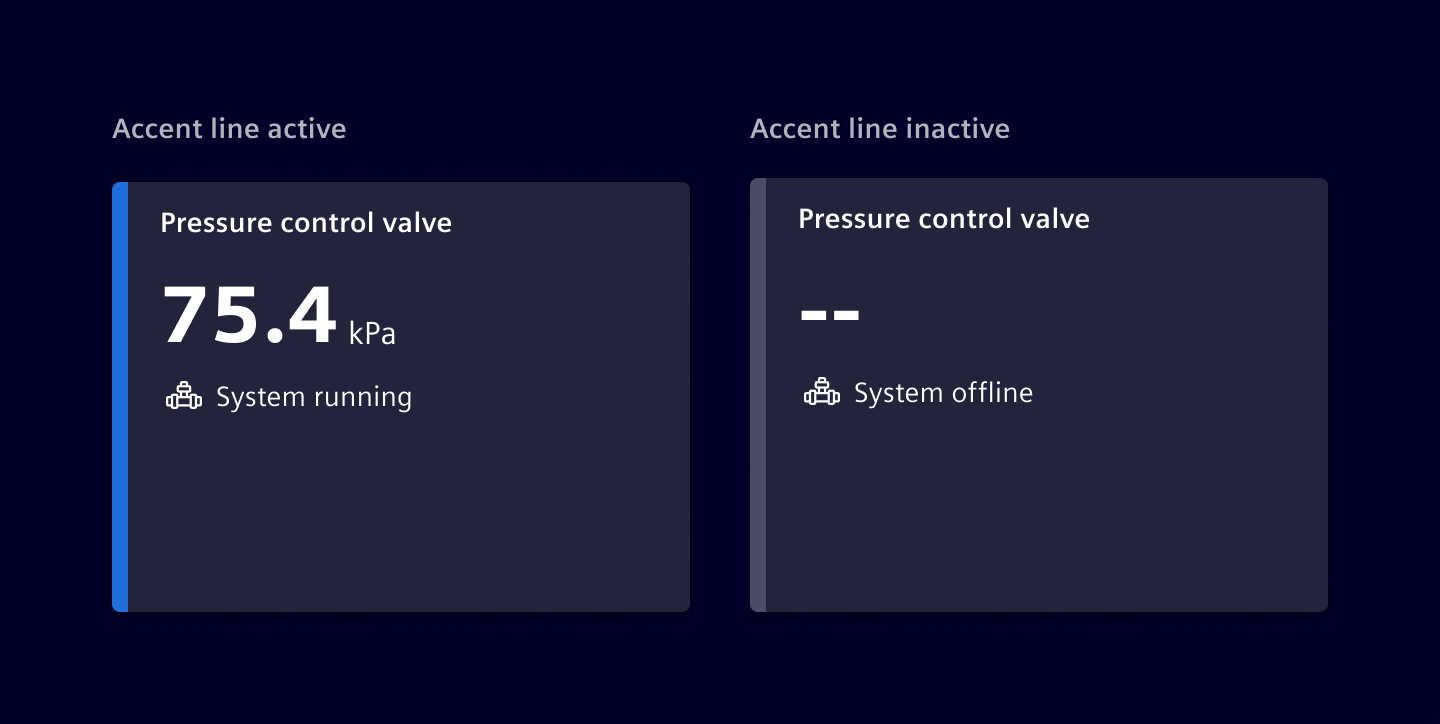

The accent line can also switch to a neutral color. This is useful for special cases where it represents a dynamic state, like showing whether something is on/off or active/inactive.

Ensure the status is not communicated solely through color; pair the line with appropriate text, icons, or other visual cues when needed.

Responsive behavior¶

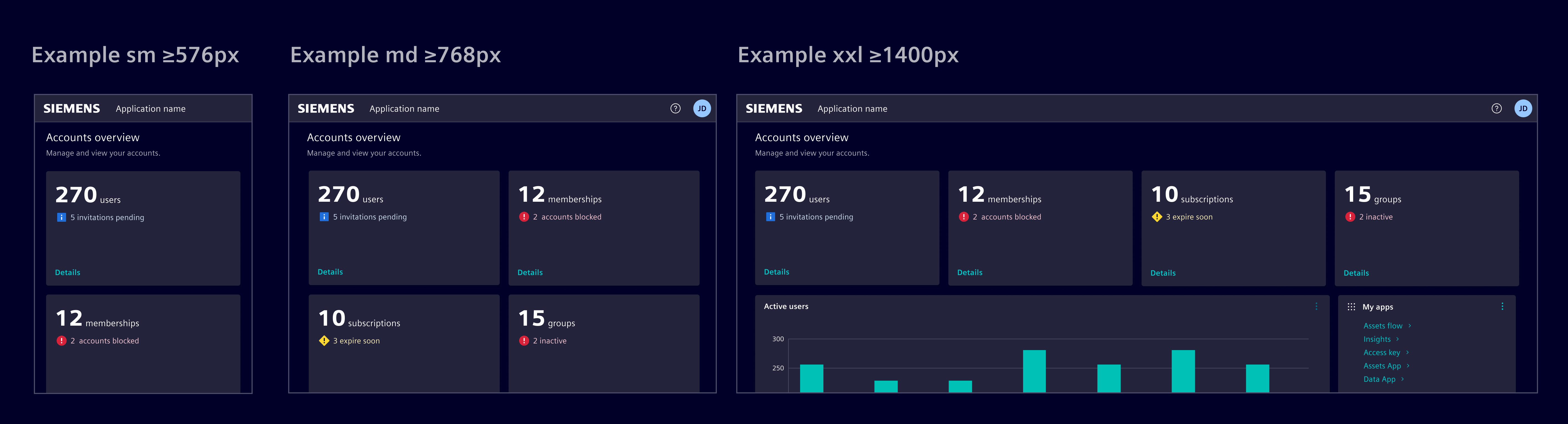

To achieve harmonious layouts, adjust the width of the Value Widget as required, ensuring a consistent height throughout. it's designed to span a minimum of 3 columns and adjusts responsively to screen size changes, with stacking for adaptability.

Code¶

The value widget is implemented by CSS classes and the usage of other Element components.

Component usage¶

To simplify the usage and reduce the code, Element offers a Angular component as wrapper with streamlined inputs.

import { SiValueWidgetComponent } from '@siemens/element-ng/dashboard';

@Component({
  :
  imports: [SiValueWidgetComponent],
  standalone: true
})

SiValueWidgetComponent API Documentation¶

Is a dynamic UI component that not only displays information, but also includes embedded actions which the user can interact with to perform tasks directly related to the card's content. Actions might include editing settings, initiating processes, or deleting resources.

The actionable widget turns data representation into an interactive hub, streamlining the user's tasks and decisions associated with the card's content.

This component is a wrapper using the .si-value-widget CSS classes and the <​si-card​> component. For more configuration options, use the CSS classes directly.

Input Properties¶

CSS class usage¶

For more flexibility and control, use the CSS classes directly in the <si-card> component.

<si-card
    [heading]="'Heading'"
    [primaryActions]="primaryActions"
    [secondaryActions]="secondaryActions"
  >
  <div class="card-body" body>
    <span class="si-value-widget-value">Value</span>
    <span class="si-value-widget-unit">Unit</span>
    <div class="si-value-widget-description text-warning">
      <si-icon icon="element-checked" />
      <span>Description</span>
    </div>
  </div>
  <div class="card-footer" footer>
    <a [siLink]="simplActionLink">Do something</a>
  </div>
</si-card>

Value widget body component¶

The body of the <si-value-widget> is implemented in the component <si-value-widget-body>. You can use it for compositions.

SiValueWidgetBodyComponent API Documentation¶

The body of the <​si-value-widget​> . Useful for compositions.

Input Properties¶

Name	Type	Default	Description
description ¶	TranslatableString		Short description of the value. A description is mandatory to show an icon. Only visible if value is available.
disableAutoLoadingIndicator ¶	boolean	false	Option to disable automatic start of skeleton loading indication.
icon ¶	string		The element icon name. Only visible if value is available.
initialLoadingIndicatorDebounceTime ¶	number	300	Initial delay time in milliseconds before enabling loading indicator. Only used once initially during construction.
showLoadingIndicator ¶	boolean	false	Input to start and stop the skeleton loading indication.
status ¶	EntityStatusType		Show a status icon instead of the icon .
unit ¶	TranslatableString		The unit of the value (e.g. kWh or users). Only visible if value is available.
value ¶	(undefined | TranslatableString)		The main value to be displayed. If no value is set, the skeleton indicates the loading of the value. Disable the automatic loading mechanism by setting SiWidgetBodyBaseComponent.disableAutoLoadingIndicator .

Attributes and Methods¶

Types Documentation¶
