Gauge chart¶

Usage¶

Gauge charts are commonly used to display performance metrics, such as percentage completion, quality scores or to indicate real-time values like temperature or speed.

The chart can be accompanied by color coding to indicate different ranges or thresholds. The gauge shows the value and its position between the minimum and maximum, highlighted with a color that corresponds to the range the value currently falls into.

Best practices¶

• Ensure that the numeric scale used is clear and easy to understand. It's helpful to include the maximum and minimum values, as well as any threshold or target values.
• Color-coding is a useful way to indicate different ranges or thresholds. Choose colors that are meaningful in relation to the data being represented.
• Keep it simple. Gauge charts are best suited for displaying simple, straightforward data.
• If there is a need to represent a crucial system status (e.g: danger, warning or caution) provide additional visual cues, such as text labels or icons, to support accessibility.

Design¶

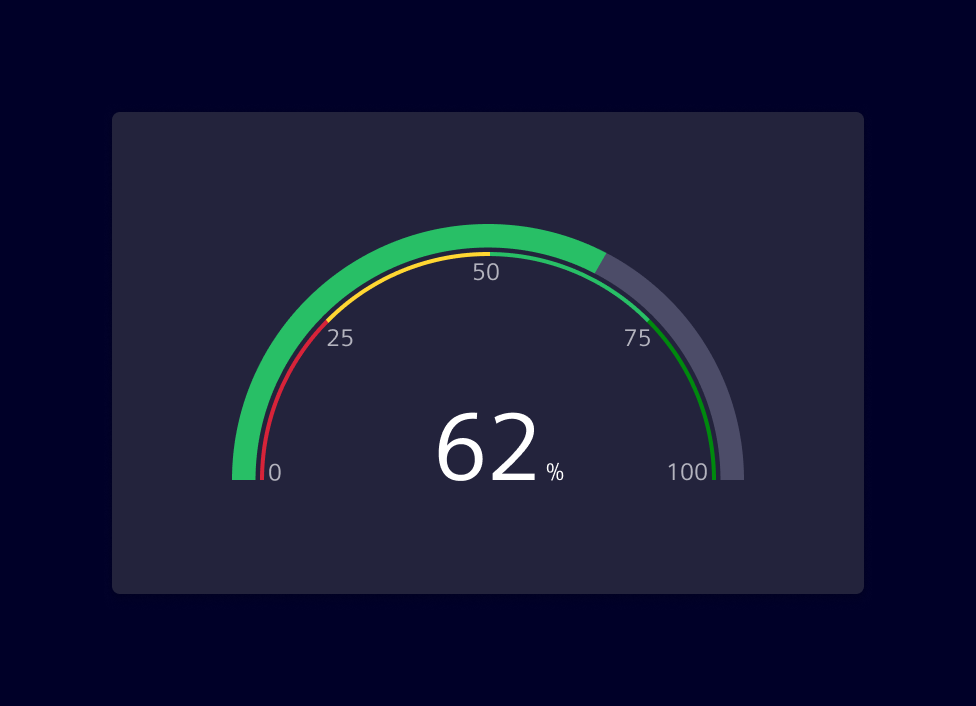

A gauge chart displays data similar to a circle chart, but with a needle or dial to indicate where the data point(s) falls over a particular range.

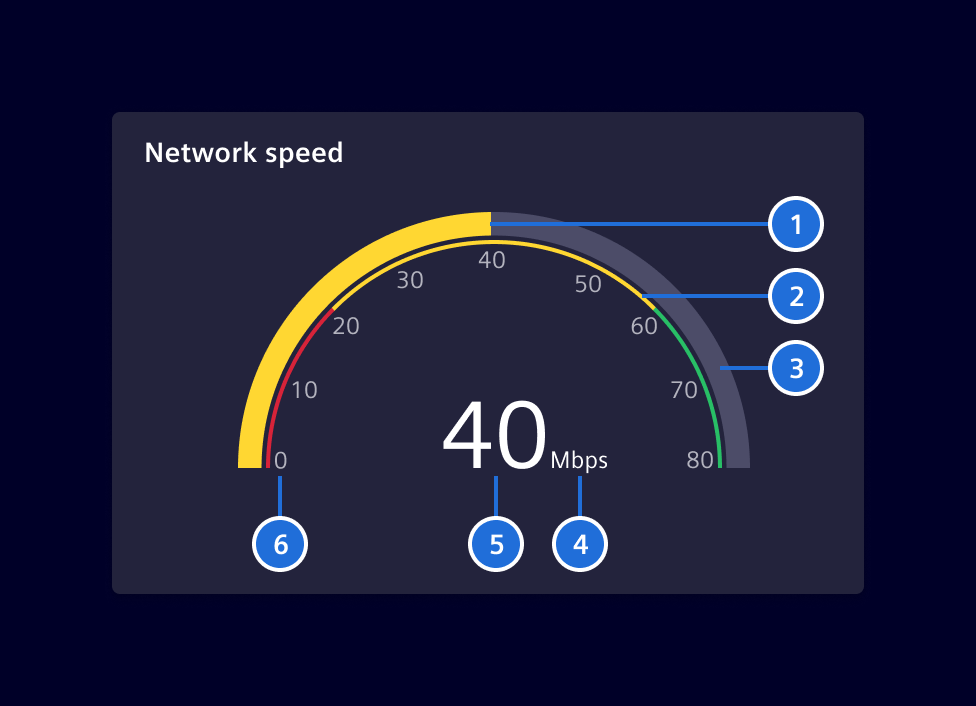

1. Progress, 2. Qualitative Range (Optional), 3. Base, 4. Unit, 5. Value, 6. Scale (Optional)

Code¶

Usage¶

import { SiChartGaugeComponent } from '@siemens/charts-ng';

@Component({
  imports: [SiChartGaugeComponent, ...]
})

SiChartGaugeComponent API Documentation¶

Input Properties¶

Name	Type	Default	Description
additionalOptions ¶	EChartOption		Used to override specific properties set in options .
autoZoomSeriesIndex ¶	number	-1	No auto dataZoom update) by default. Use together with visibleEntries .
axisNumberOfDecimals ¶	number	0	Number of decimals on the axis.
axisPointer ¶	(undefined | string | boolean)	false	Used to display axisPointer line either by click or mouse-move.
colors ¶	string[]		Colors for the defined segments. If there are less colors then segments, the colors will be repeated. Defaults to the standard color palette
customLegendAction ¶	boolean		Enable custom legend click actions exposed by the selectionChanged event.
dataZoomFilterMode ¶	FilterMode	'none'	The data zoom filter mode. (see https://echarts.apache.org/en/option.html#dataZoom-inside.filterMode ) The value 'filter' will cause the lines to be disconnected to the outside of the chart.
dataZoomMaxValueSpan ¶	number		The upper limit of the data zoom slider (see https://echarts.apache.org/en/option.html#dataZoom-slider.maxValueSpan ).
dataZoomMinValueSpan ¶	number		The lower limit of the data zoom slider (see https://echarts.apache.org/en/option.html#dataZoom-slider.minValueSpan ).
dataZoomRange ¶	DataZoomRange		Apply a specific zoom range (see https://echarts.apache.org/en/option.html#dataZoom-inside ).
eChartContainerHeight ¶	(null | string)		The height of the ECharts container as decimal.
externalXAxisFormatter ¶	(value: any, visibleRange: number) => string		External XAxis Formatter from consumer
externalZoomSlider ¶	boolean	false	Flag to use external zoom slider
hideAxisLabels ¶	boolean	false
labelFormatter ¶	(val: number) => string		Custom formatter for axis labels. Takes precedence when specified, i.e. number of decimals, unit etc needs to be set by the user using this formatter.
maxEntries ¶	number	1000	Maximum number of series data points shown in the chart.
maxNumberOfDecimals ¶	number	0	Max number of decimals.
maxValue ¶	number	100
minNumberOfDecimals ¶	number	0	Min number of decimals.
minValue ¶	number	0
options ¶	EChartOption		See [ECharts 5.x Documentation] https://echarts.apache.org/en/option.html for all available options.
palette ¶	string	undefined	The name of the color palette (if any) of the loaded theme .
renderer ¶	("canvas" | "svg")	'canvas'	the renderer to use: canvas or svg
responsiveSplitSteps ¶	boolean	true
segments ¶	number[]	[0.2, 0.8, 1]	Segments on the arc from 0 (implicit) to 1 (explicit) E.g. 0.2 means from 0 to 0.2 of the possible range (maxValue - minValue)
selectedItem ¶	SelectedLegendItem	{ legendItemName: '' }	Specify selected legend item.
showCustomLegend ¶	boolean	false	Enable to show a custom legend. The custom legend offers additional features such as, scroll bar to avoid legend and chart overlapping, Left and right alignment of legends based on y-axis, etc and many more.
showLegend ¶	boolean	true	Show Echarts legend
splitSteps ¶	number
subTitle ¶	string		The subtitle of the chart.
theme ¶	any		The desired theme to load.
themeCustomization ¶	any		Used to override specific options of loaded theme .
title ¶	string		The title of the chart.
unit ¶	string	'%'
unitsOnSplit ¶	boolean	false
value ¶	number	0
valueFormatter ¶	(val: number) => string		Custom formatter for value. Takes precedence when specified, i.e. number of decimals needs to be set by the user using this formatter.
visibleEntries ¶	number	-1	No auto dataZoom update) by default. Use together with autoZoomSeriesIndex .
visibleRange ¶	number	-1	No auto dataZoom update) by default. Use together with autoZoomSeriesIndex .
zoomInside ¶	boolean	false	Enables zooming inside the chart with the mouse wheel/touch. Whether zooming inside the chart is possible with mouse.
zoomSlider ¶	boolean	false	Enables the zoom slider below the chart.
zoomSliderBrush ¶	boolean	true	enable brush mode for zoom slider
zoomSliderRealtime ¶	boolean	true	realtime update mode for zoom slider
zoomSliderShadow ¶	boolean	true	Shows data shadow in dataZoom slider, use together with zoomSlider .
numberOfDecimals ¶	number	undefined	Sets the number of decimals. Deprecated: Use minNumberOfDecimals and maxNumberOfDecimals instead.
showTimeRangeBar ¶	boolean	false	If true, add consumer-provided time range bar. Use together with zoomSlider . Deprecated: The input will be removed in future versions as the time range bar slot is deprecated.
