Charts¶

Usage¶

The first step to select the correct type of chart is to understand the type of data, use context and functionality of the chart.

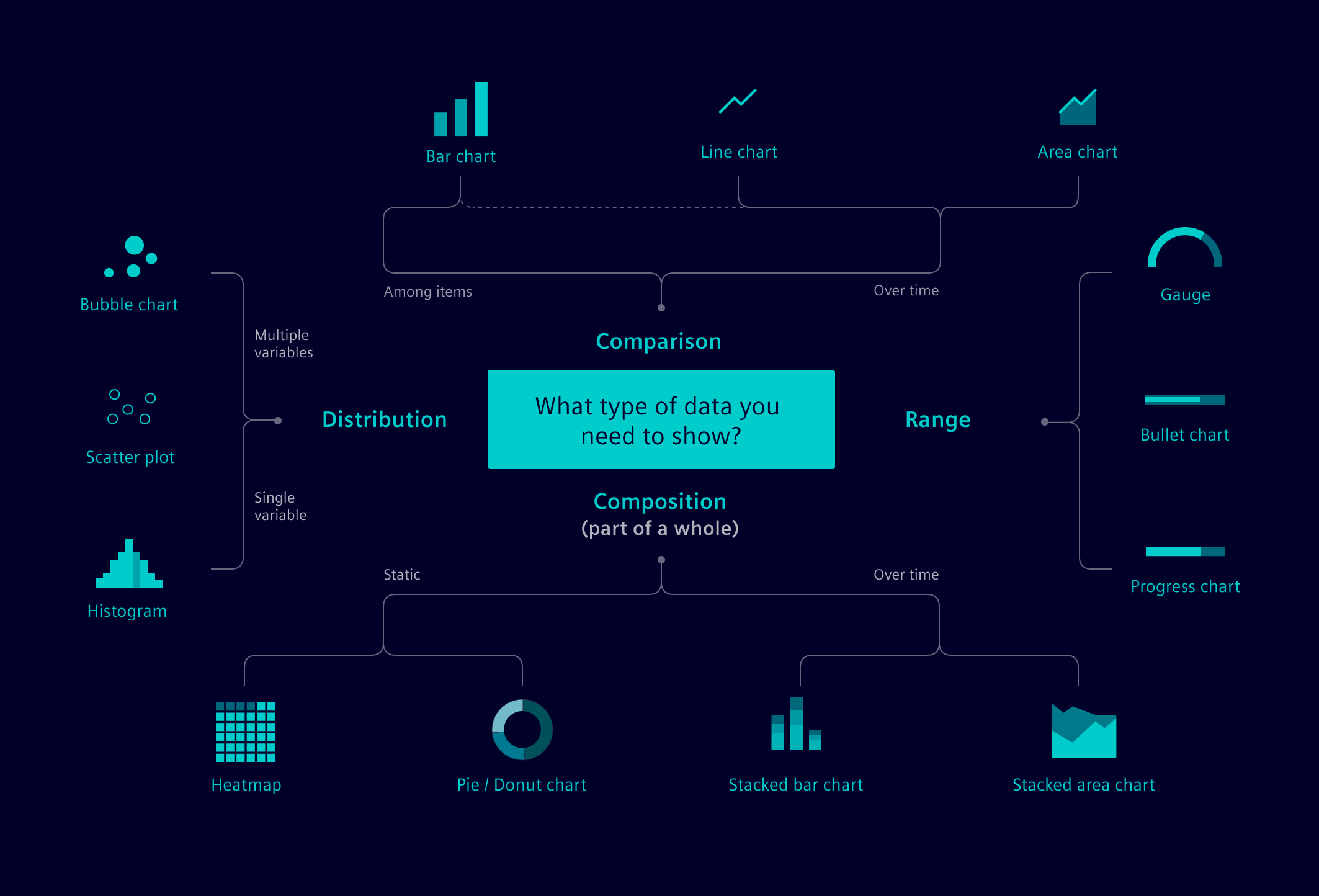

Please take in consideration what do you want to communicate to the user and select the chart based on your analysis. The following graphic is a suggested chart usage. Use good judgement to select the best representation for the data available.

• Range

  • Gauge Chart
  • Bullet chart
  • Consumption chart

• Comparison

  • Bar Chart
  • Line Chart
  • Area Chart

• Distribution

  • Bubble Chart
  • Scatter Plot Chart
  • Histogram

• Composition

  • Heatmap
  • Pie/Donut Chart
  • Stacked Bar Chart
  • Stacked Area Chart

There is also a Generic Chart which provides full flexibility by supporting all ECharts options.

More examples can be found in our playground by filtering for si-charts.

Axis and Labels¶

The axis and labels of a chart are crucial to provide context and structure to the data being displayed. Use clear, concise and accurate metrics to reflect the information.

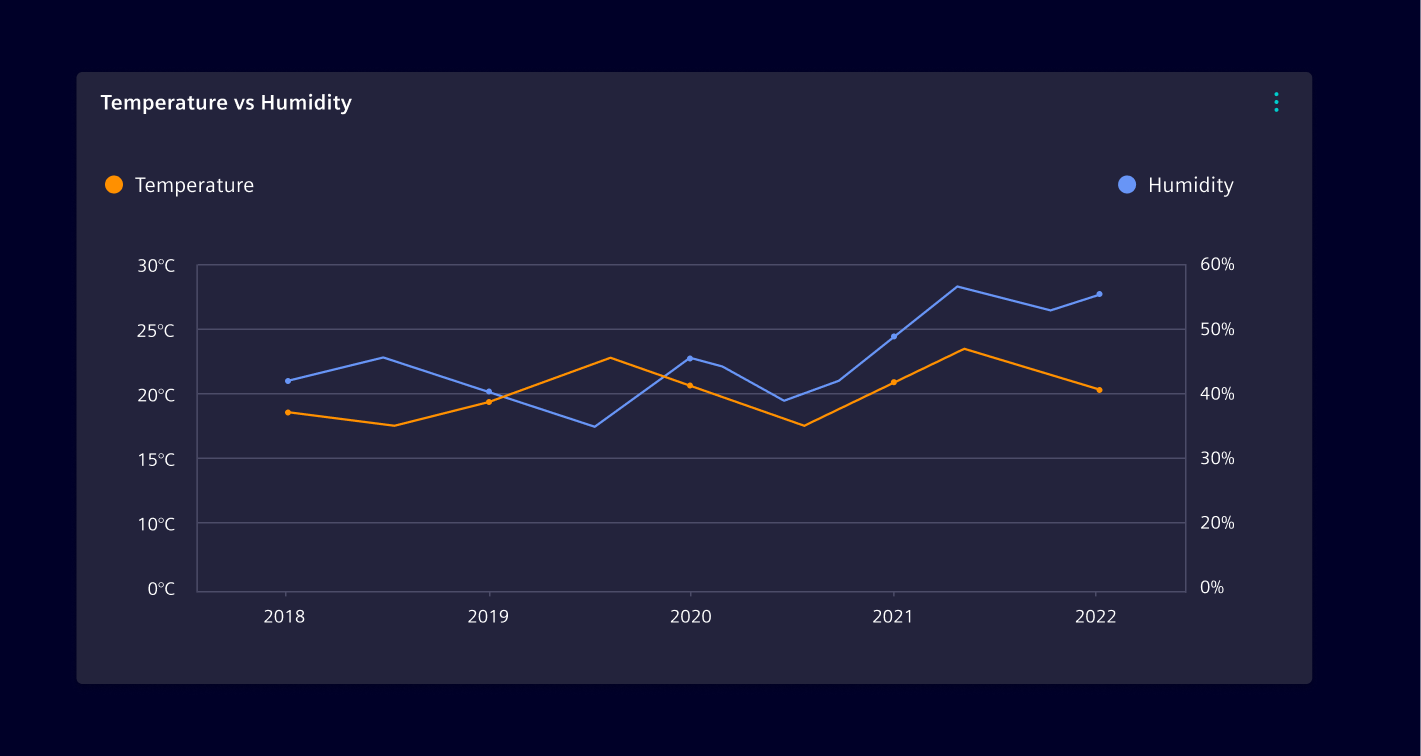

Up to two axis can be shown on a chart if needed. In this case, both axes should be scaled consistently to ensure accurate comparison. Be mindful about using two axis since they are more complex and difficult to interpret than single axis charts.

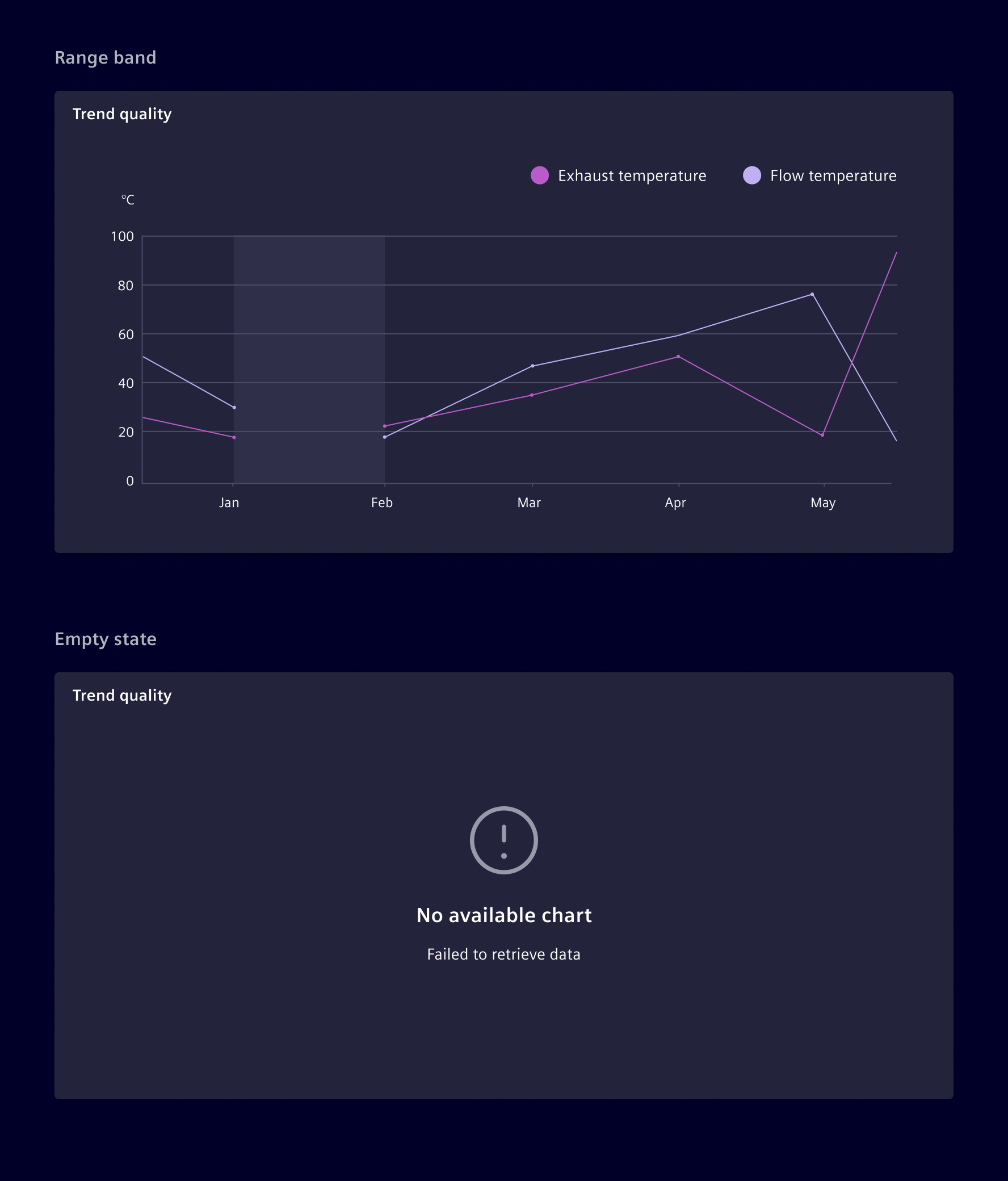

Missing Data¶

Use a range band to represent instances where there is no data available for a specific time period.

Use Empty State if the data cannot be retrieved for the whole chart.

Legends¶

Legends are a key or explanatory notes that add context and meaning to data represented within the chart.

The legends are positioned at the top right of the chart. Depending on the context, it's possible to position the legends at the right bottom or right to the graph.

• When possible, order the items in the legend to match the order of the data in the chart.
• Avoid using a legend if there is only one category of data.

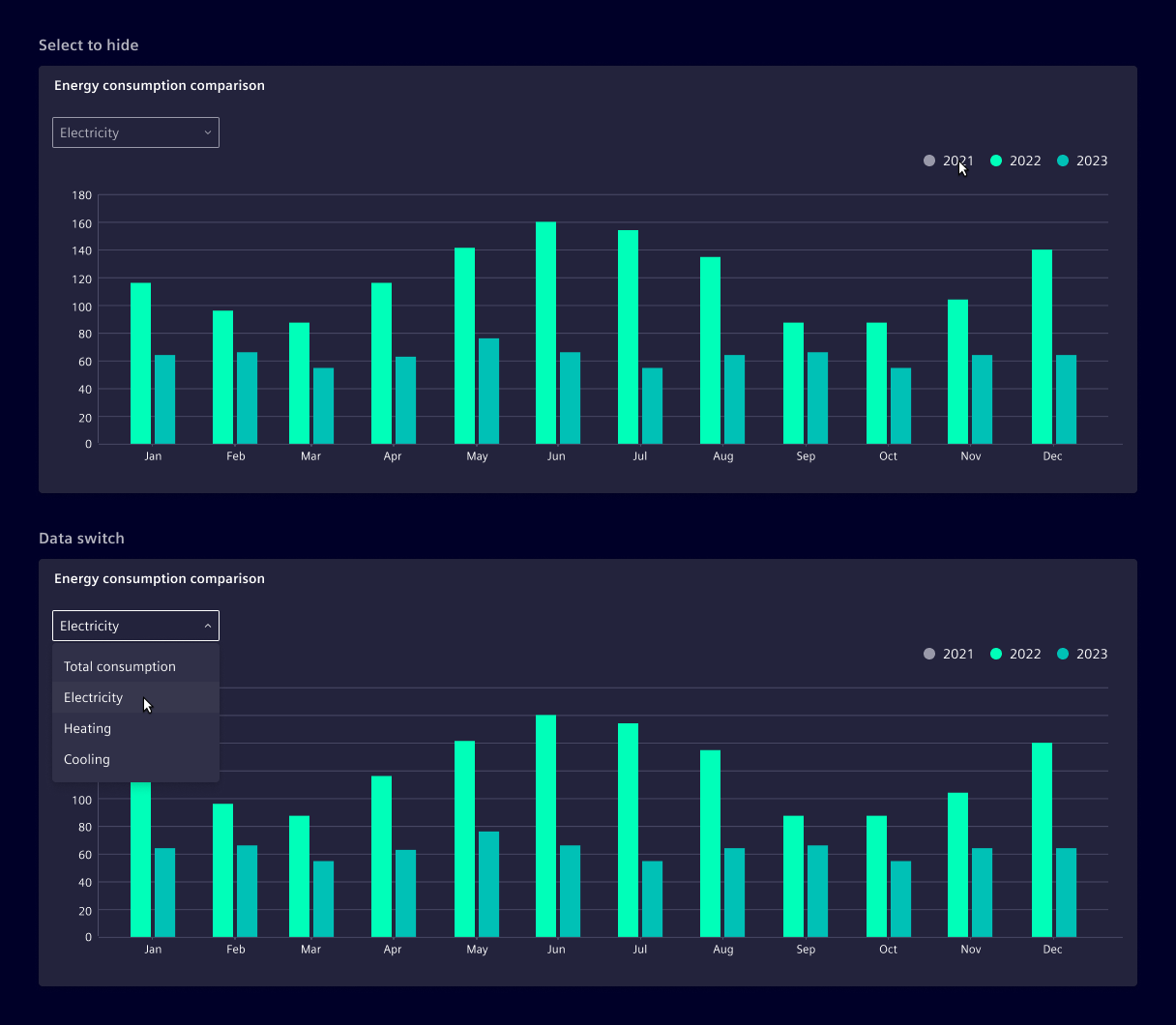

Interactions¶

Select to Hide¶

Data series can be hidden/shown by selecting the corresponding legend.

Data Switch¶

If needed, use a Select component to allow the user to switch between different data sets or representations within the same chart.

Theming¶

There is no support for CSS styling. Element Charts uses EChart themes with options defined as a simple JS object (no JSON). It is possible to load/register a theme for each chart separately or to load a default theme for everything. Be aware that if no theme is loaded, all styles of your charts are set to the default styles of ECharts itself.

The desired default theme can be loaded anywhere in your project like this:

import { themeSupport } from '@siemens/charts-ng';
import { themeNameA } from 'your/theme-a';
import { themeNameB } from 'your/theme-b';

themeSupport.registerTheme(themeNameA);
themeSupport.registerTheme(themeNameB);

themeSupport.setDefault(themeNameA);

themeNameA or themeNameB correspond with the name of the imported JS objects.

For further details to define your own theme see also element.ts as a reference.

Resizing¶

Charts do have a static size, assumed during their initial rendering and are not automatically refreshed in case their parent container changes size. It is the responsibility of a consuming application to invoke a re-draw if such an event occurs. Such a re-draw can be initiated by using the resize() function, exposed by the component.

The easiest way to detect such a size-change event is by using Element's siResizeObserver, which will invoke an action, if the attached DOM element changes size. Combining those two aspects leads to following example, which takes care of all re-sizing and re-drawing aspects:

<si-chart
  #chart
  (siResizeObserver)="chart.resize()"
  [options]="options"
></si-chart>

Note: This pattern is not only handy in case of a resize scenario but could actually be required in some cases to see any data at all. If a chart is getting initialized while it's not visible, wrong size values could lead to a blank component. Such scenarios include shadow DOMs, as it's the case with Ionic components.

Minimum chart height¶

The charts have a defined minimum height of 200px. In edge cases where this is too small, the minimum can be overridden with the CSS variable --si-chart-min-height.
